3.3 Controller connection information
SDA-04

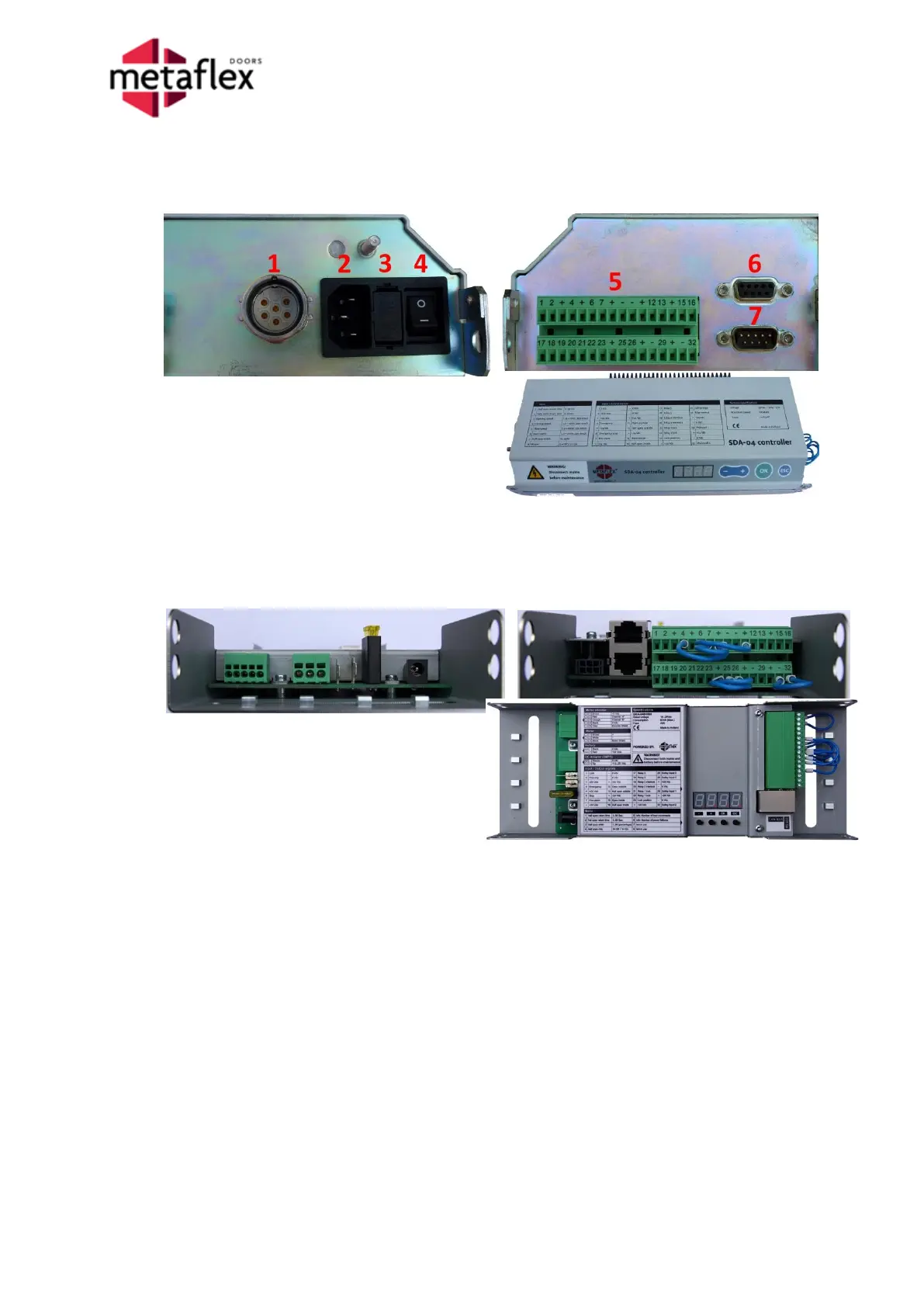

Legend
1. phase motor connector
2. Mains inlet
3. Fuse holder
4. On-off switch
5. Input and output control
6. RS-232 port (to be made use of by MDE/Distributor technician)
7. AC Motor pulse generator connector
SDA-04DCB2
1 2 3 4 5 6 7 8
Legend
1. DC Motor pulse generator connector
2. DC Motor power connector
3. Battery connectors
4. Fuse 20A
5. DC power connector
6. RS-232 port (to be made use of by MDE/Distributor technician)
7. CAN Bus interface
8. Input and output control
