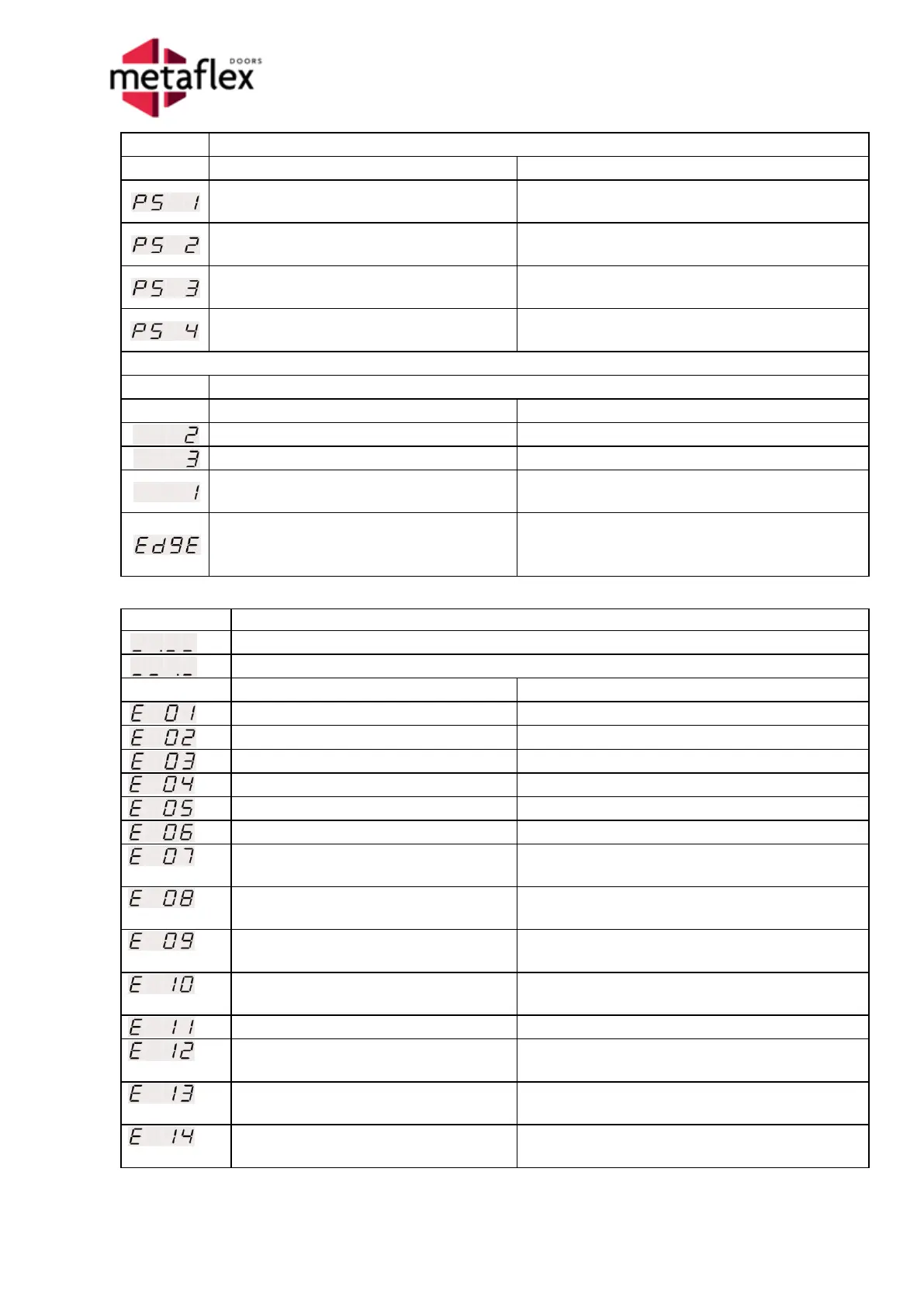

Installers manual 10.03.02-R03 (201058) EN SDA-04 (SW 5.xx) - SDA-04DCB2 (SW 22.00) Page 36 of 55
Safety 1 (AIR, not rail side)
(Input 29): Remove the object from the
detection zone
Safety 2 (AIR, rail side)
(Input 32): Remove the object from the
detection zone
Safety 3 (AIR3, rail side)
(Input 25): Remove the object from the
detection zone
Safety 4 (AIR4, sliding space)
(Input 26): Remove the object from the
detection zone
Safety 2 active (1st AIR)
AIR1-beam is broken (Input 29)
Safety 3 active (2nd AIR)
AIR2-beam is broken (Input 32)
Safety list operated, obstacle removal by ruler
(input 25)
Self-monitoring safety system or sliding
space security
Repair safety list or remove obstruction (Input
26)
Hardware-related messages
SDA-04AC with 90 Watt AC motor at rest, no current activities and/or errors
SDA-04AC with 370 Watt AC motor at rest, no current activities and/or errors
Controller low voltage fault
Check mains supply - reset
Controller high voltage fault
Check mains supply - reset
Current surge or short circuit to earth
Replace controller and/or motor
Motor overloaded, mechanical check
I²T motor frequency regulator
Controller overloaded, mechanical check
Motor temperature too high
Temperature controller too high
No parameter setting/EEPROM or
teaching-in error
Reset controller / Call service
Toothed belt broken or extreme
structural opening width
Fault during teaching-in process
Reset controller, check mechanical adjustment
of door
Check connector / change the motor
Check safety sensor or that
for parameter 63 value 5 or 6 is enabled
Motor resistance does not match
90/370W
Controller setting is incorrect or motor is
defective, call the service departent
Warning: Frequency regulator
temperature too high
Allow controller to cool down
