Metallisation MK 73 - System Breakdown and Components

Page 17 of 64
2.2 Breakdown

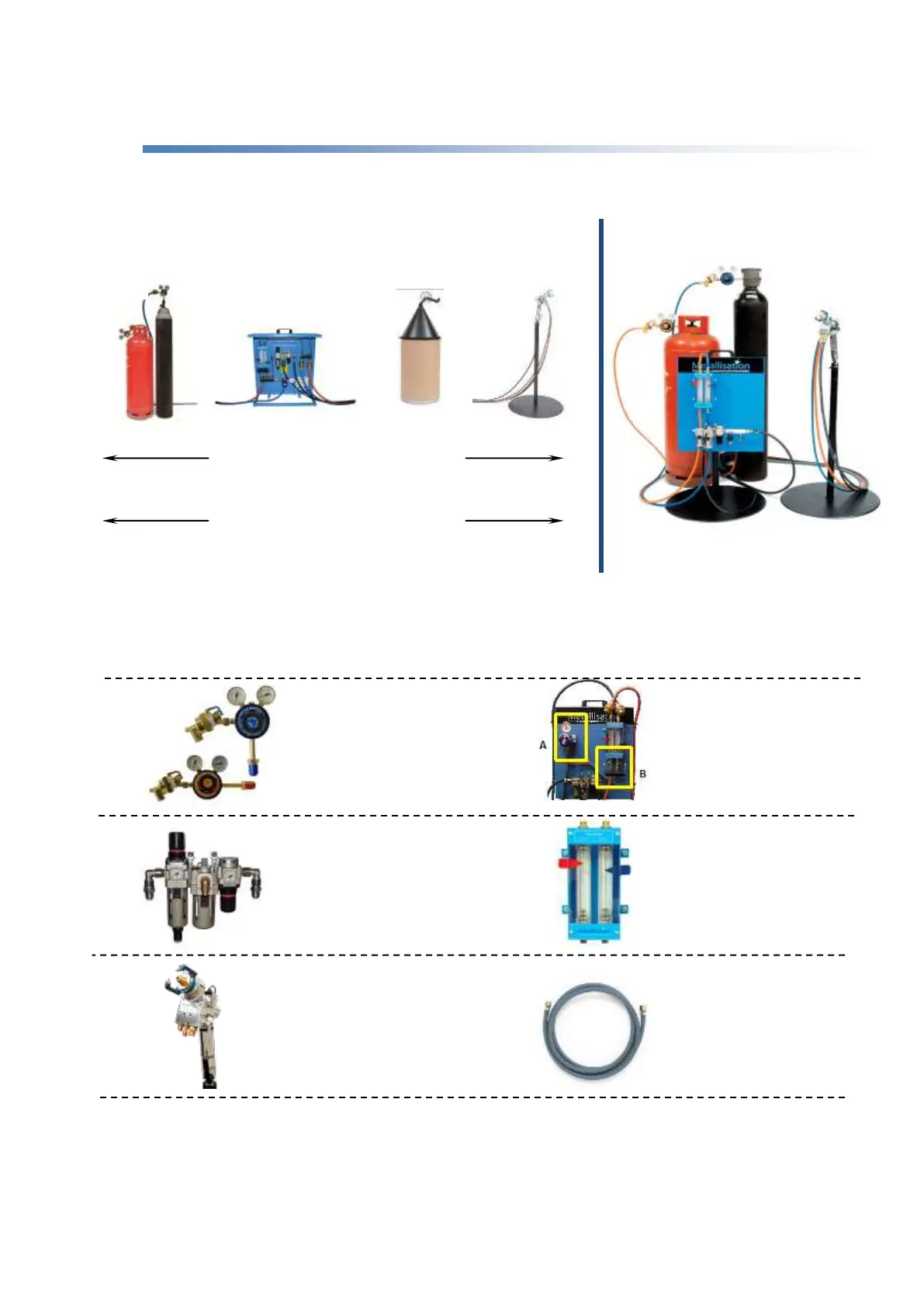

Here are the typical system configurations for the Metallisation MK73 Flame Spray
system:
Individual Components:
NB: Cylinders not supplied
NOTE: Also Available is the Metallisation Extension Nozzle, equipment specification available
upon request
The Pistol
(Section 2.2.1)
Air Filtration &
Regulation Unit
(Section 2.2.3)
Pressure Regulators
& Flashback Arrestors
(Section 2.2.4)
Maximum 20m from cylinders
to pistol with 1/4” ‘short’ hoses
1
3
5
1
2, 3 & 4
Flowmeter
(Section 2.2.2)
FlowMeter Board
(Section 2.2.5)
2
4
5
Maximum 40m from cylinders to
pistol with 3/8” ‘long’ hoses
Supplies Pack
(Section 2.2.6)
6
6
3m standard
6m standard
