Metallisation MK 73 - Diaphragm Valve

Page 54 of 64

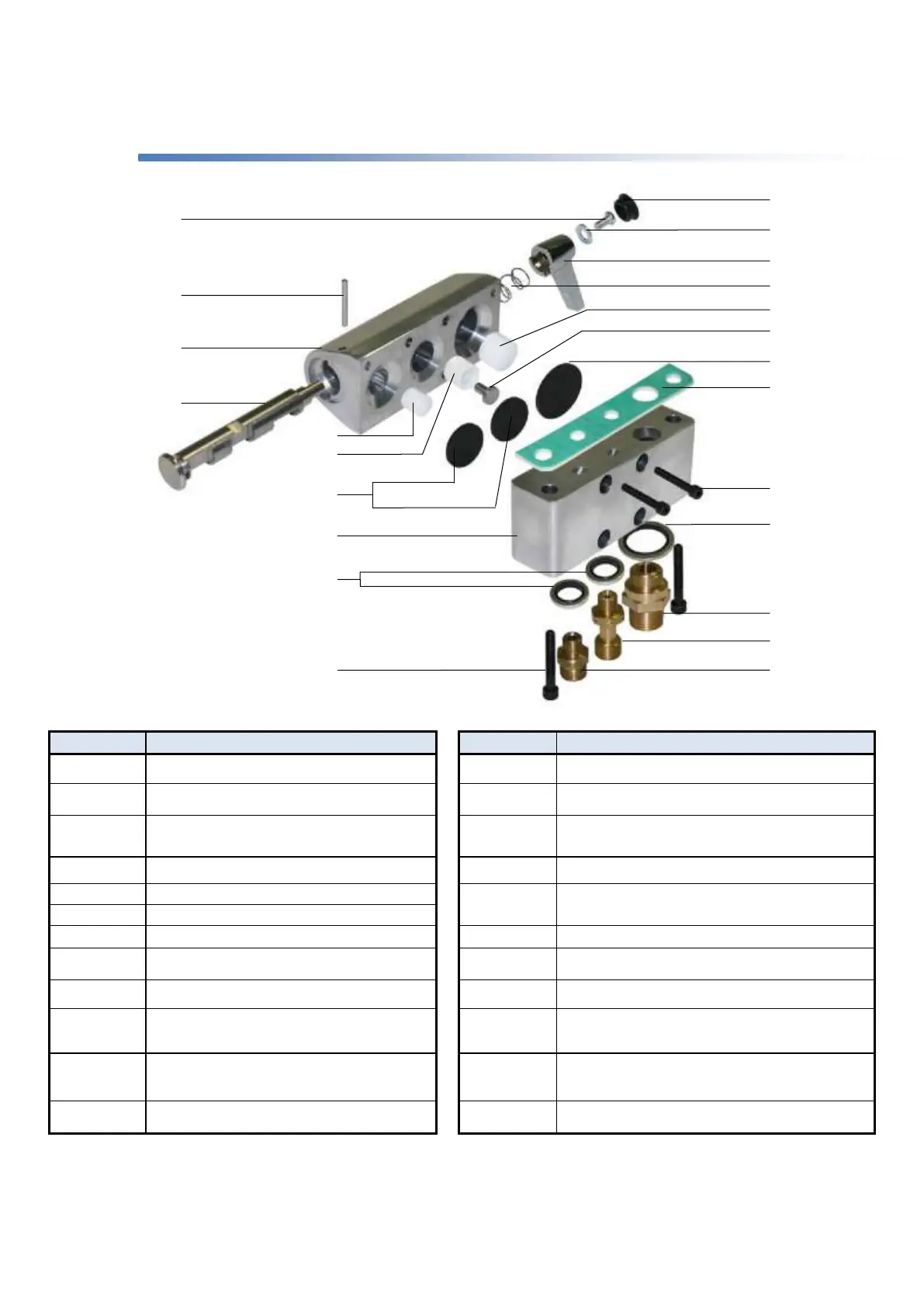

7.2 Diaphragm Valve
Parts Tables:
PART NO.
DESCRIPTION
PART NO.
DESCRIPTION
1028
Gasket
1206
Cam Lever
1031
Seal
1207
Cam Lever Dowel
1033/35 /
28077
Seal / Soft Copper Washer
1209
Lever Return Spring
1036
Diaphragm Housing Screw
1210
Valve Lever Screw
1038
Valve to Gas Head Fixing Screw
1211
Valve Lever Plug
c/ O-Ring Assy
1039
Valve Diaphragm (Air)
1040/41
Valve Diaphragm (Gas/Oxygen)
1212
Gas Plunger
1042
Air Plunger
1213
Gas Pilot Plunger
1044
Oxygen Plunger
1216 / 1223
Air Union / Air Union (Pistol) for 3/8" hoses
1201 /1220
Diaphragm Housing – Propane / Diaphram
Housing (Propane) for 3/8" hoses
1217 / 1222
Gas Union / Gas Union for 3/8" hoses
1203
Cam Spindle Housing
1218 / 1221
Oxygen Union / Oxygen Union for 3/8" hoses
1204
Cam Spindle - Propane
6526
Washer
1204
1203
1209
1206
6526
1210
1211
1038
**1201 / 1220
**1033/35 / 28077
1031
1036
1207
**1218 / 1221
**1217 / 1222
**1216 / 1223
1039
1028
1040/41
1042
1044
1213
1212
**NB: For systems using the Long Extension supplies ie: Gas73L-1/8 and Gas73L-3/16 the Diaphragm Housing
Part Numbers vary and are shown in BOLD.
