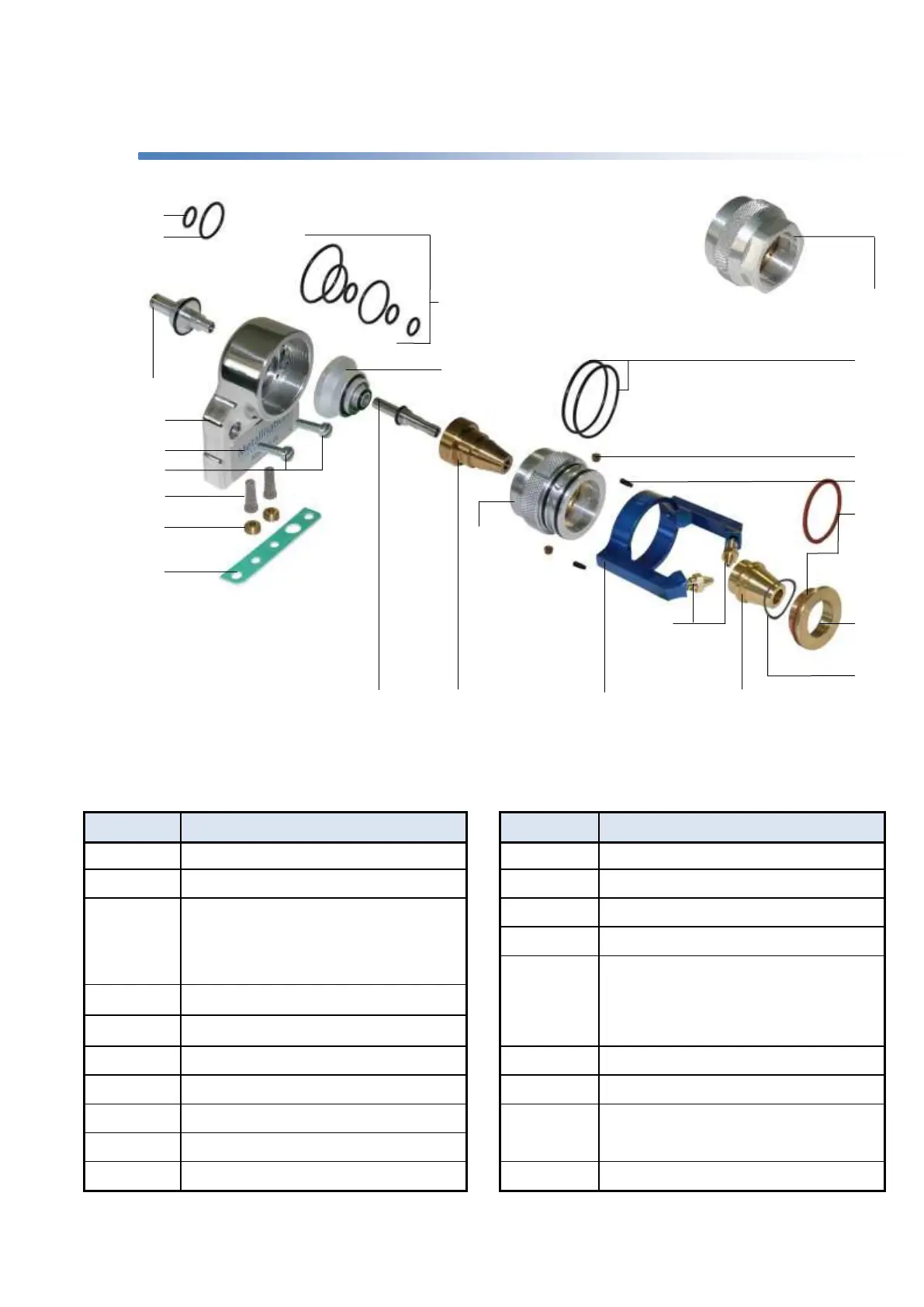

7.1 Gas Head & Spreader Nozzle
Common Parts Tables:
PART NO.
DESCRIPTION
PART NO.
DESCRIPTION
1003A
Retaining Screw
1063
Air Cover - Spreader
1007
‘O’ Ring
1065
Cork Seal
10073S
MK73 Mixing Block ‘O’ Ring Set
Comprising: 1009, 1008, 1007, 1013,
1007 & 1432
1066
‘O’ Ring
1250
Gas Head
1250-73
MK73 Gas Head Fitted with Filters &
Nameplate
1008
‘O’ Ring
1017
Air Cover
1024
Flexible Spacing Washer
1253
Spreader Jet
1025
Fibre Washer
1254
Lock Ring
1027
Filter
1258
Label Mark 73
1028
Gasket
1029
Gas Head Fixing Screw
6021
Modified Grub Screw
1250 / 1250-73
1027
Front Wire Guide
1003A
1028
1029
Screwed Insert
Nozzle Shell
1025
1066
1007
1008
1065
6021
Mixing Block
Spreader Ring
1253
1063
Air Nipple
1254
1017
Non Spreader Air Cover
10073S
‘O’ Ring Set
1258
1024
