5.4 Connecting the propeller stirrer (depending on the
product version)
The 916 Ti‑Touch is equipped with a built-in magnetic stirrer or a built-in
stirrer connector, depending on the product version. You can connect the
802 Stirrer propeller stirrer to the stirrer connector.
NOTICE
Before the rod stirrer is connected, the electrode holder with the clamp-
ing ring must be mounted on the support rod, see (see chapter 5.3,
page 14).
Proceed as follows:
1
Plug in the connection cable of the 802 Stirrer propeller stirrer to the
stirrer connector of the Ti‑Touch (2-11).

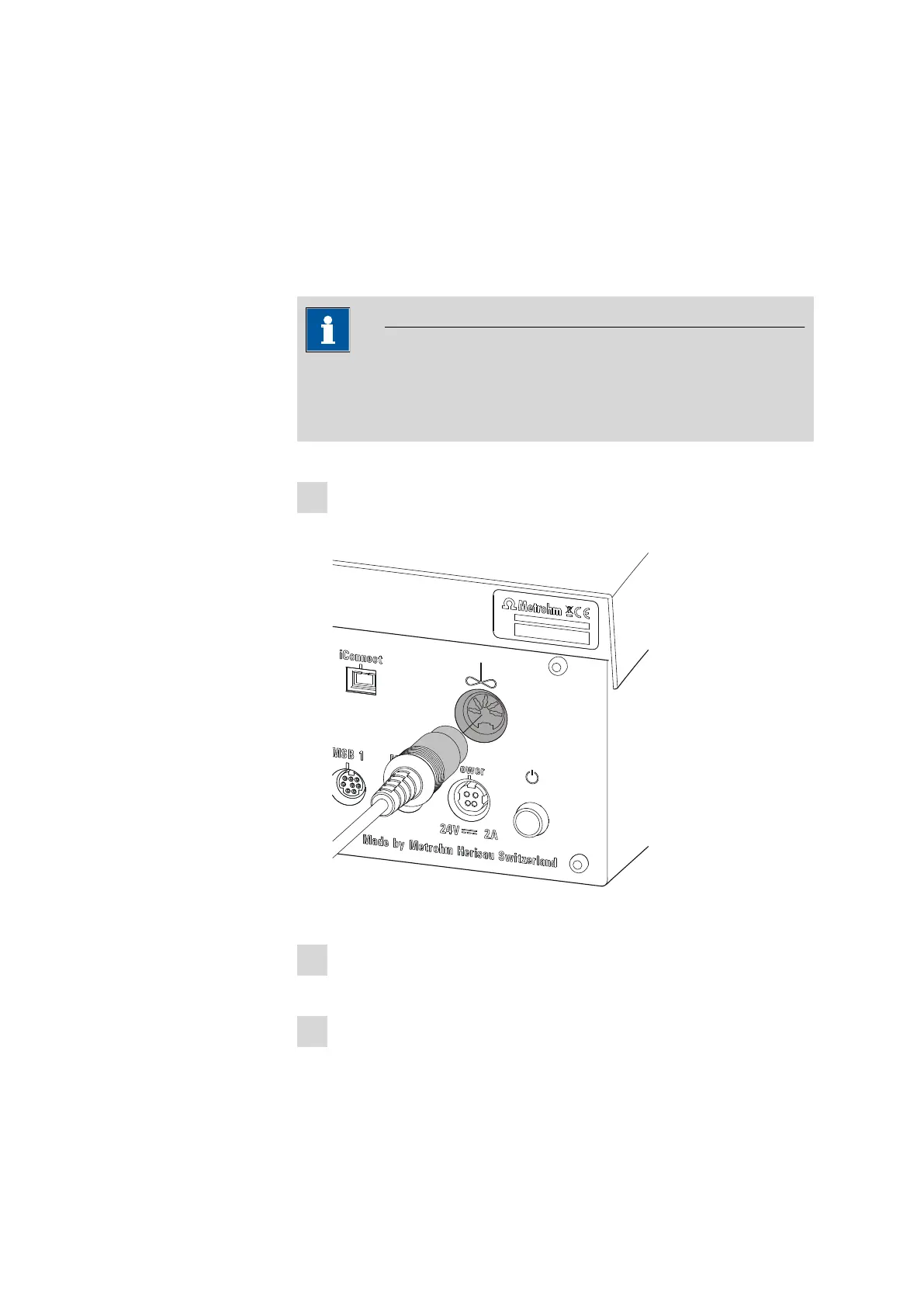

Figure 4 Connecting the propeller stirrer
2
Insert the propeller stirrer 802 Stirrer without the stirring propeller
from above into the center opening of the electrode holder.
3
Plug the stirring propeller (6.1909.010) from below to the propeller
stirrer.
