5 Installation
916 Ti‑Touch
￭￭￭￭￭￭￭￭
17
NOTICE
When connecting MSB devices together, the following must be
observed:
￭ No additional stirrer may be connected to the MSB 1!
￭ Only one device of the same type may be used at a single MSB con-
nector at one time.
￭ When making the connection, take care to ensure that the flat part
of the MSB plug marked with arrows is pointing in the direction of
the marking on the MSB connector (see figure 6, page 17).

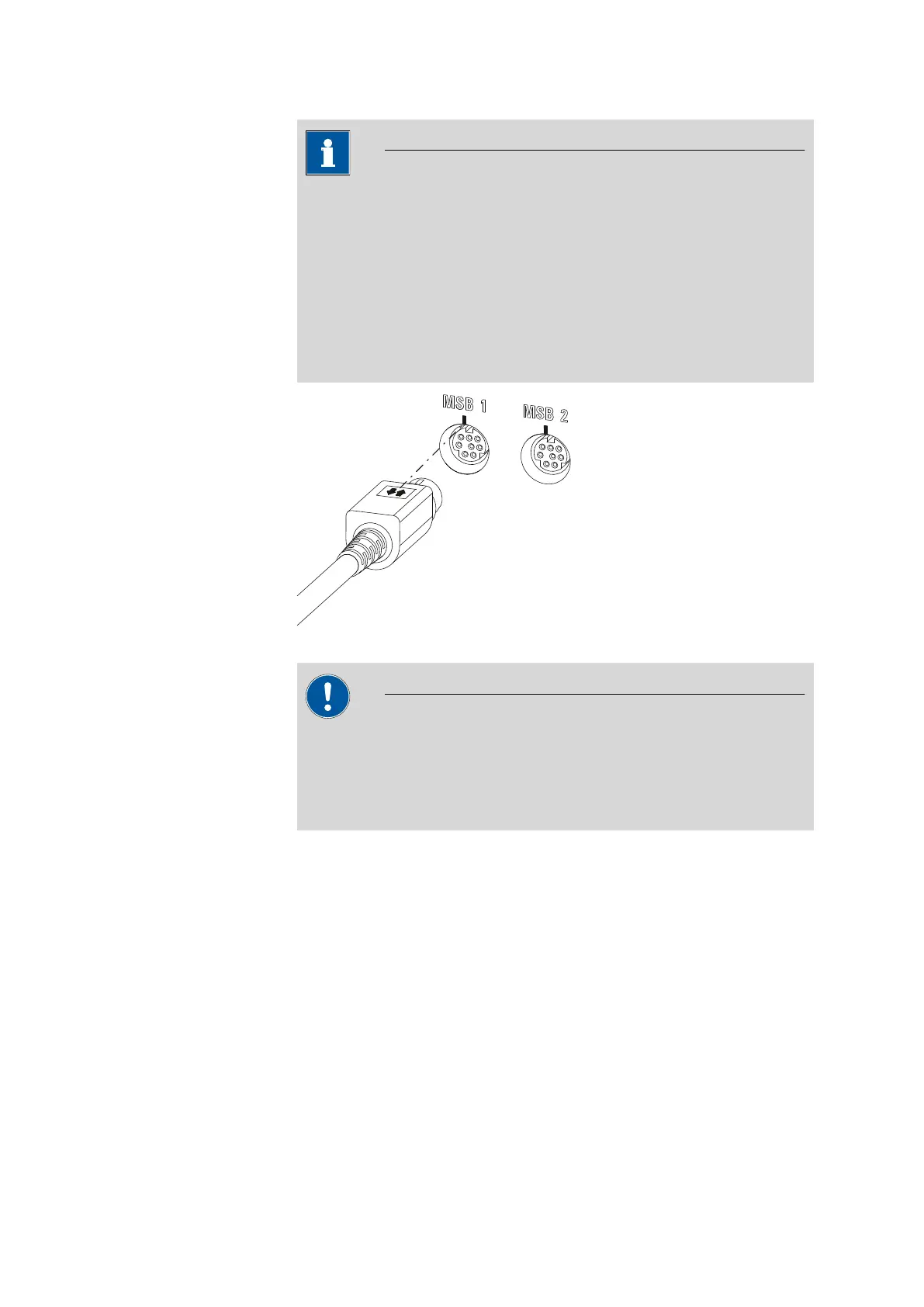

Figure 6
MSB connector
CAUTION
Switch off the Ti‑Touch before you plug in MSB devices. When it is
switched on, the Ti‑Touch automatically recognizes which device is con-
nected to which MSB connector. The connected MSB devices are
entered automatically in the device manager.
MSB connections can be extended with the 6.2151.010 cable. The maxi-
mum connection length permitted is 6 m.
5.5.1 Connecting a dosing device
You can connect two dosing devices to the Ti‑Touch.
The types of dosing devices that are supported are:
￭ 800 Dosino
￭ 805 Dosimat
