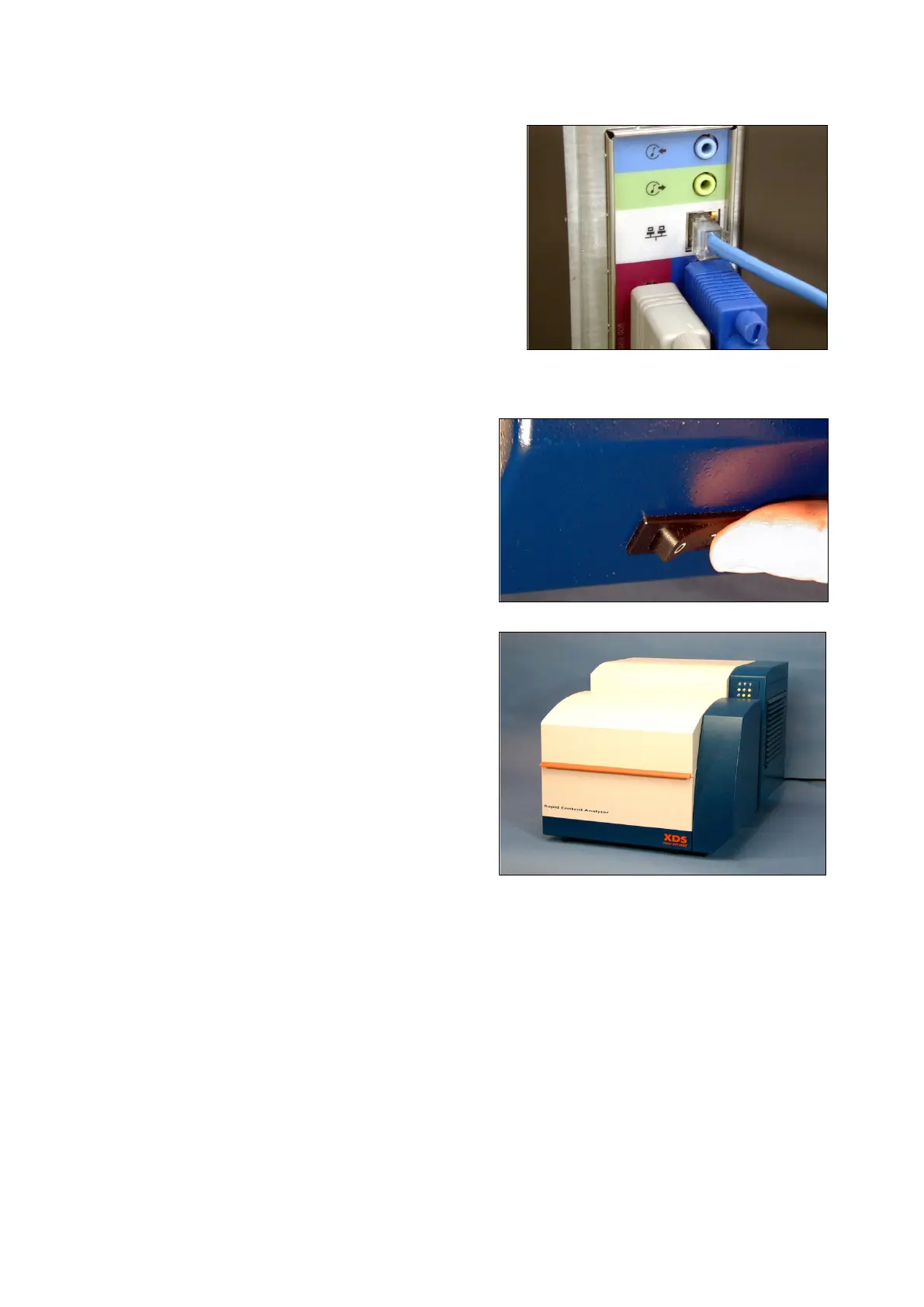

If using a network, use a non-crossover type
cable as listed in section 3.0. Plug the RJ-45
network connector into a functional network
port.
If this requires approval from a network
administrator, it should be properly approved
for hookup.
For “Direct Connection” the gray cable from the
instrument plugs directly to the computer
network jack. (Use the cable supplied with the
instrument.)
When all the above assembly is finished,
turn on the power switch on the
monochromator. It is located on the lower
surface, on the right-hand side as shown.
The monochromator performs some
initialization tests, which take a moment.
Some noises will be heard as items find their
initial positions. This is normal.
Prepare to establish communication from
Vision to the XDS instrument. This is
detailed in Section 6.0, Vision Software.
This completes assembly of the MultiVial Analyzer.
