30

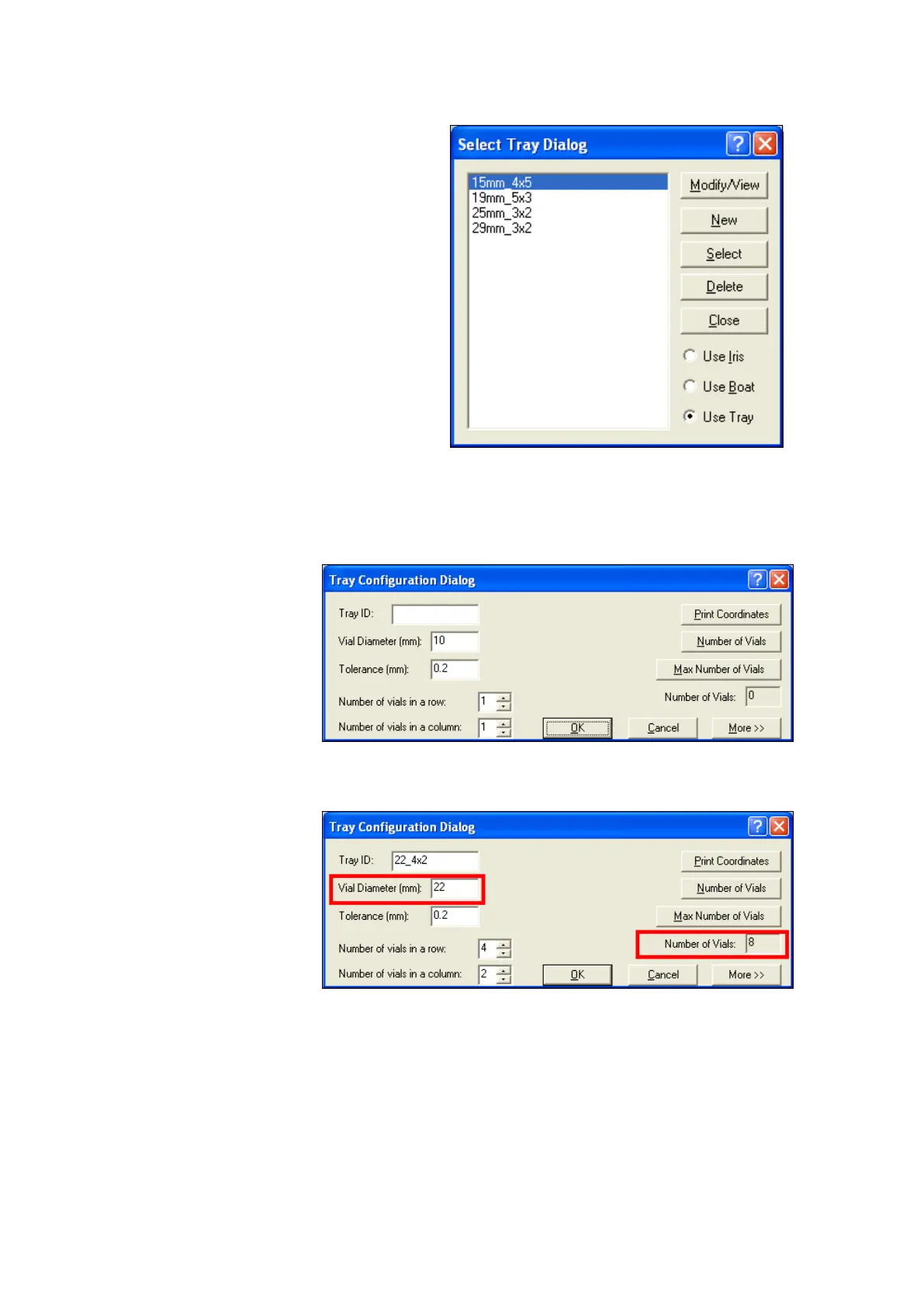

At the Select Tray Dialog box, note that four
sizes (vial diameters) are already loaded in
Vision. (Other sizes may be added over time.)
NOTE: The spot size (set in the Data Collection
Method) should be no larger than 80% of the
vial diameter. For each default vial size, set spot
size as follows:
• 15mm vial: 12mm spot size
• 19mm vial: 15mm spot size
• 25mm vial: 17.5mm spot size
• 29mm vial: 17.5mm spot size
If your vial diameter is not shown, ignore the
default sizes. Click “New”.
This brings up the Tray Configuration Dialog
box shown below.
A “Tray ID” must be assigned.
The normal convention is to
use the diameter, then the
number of vials in a row, and
a column.
You may use your own
naming method, of course.
The shortcut to this screen is
shown below.
In this case, the vial diameter
is 22mm.
Enter “22” for Vial Diameter.
Click on “Number of Vials”.
Vision calculates the
maximum number of vials per
tray. IN this case, 8 may fit on
the tray. Vision fills in the
number of vials per row and
column.
Click “More”.
To Next Page
