METRON QA-90 User Manual

4-6
Module Code : .....> F7
No of leads : .......................> F6
Type : CF.......................> F5
ADD GO BACK PREV. NEXT
F1 F2 F3 F4

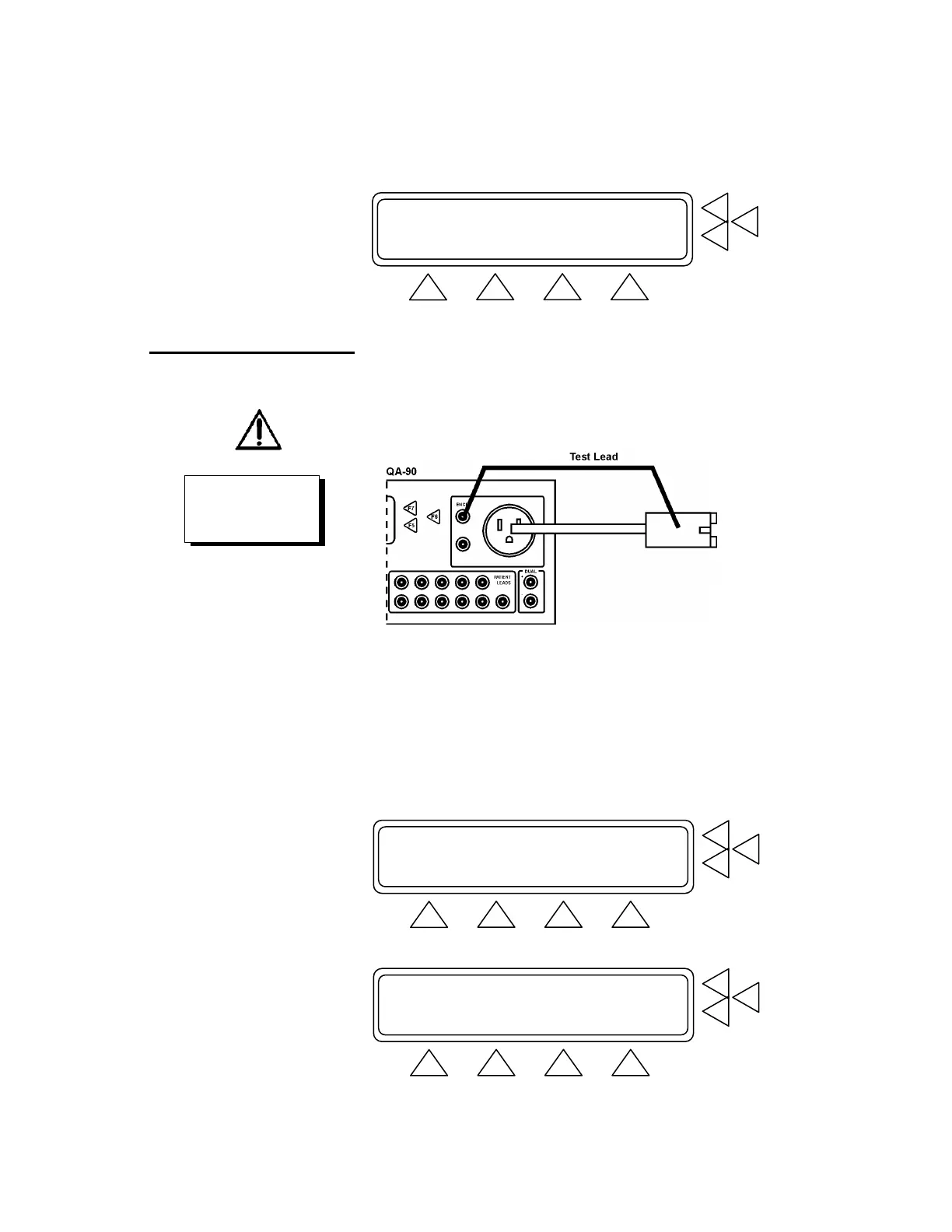

4.4 Power Cable Test
The earth lead in the power cable is tested as follows. Plug the power
cable into the front panel of the QA-90, then connect a calibrated test
lead between ENCL. and the each pin on the power cable.
1. Press MORE (F1) in MAIN MENU.
2. Press Test Mode (F5) and select Manual.
3. Press START (F4).
4. Press MORE (F1) in MANUAL TEST SETUP.
5. Press Protective Earth (F7).
6. Press START (F1).
Equipment Code : ...> F7
Sequence Name : ...> F6
Class: CL1 ,0 leads in 0 modules.......> F5
MORE MEMORY SETUP START
F1 F2 F3 F4
Test according to : IEC60601.1 ......> F7
Test Type : Rapid ...........> F6
Test Mode : Automatic .......> F5
GO BACK START
NOTE
Ensure that the test leads
are calibrated BEFORE
the test.
