Current Measurement Dual Lead .........> F7
Voltage Measurement Dual Lead .........> F6
Resistance Measurement Dual Lead ......> F5
GO BACK START
F1 F2 F3 F4
Voltage : V F7
F6
Measure between E+ and E- inputs F5
START GO BACK PRINT MAIN MENU
F1 F2 F3 F4

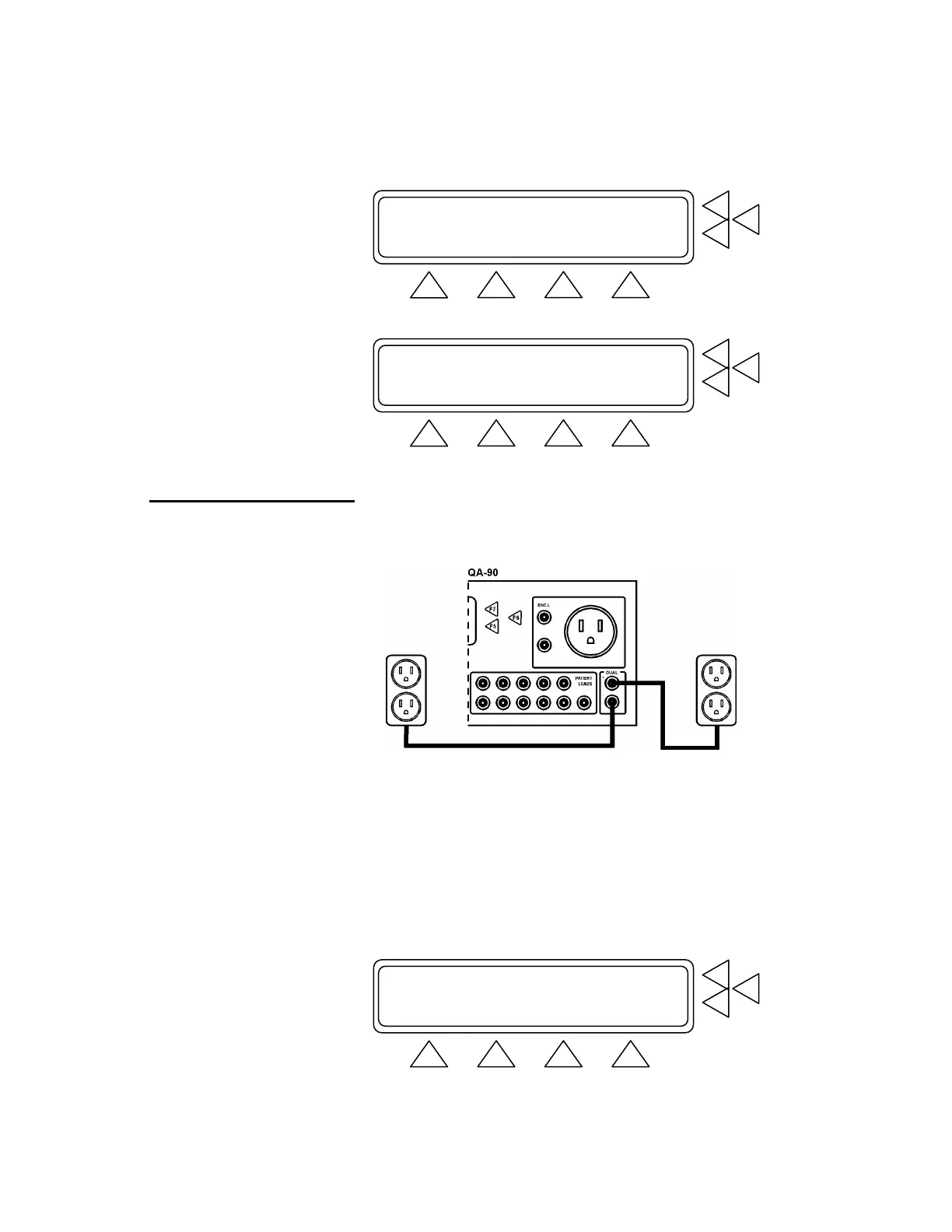

4.7 Resistance Measure-
ment (Dual Lead)
Measuring protective earth on fixed installations.
1. Press MORE (F1) in MAIN MENU.
2. Press Test Mode (F5) and select Manual.
3. Press START (F4).
4. Press MORE (F1) in MANUAL TEST SETUP.
5. Press MORE (F1) three more times.
6. Press Resistance Measurement Dual Lead (F5).
7. Press START (F1).
Equipment Code : ...> F7
Sequence Name : ...> F6
Class: CL1 ,0 leads in 0 modules.......> F5
MORE MEMORY SETUP START
