METRON QA-90 User Manual

4-12

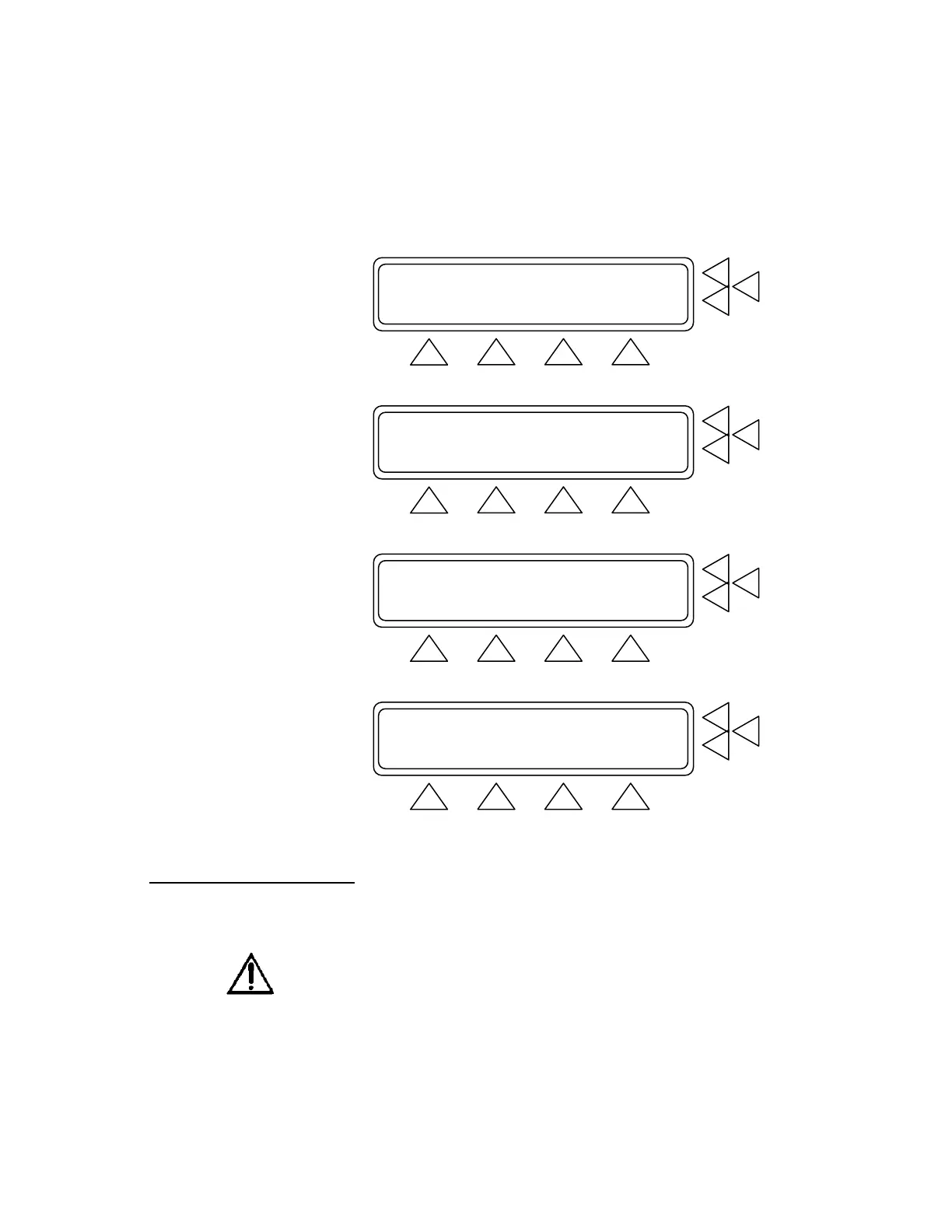

F1 F2 F3 F4
Test according to : IEC60601.1 ......> F7
Test Type : Rapid ...........> F6
Test Mode : Automatic .......> F5
GO BACK START
F1 F2 F3 F4
MANUAL TEST SETUP F7
Mains Voltage .........................> F6
Current Consumption ...................> F5
MORE MAIN MENU
F1 F2 F3 F4
Current Measurement Dual Lead .........> F7
Voltage Measurement Dual Lead .........> F6
Resistance Measurement Dual Lead ......> F5
GO BACK START
F1 F2 F3 F4
Open Supply ...........................> F7
Result : µA F6
Measure between E+ and E- inputs F5
START GO BACK PRINT MAIN MENU
F1 F2 F3 F4
4.8 Connecting Auxiliary
Power Source / Isolat-
ing Transformer
External power cable gives power out on the contact on the front pan-
el to the instrument under test.

METRON QA-90 Specifications

General

Brand	METRON
Model	QA-90
Category	Measuring Instruments
Language	English
