METRON QA-90 - Measuring System Schematic Part 4: High Voltage Drives

112 pages

To Next Page

To Previous Page

B-9

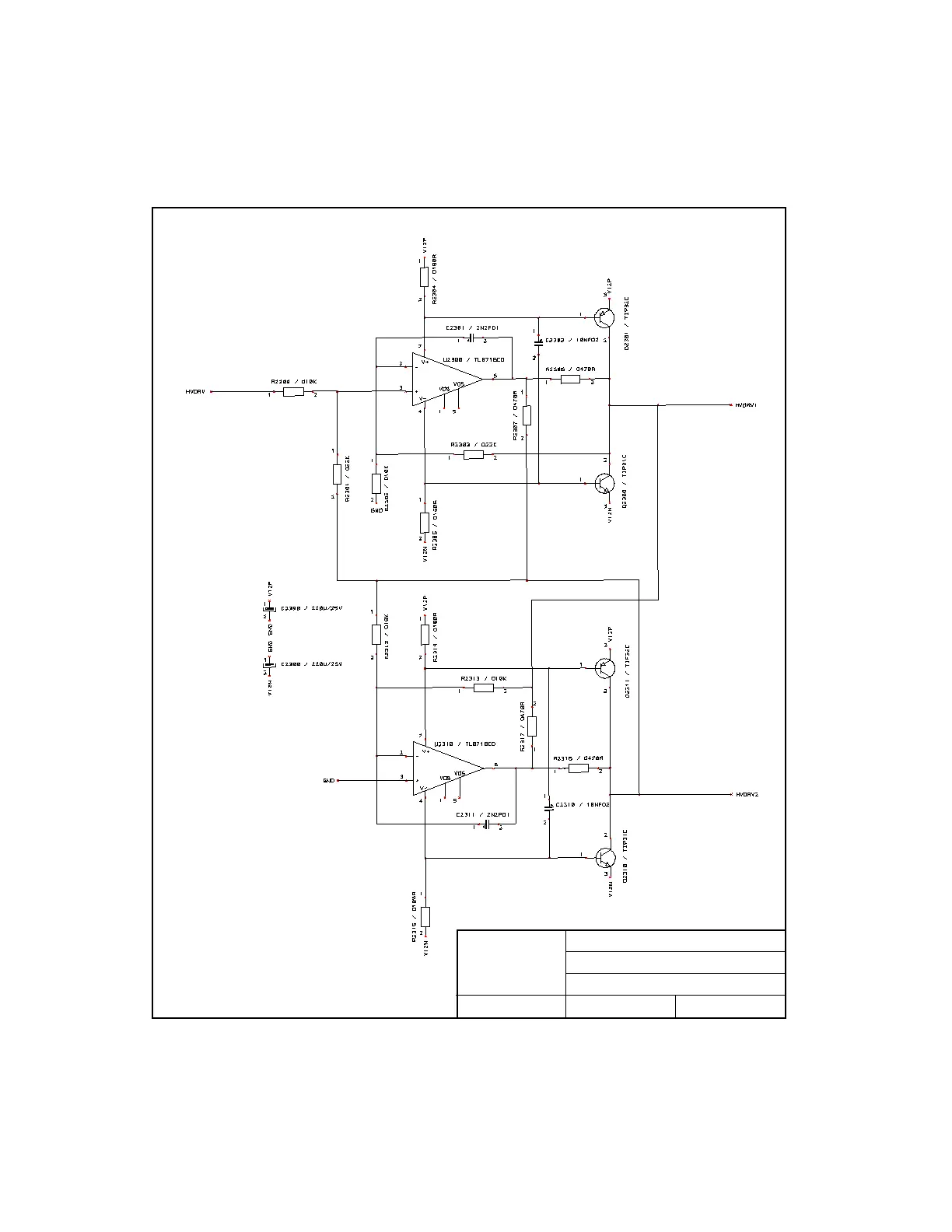

Measuring System Schematic Diagram Part 4 (High Voltage Drivers)

DESCRIPTION

DRAW CAT.

DRAW NO.

PAGE

DATEPRODUCT

QA-90

METRON

High Voltage Drives

Schematic diagram, Part 4

E160.20.2300.U3

17.10.1995

4 of 8
