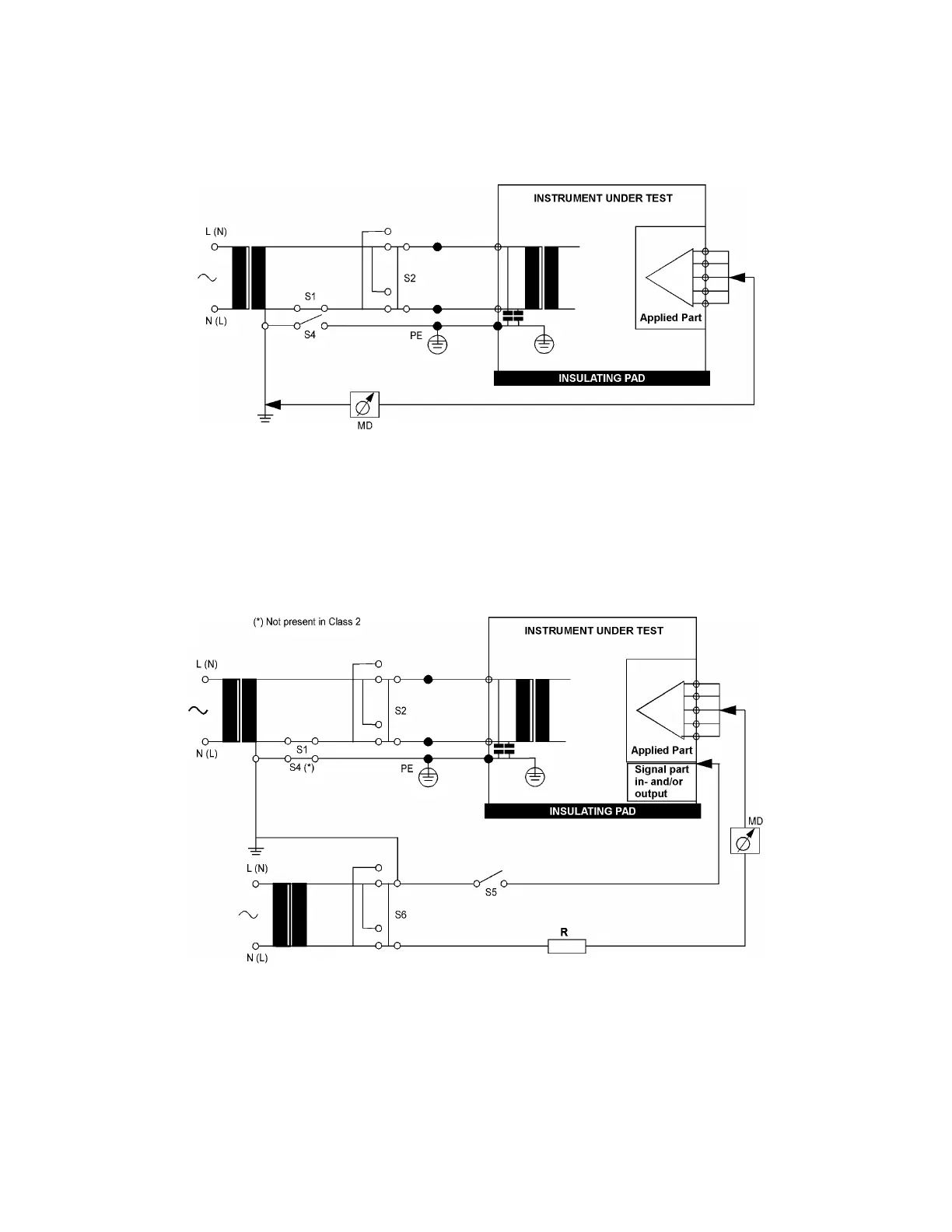

12. Test P.L.C. 4 - Patient Leakage Current: S.F.C. Mains on Applied Part
• Applicable to Classes 1 and 2, Types BF and CF.
• Measures leakage current to earth from Applied Part to earth caused by external mains voltage
on Applied Part, and with switch S5 open and closed.
• Each polarity combination possible is tested using S5 and S6.
• Maximum leakage current Type BF: 5000 µA (Range: DC and AC up to 1 kHz). For Type
CF: 50 µA (Range: DC and AC up to 1 kHz) (100 µA for CF defib paddles: IEC 601-2-4).
13. Test P.A.C. 1 - Patient Auxiliary Current: Normal Condition
• Applicable to Classes 1 and 2, Types B, BF and CF.
