8 EXPLODED VIEWS AND PARTS LIST

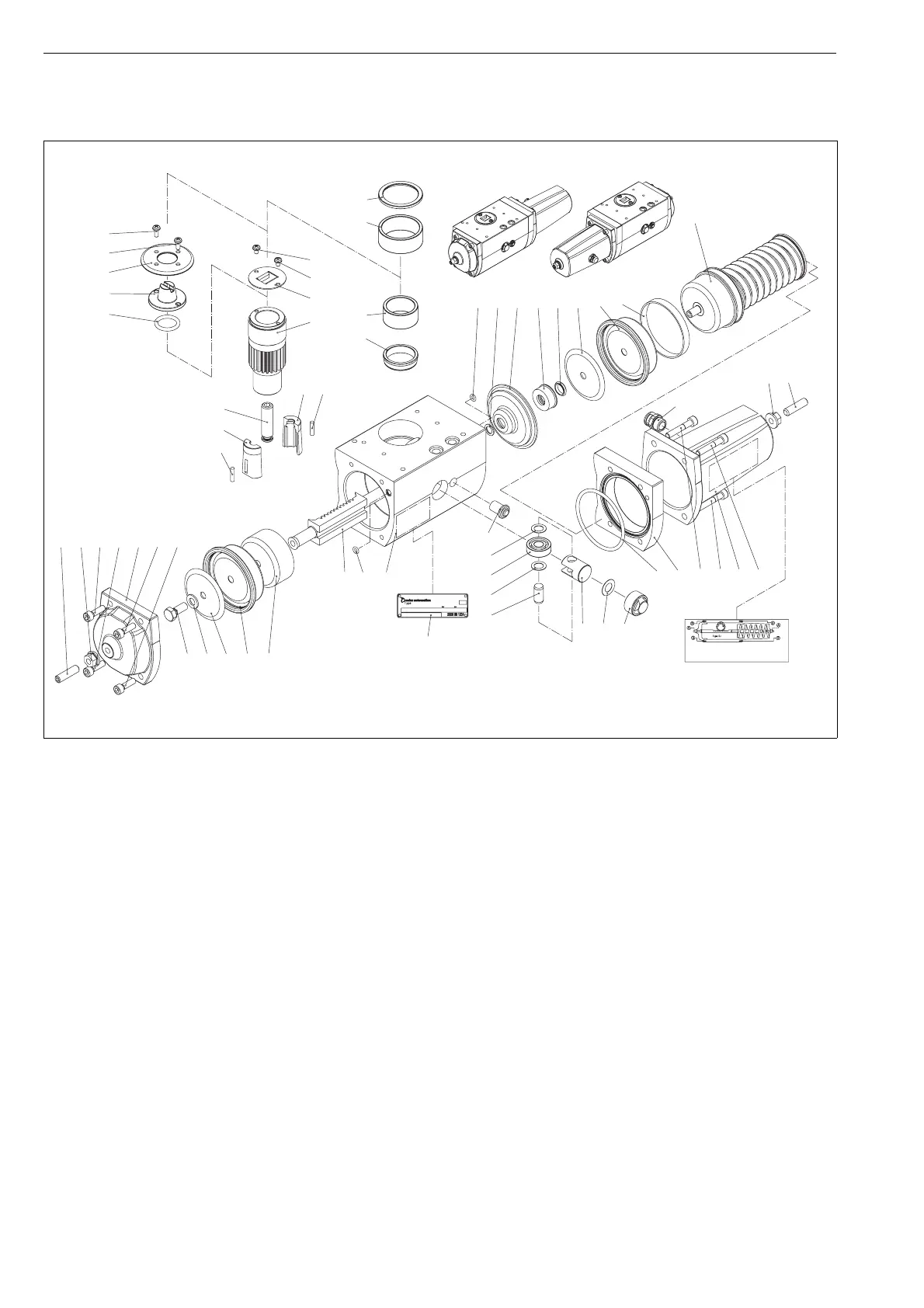

8.1 Actuator EJ05
MADE IN FINLAND
MADE IN FINLAND
NELES FIELD CONTROLS OY
NELES FIELD CONTROLS OY
MAX PRESS
MAX PRESS
ISO 5211 F
ISO 5211 F
6
DATE
DATE
NO
NO
87
87
CHECK
CHECK
CAUTION Spring under compression! Remove first screws A, then screws B.
VARO J nnitetty jousi! Ruuvit A poistettava ennen ruuveja B.
ACHTUNG Feder unter spannung! Erst schrauben A ffnen, dann schraube B.
ATTENTION Ressort sous tension! Enlever d’abord vis A, ensuite les vis B.
VARNING Belastad tryckfj der! Skruvarna A m ste avl gnas f re skruvarna B.
38
30
29
37
38
31
18
27
27
15
3
17
16
I
II
III
II III
23 24 22 22 2 22 22
25 26 6 7 5
4201
58
19
21
10
21
11
812 9
52 45 53 53 42 53
56
24 23
40, 41, 43, 44, 48, 54, 55, 57
20 51 46 47 50 6 7 49
EJU
EJ
EJA
Part Pcs Description Rec. spare part
1 1 Housing
2 2 Cylinder end
3 1 Drive shaft
4 1 Gear rod
5 2 Diaphragm retainer
6 2 Diaphragm support plate
7 2 Rolling diaphragm x
8 1 Clevis
9 1 Adjustment bushing
10 1 Ball bearing
11 1 Pin
12 1 Disc spring
II 2 Half bushing
I 1 Tightening screw
15 1 Coupling plate
16 1 Guidance ring
17 1 Needle bearing
18 1 Needle bearing
19 1 Breather
20 2 O-ring x
21 2 Support ring
22 8 Socket head screw
23 2 Socket head set screw
24 2 Hexagon nut
25 2 Hexagon screw
26 2 Seal ring x
Part Pcs Description Rec. spare part
27 2 Cross rec head screw
29 1 Pointer cover (only EJU)
30 1 Pointer (only EJU)
31 1 Retainer ring
III 2 Pin
37 1 O-ring (only EJU)
38 2 Cross rec head screw (only EJU)
40 1 Compression spring
41 1 Spring retainer
42 1 Spring housing
43 1 Spring plate
44 1 Diaphragm rod
45 1 Spacer plate
46 1 Lead-through plate
47 1 Lead-through bearing
48 1 Thrust bearing
49 1 Bearing strip x
50 1 Seal ring x
51 1 Seal ring x
52 1 O-ring x
53 4 Socket head screw
54 1 Hexagon nut
55 1 Washer
56 1 Filter
57 1 Retainer ring
58 1 Identification plate
