Metso neles EJ 07 - Dimensions and Weights; Actuator EJ Dimensions

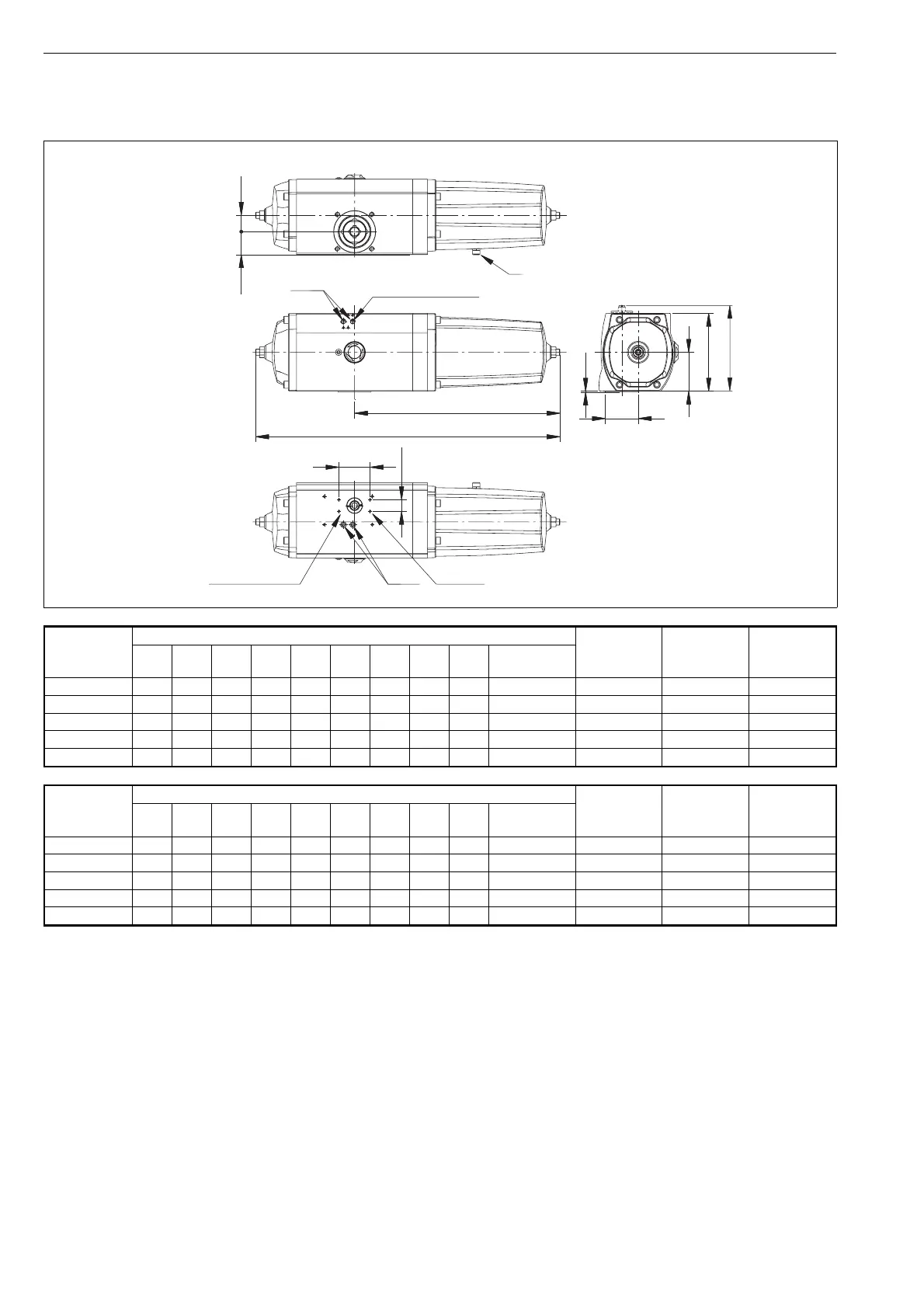

9 DIMENSIONS AND WEIGHTS
9.1 Actuator EJ
B
G1/4"
VDI/VDE 3845 **
G
F max.
L
R
K K1 *
Z
VY
VDI/VDE 3845
G1/8"
4 x M5
80
30
Type Dimensions in mm Stroke
volume
dm
3
M
N
4 bar
Nm
Weight
kg
ZGFVYLKK1R Air
connection
EJ05 1.5 229 352 18 30 ø35 91 111 46 - 0.17 19 5
EJ07 1.5 293 443 23.4 36 ø55 117 137 58.5 G 1/4" 0.4 47 9.4
EJ10 2 403 606 32 46 ø70 155 175 77.5 G 1/4" 1.0 117 20.5
EJ12 2.5 522 770 42 59 ø85 200 220 100 G 1/4" 2.5 281 50
EJ14 3 692 1030 56 73 ø100 259 279 129.5 G 1/4" 6.0 691 107.5
Type Dimensions in inches Stroke
volume
in
3
M
N
116 psi
lbf ft
Weight
lb
ZGFVYLKK1R Air
connection
EJ05 0.06 9.02 13.86 0.71 1.18 ø1.35 3.58 4.37 1.81 - 10.5 14 11
EJ07 0.06 11.54 17.44 0.93 1.42 ø2.15 4.61 5.39 2.30 G 1/4" 24.5 34.5 21
EJ10 0.08 15.87 23.86 1.26 1.81 ø2.7 6.10 6.89 3.05 G 1/4" 61.0 86.5 45
EJ12 0.1 20.55 30.31 1.65 2.32 ø3.3 7.87 8.66 3.94 G 1/4" 152.5 206.5 110
EJ14 0.12 27.24 40.55 2.20 2.87 ø3.9 10.20 10.98 5.10 G 1/4" 366.0 509 237
*) VDI/VDE 3845 compatible mounting interface for accessories
**) VDI/VDE 3945 compatible mounting interface for solenoid valve
14
