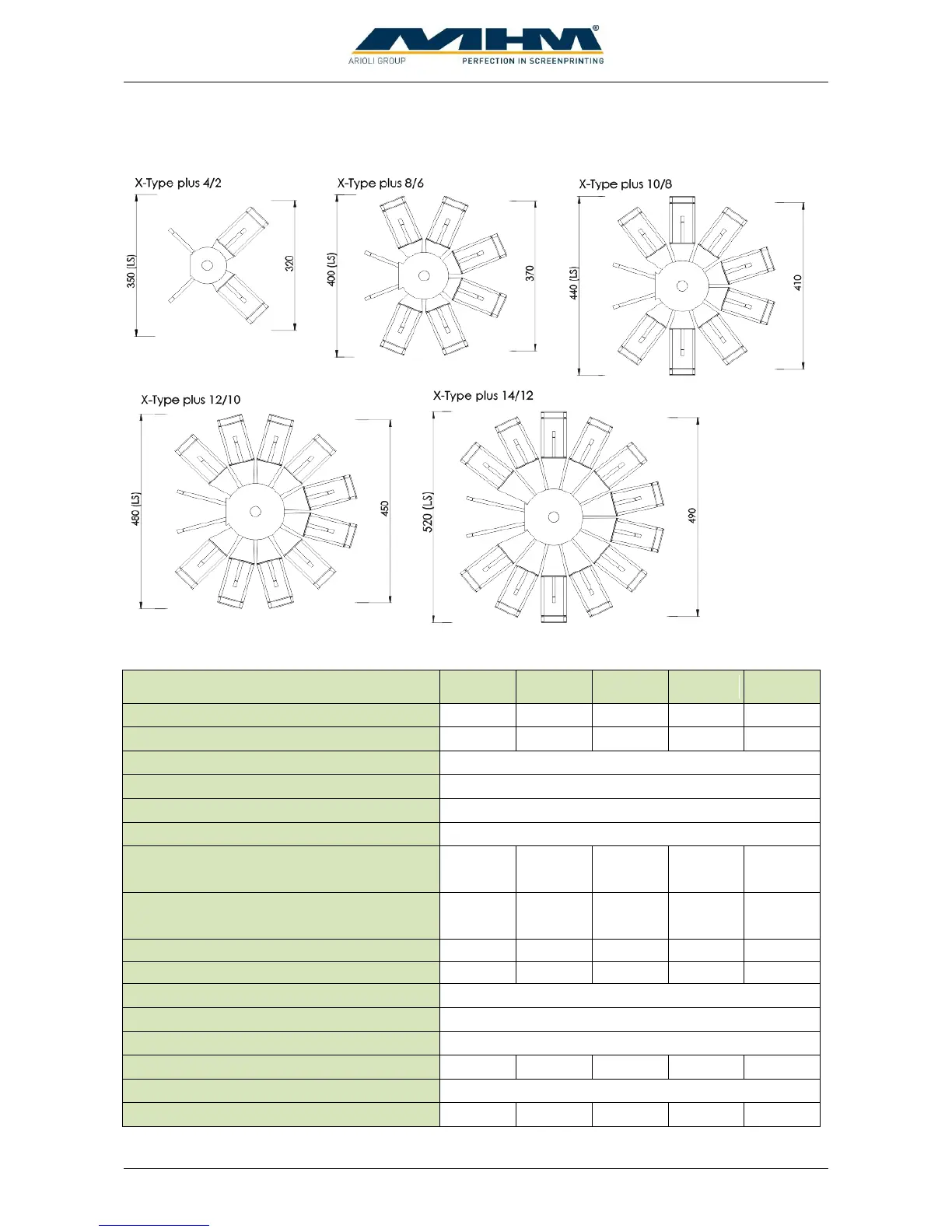

3.2. Dimensions
3.3. Specifications
Specifications X-Type plus
SPXC 04
SPXC 08
SPCX 10
SPXC 12
SPXC 14
number of pallets
4
8
10
12
14
max. number of printstations / colors
3
6
8
10
12
max. image area (standard version)
43 x 50 cm (17 x 19,5")
max. image area (LS version)
43 x 55 cm (17 x 21,5")
max. frame size (standard version)
60 x 80 cm (23 x 31")
max. frame size (LS version)
66 x 92 cm (26 x 36")
overall diameter
320cm
126"
370cm
146"
410cm
161,5"
450cm
177"
490cm
193"
overall diameter LS version
350cm
137,8"
400cm
157,5"
440cm
173,5"
480cm
189"
520cm
205"
Machine weight (standard version) [kg]
1100
1700
1850
2000
2300
Machine weight (LS version) [kg]
1150
1750
1900
2050
2350
electrical supply
1 ph. ~ 200/240V AC, 50/60Hz (+/- 5%)
connected load (indexer)
1,6 kVA
connected load (per printstation)
0,4 kVA
Ø power consumption [kWh]
0,58
0,8
0,95
1,1
1,25
air pressure (minimum)
7 bar / 100 PSI (filtered, dry air only)
Ø air consumption (l/min)
130
220
280
340
400
