7.9.10. Squeegee Carriage
The squeegee carriage is equipped
with two squeegees. Pulling the black
‘quick release’ knob (pic. opposite)
will release the respective squeegee.
Make sure that these locking knobs
engage fully when loading the
squeegee. The maximum permitted
squeegee width must be observed.

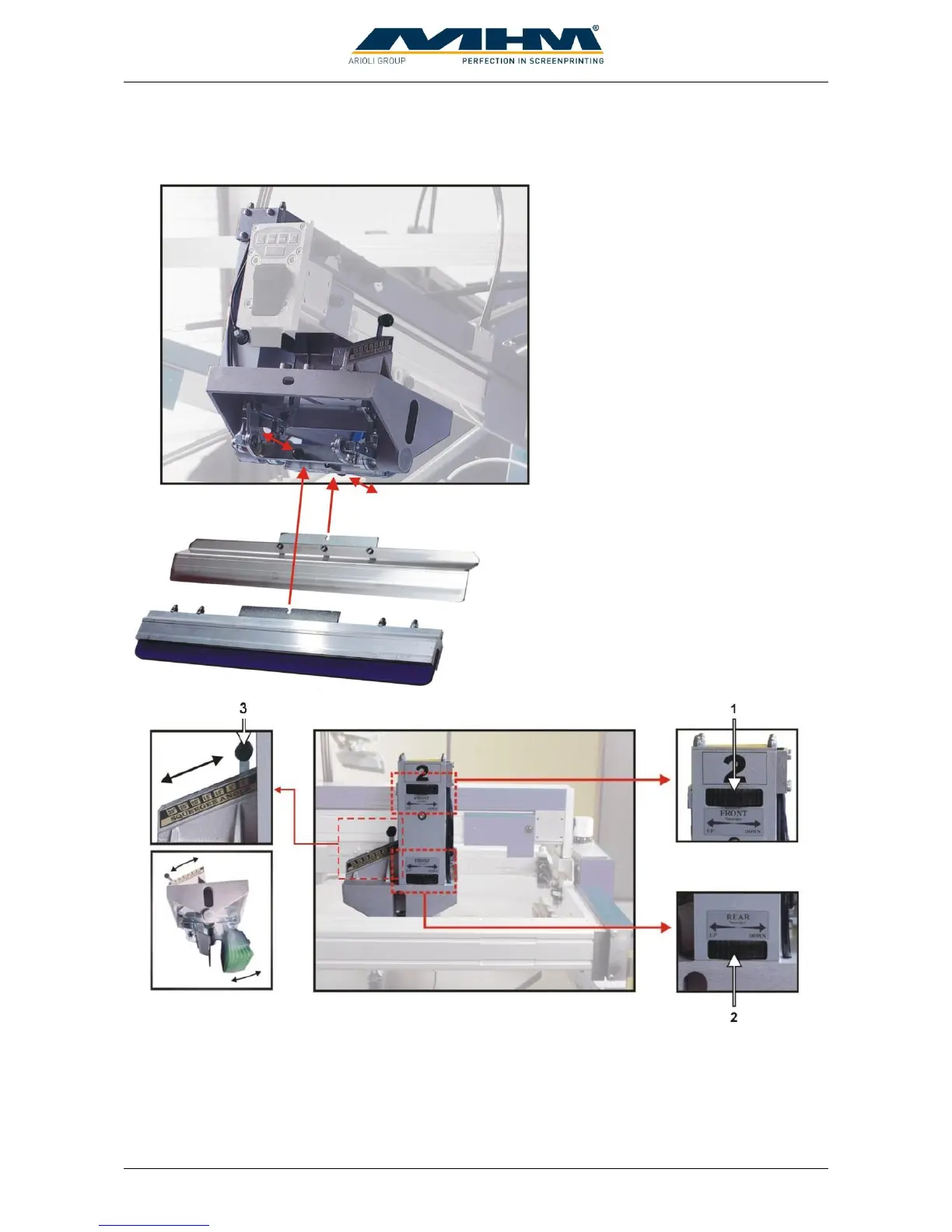

Squeegee height may be adjusted individually with the handwheels (pic. 1 + 2). Squeegee angle
may also be adjusted individually by the sliding levers (pic. 3). Squeegee pressure may be adjusted
with an adjusting knob located on the squeegee arm (see section 7.9.7 Squeegee carriage speed &
pressure controls).
