7.8. Type Plate
The type plate with type, serial number, year of manufacture, mains voltage, mains frequency,
connected load and CE symbol is located on the machine base.
7.9. Print Stations

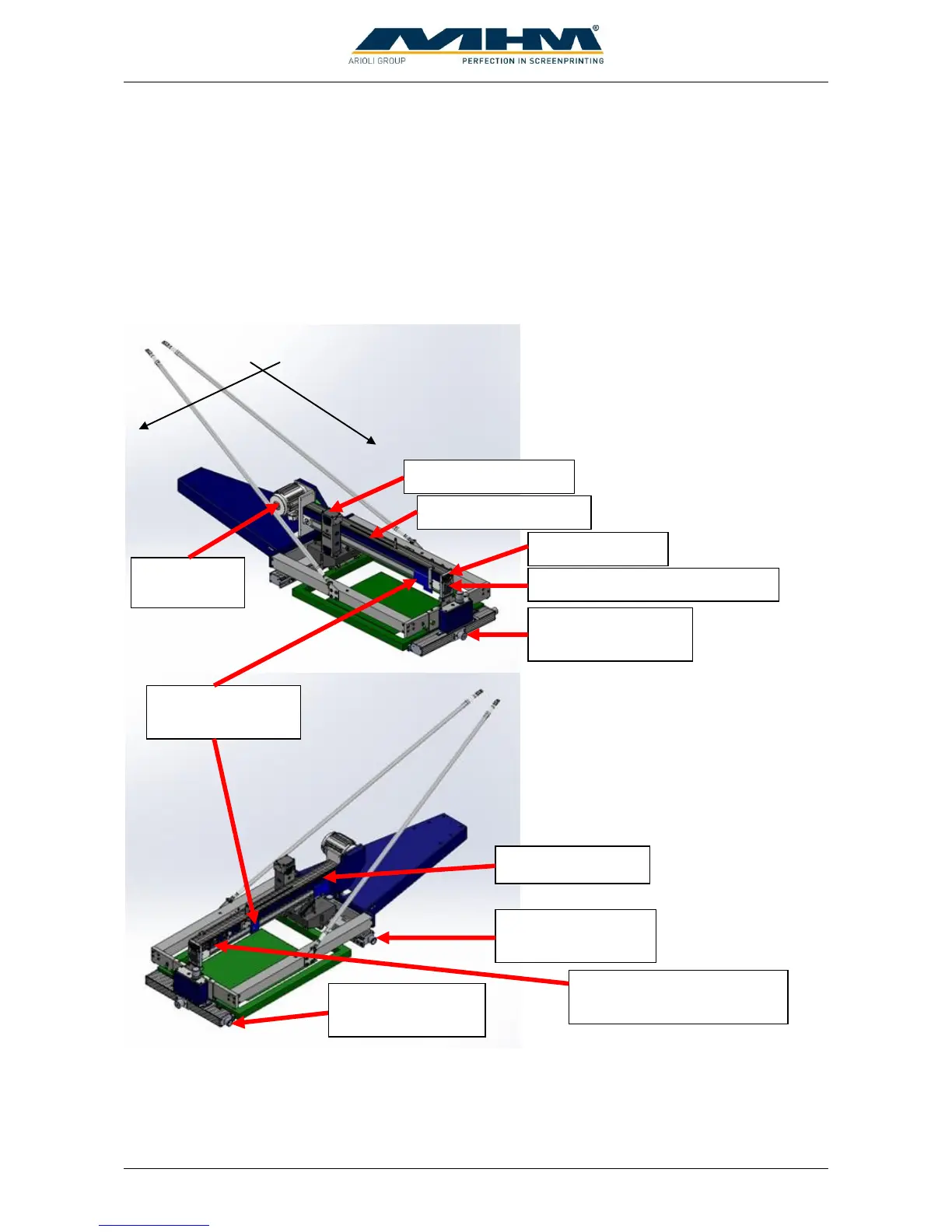

7.9.1. Overview Print Stations
The print stations are used for printing individual colors onto textiles/garments. The X-Type plus
may be ordered with a maximum of up to 12 print stations. The following sections include a
detailed description of the individual components.
Squeegee
drive motor
Squeegee carriage
Squeegee/print arm
Squeegee stroke
length adjustment
Screen adjustment
Left/right - rear
Screen adjustment
Forward/backward
Control keypad
Squeegee carriage speed &
pressure controls
Squeegee/print arm lock-down
X-axis
Y-axis
Screen adjustment
Left/right - front
hinten
Dryer connector
