Page 29
Operation and Setting
optoCONTROL CLS-K
6.2.4 Special Function for CLS-K-61
The amplifier CLS-K-61 has the following additional special functions:
- Zero offset
- Signal spreading / Signal amplification
The amplifier offers the possibility to spread the signal range which is of special interest for the application to
the analog range.
1 2
P2 Additional amplification
(Signal spreading)
P3 OFFSET
zero offset
P1 Potentiometer sensitivity
S1 Range switching
S2
Selector switch analog output
1 Basic function 0.1 - 5 VDC
2 Output 0 - 10 VDC
Display
LED red
LED green

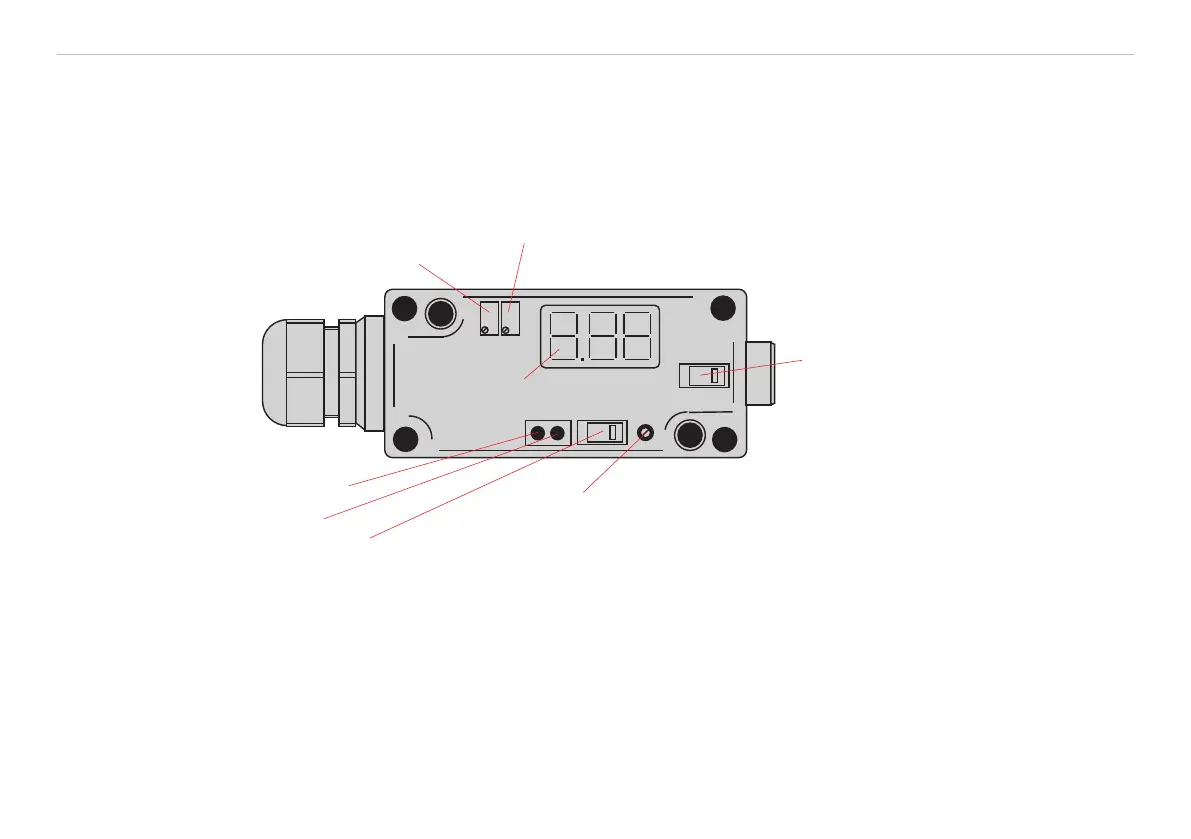

Fig. 21 Operating and display elements model CLS-K-61 / Special functions
