PICkit™ 2 Overview
© 2006 Microchip Technology Inc. DS51553B-page 9
1.5.4 Programming Connector
The programming connector is a 6-pin header (0.100" spacing) that connects to the
target device. See the pinout specification in Figure 1-2.
For more information on how to use the PICkit™ 2 Microcontroller Programmer with
In-Circuit Serial Programming™ (ICSP™), refer to Chapter 3. “PICkit™ 2 and
ICSP™”.

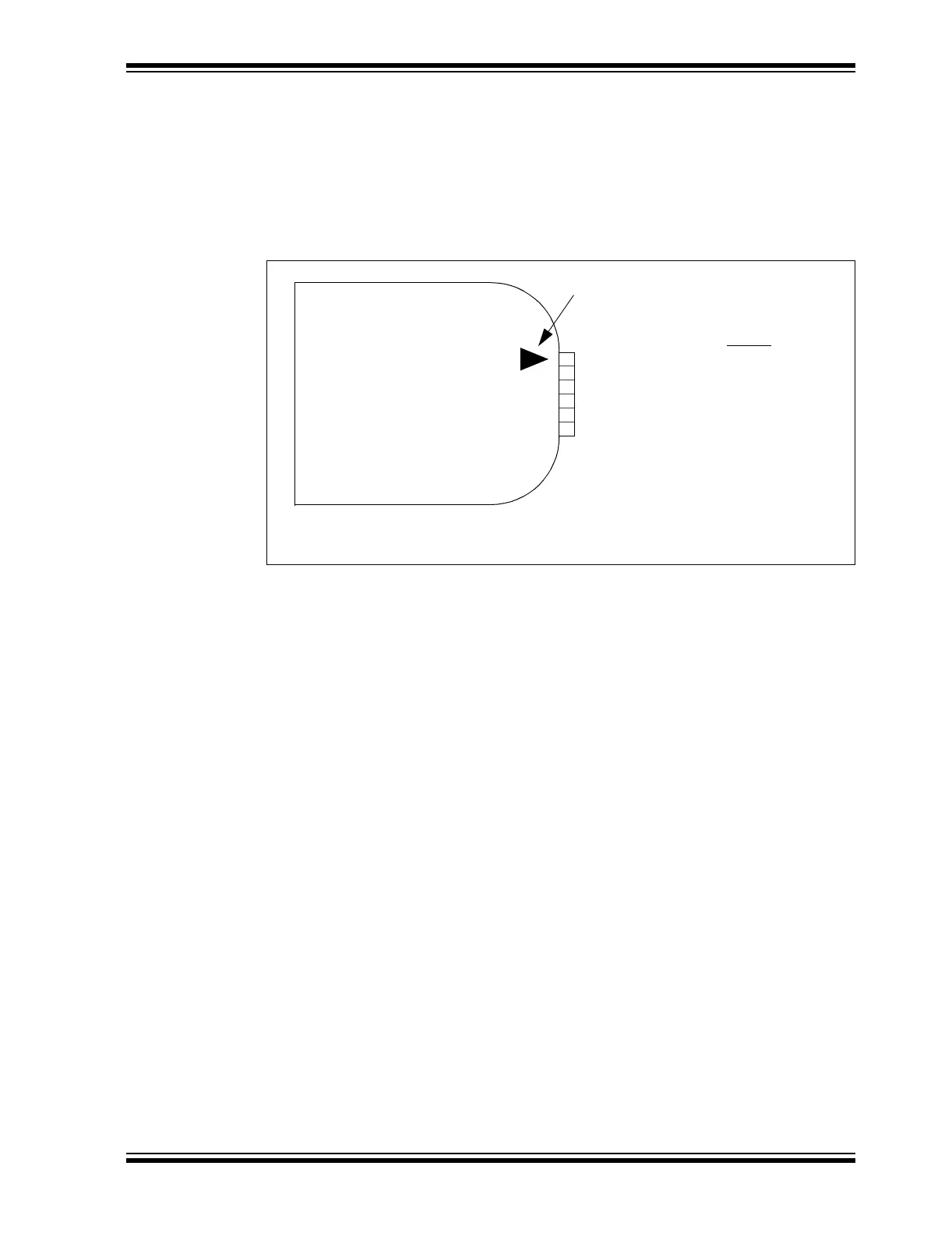

FIGURE 1-2: PICkit™ 2 CONNECTOR PINOUT
1.5.5 Lanyard Connection
To help prevent possible loss of the The PICkit™ 2 Microcontroller Programmer, a
convenient laynard connection is available on the programmer.
1
2
3
4
5
6
Note: The 6-pin header (0.100" spacing) accepts 0.025" square pins.
Pin Description
1 = VPP/MCLR
2 = VDD Target
3 = VSS (ground)
4 = ICSPDAT/PGD
5 = ICSPCLK/PGC
6 = Auxillary
Pin 1 Indicator
