Fluid module SediGraph III 5120 Service
2-8 Mar 2010
Valve Assemblies
Located in the rear of the fluid module, the valve/motor assemblies are used to control the
direction and routing of flow through the instrument. They are used in all automatic
operations.

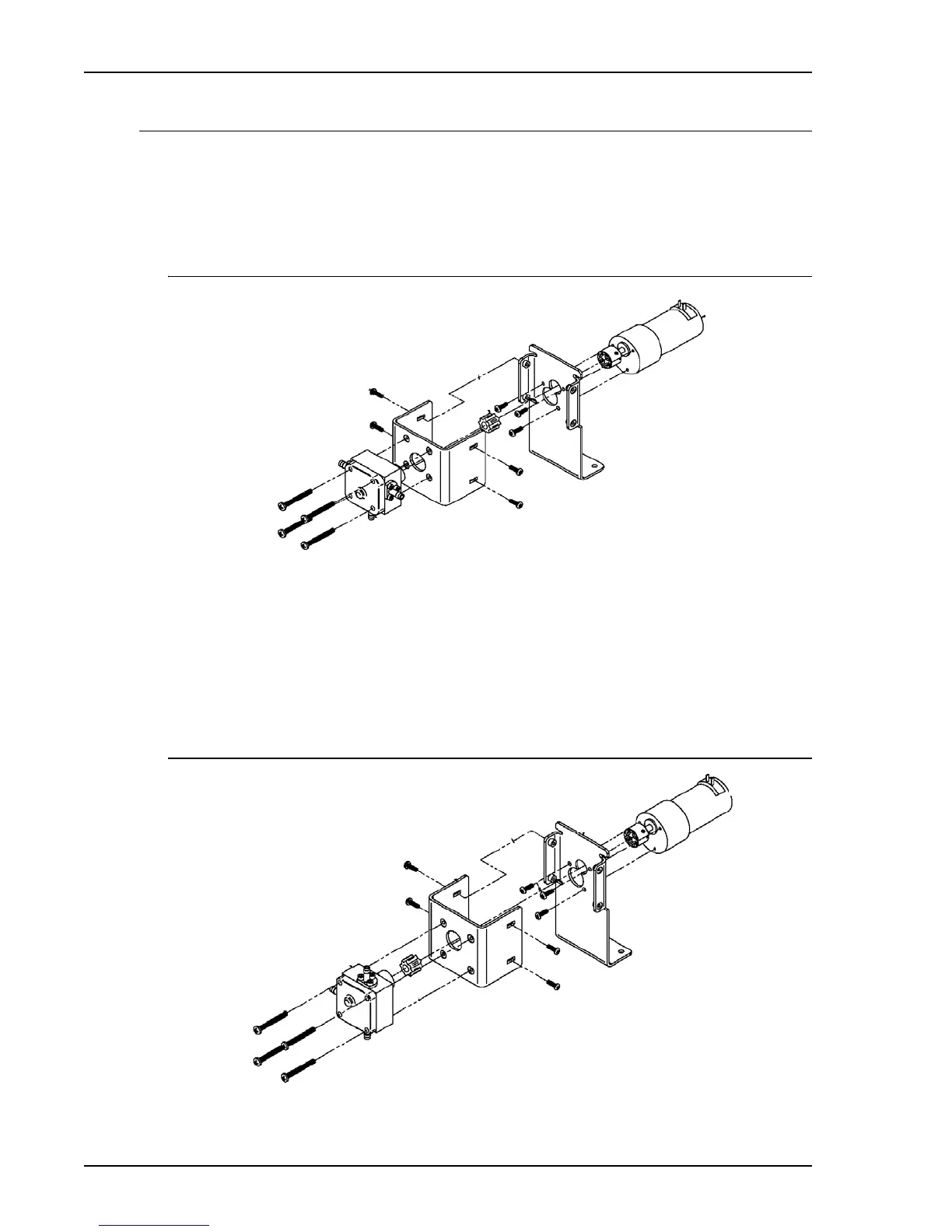

Waste & Rinse Valve
Waste and rinse valves (PN 512/34011/00) are located on the right hand side of the rear of the
fluid module. These two valves are identical in construction and are interchangeable. The
waste valve (far right looking into the fluid module) controls the flow to the waste receptacle
or it closes to provide a closed system of flow. The rinse valve (middle valve when looking
into the fluid module) operates to allow flow in from the rinse container and shuts off after a
pre-determined time.
Air Valve
