Cabinetry SediGraph III 5120 Service
2-2 Mar 2010
Cabinetry
The cabinetry used for the SediGraph III 5120 provides the mounting structure for the fluid
module, Analysis module, power supplies, card cage, air flow control, flood control, cabinet
interlocks and all interconnecting cables for these assemblies. These assemblies can be further
broken down into the following components.
Top Panel

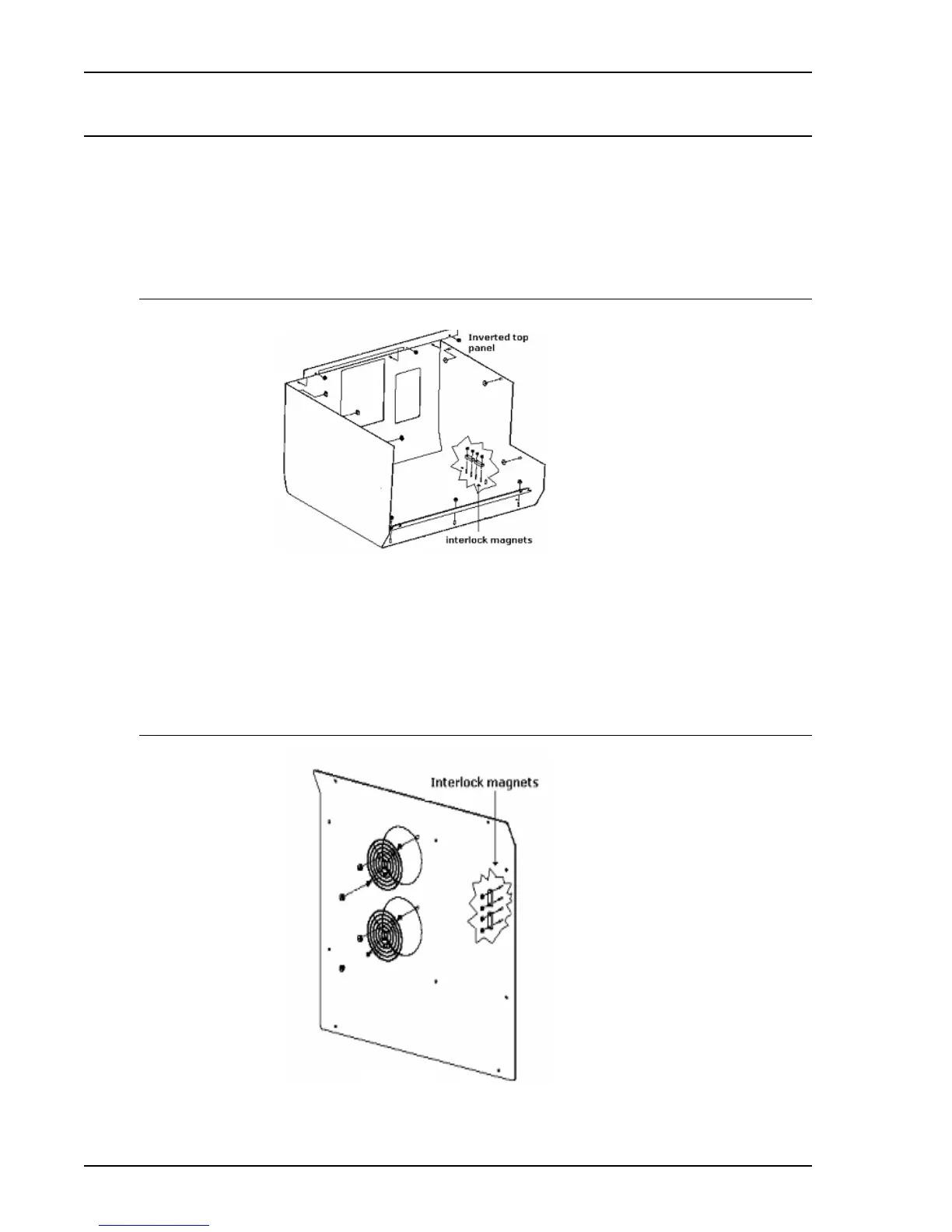

The top panel is removable. There are two magnetic interlocks located under the panel on the
side rail.These interlocks require the use of an interlock defeat tool (PN 512/25850/00) to
allow generation of X-rays when the top panel is off. The Analysis module and the control and
display panel (key-switch, X-ray status lamps and Pump kill) are accessible through the top
panel.
Rear Panel
