Interlock Circuitry SediGraph III 5120 Service
2-18 Mar 2010

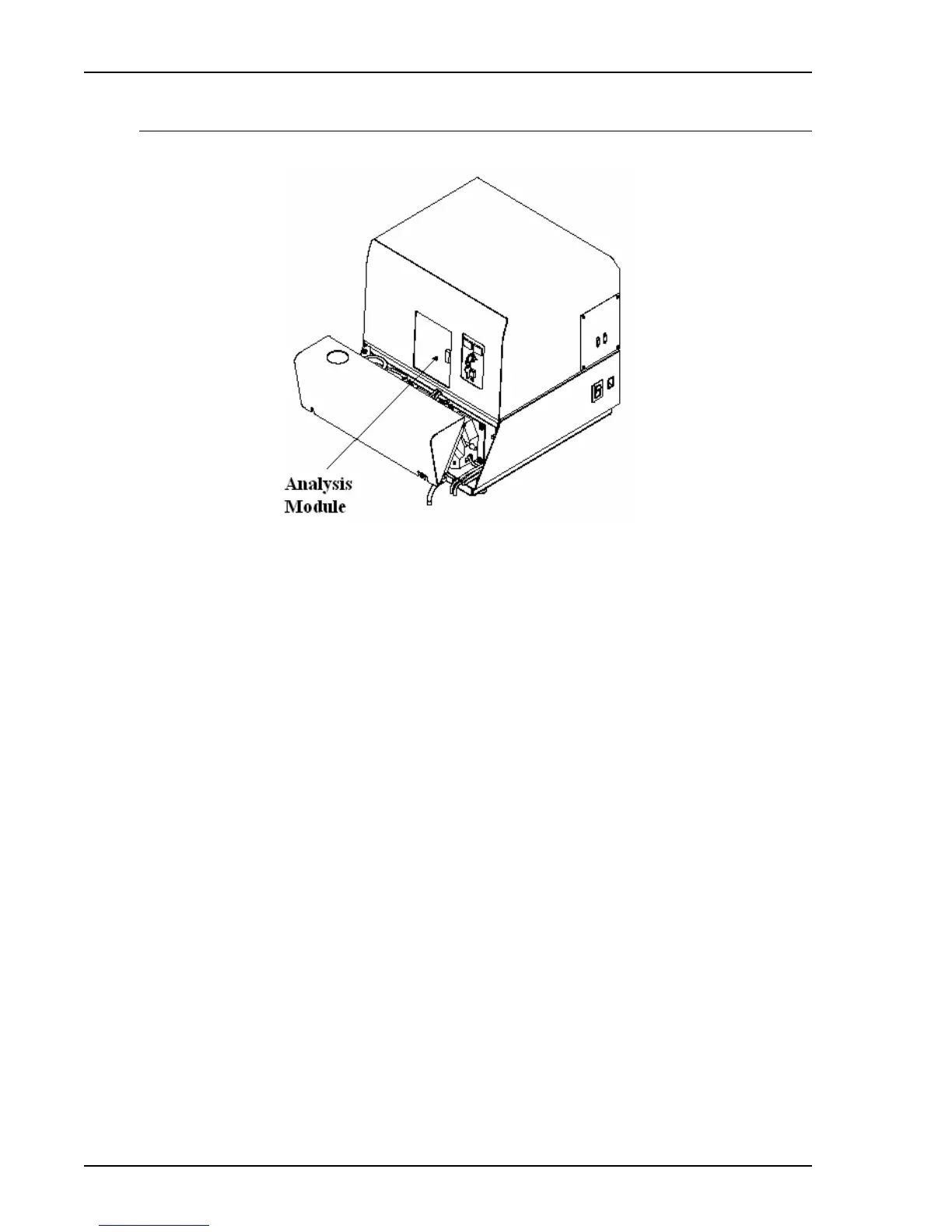

Analysis Module
:
The Analysis module on the 5120 is basically the same Analysis module used for the 5100
with these exceptions: there is no stepper drive card on the top of the Analysis module
assembly, and an updated (electronically) X-ray control board is used.
The 5120 was engineered using the same reliable safety features used in the 5100, providing
protection against accidental exposure to high voltage or x-rays. The cabinet’s color and the
updating of the electronics are the biggest changes.
The Analysis module consists of:
• X-ray tube
• X-ray adjusters
• X-ray control PCB
• X-ray tube high voltage supply
• Collimator assembly
• Cell stepper motor
• Photo Multiplier tube
• Photo multiplier high voltage power supply
• Shutter pin
• Double clamp coupling
• Anti-backlash nut
• Heaters
• Fan assembly
