Micromeritics SediGraph III 5120 User Manual

Power Supplies and Power Entrance SediGraph III 5120 Service
2-24 Mar 2010

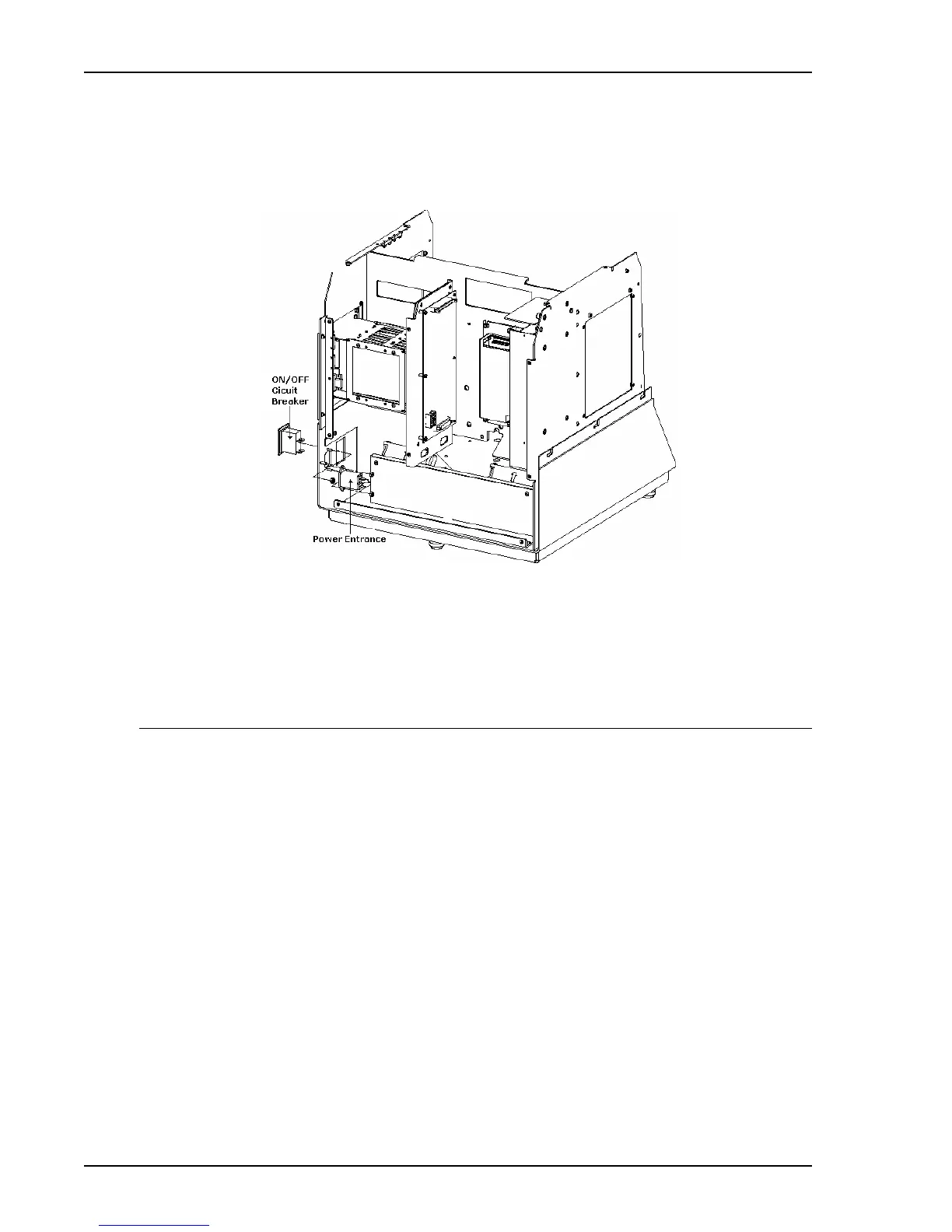

Power (AC) is fed to the instrument through an IEC Power entrance rated at 250V and
10Amps.
Power is fed to the 24VDC power supply through a circuit breaker integral to the power
switch; this switch/breaker is rated at 250V and 6Amps.
Power supplies and Serviceable Items
003/40023/02 Power Supply, 1.5HVDC, DC-DC, Reg.
003/40062/00 Power Supply, X-ray High Voltage
003/40049/00 Power Supply, 24VDC, 350W, Universal input
003/40002/00 Power Supply, Quad Switching, Universal input
003/51191/00 Circuit Breaker, 6A, 2 pole
003/60822/02 Cable IEC, Power Inlet 10A, w MOV
