MicroNet CE-507 - Vehicle Battery Connection

Platform Power
Peripheral Controls
GDUTUG500/01
CE-500 MDT Hardware Guide
43 / 97

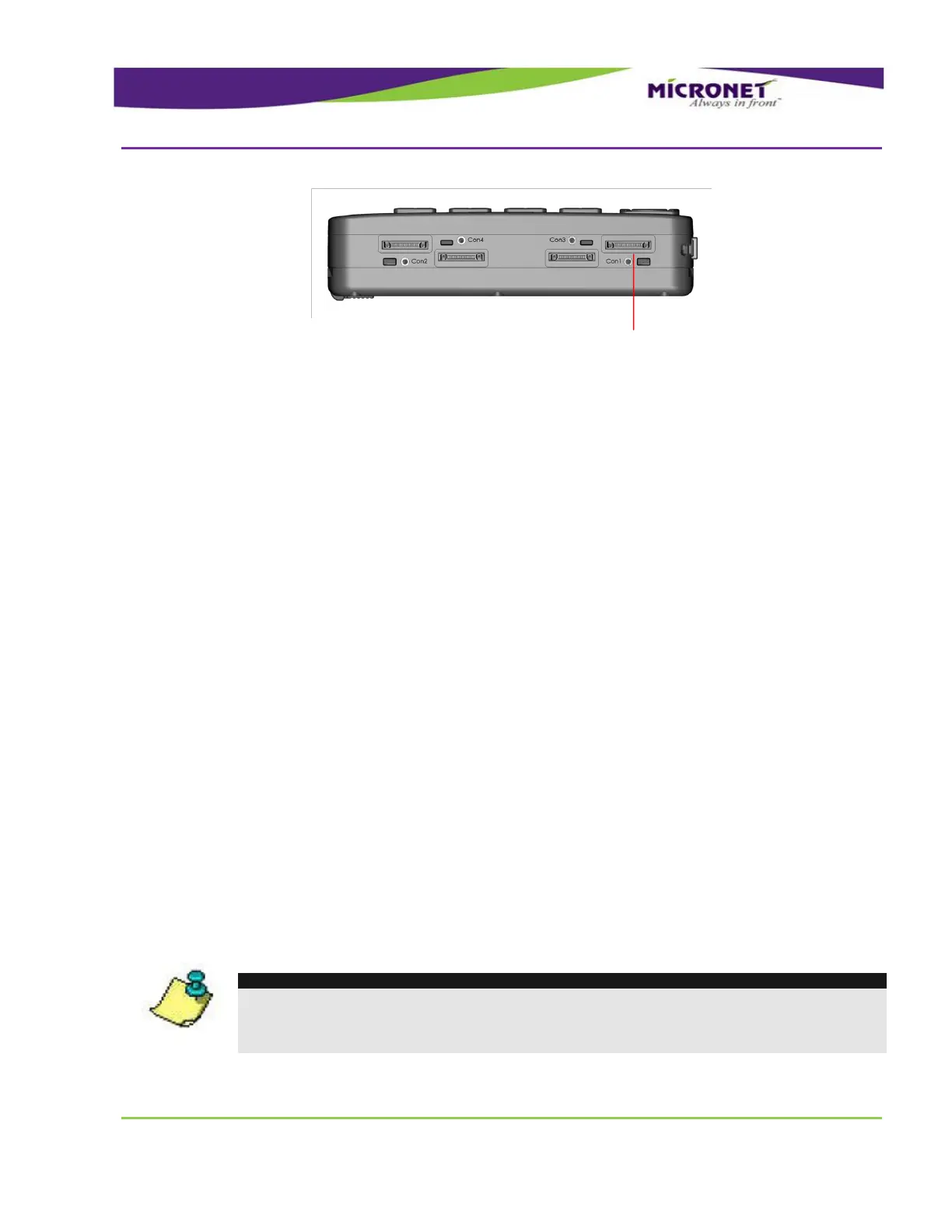

Figure 15 –Device Main Terminal “Con1” connector
The platform provides various accessories that enable direct connection of the device to the 12V or 24V
vehicle battery.
During application development or when the device is performing in the Stand-alone mode, the device
can be powered through the Power-in connector by Wall (110V / 220V AC to 5V DC) or Vehicle Cigarette
Lighter (12V / 24V DC to 5V DC) power adaptors.
For Wall Power Adaptor specifications, see IDC Connector, on page 67.
For Vehicle Cigarette-Lighter power-adaptor cable specifications, see , on page 69.
When the device is mainly fixed-mounted in the vehicle or connected to the solution peripherals, the
device can be powered through the Terminal Connector, by the Main Interface Accessory cable, or
through the device Cradle when the device is portable.
For the disposition map of the device’s Power-In signals on Main Terminal “Con1” Connector, see page
38.
V
V
e
e
h
h
i
i
c
c
l
l
e
e
B
B
a
a
t
t
t
t
e
e
r
r
y
y
C
C
o
o
n
n
n
n
e
e
c
c
t
t
i
i
o
o
n
n
The CE-50X device can be directly connected to the vehicle battery using the Device Cradle or Main
Interface accessory cable.
The supported nominal battery voltage supply is 12V or 24V DC. The operating range is between 8V to
30V DC.
NOTE:
The CE-50X device has no internal fuse, and therefore its connection to the vehicle's
power source line must be protected by a 10A fuse. Additionally, a 4A fuse must be added
to the power cable with an inline fuse holder for HHC / HHD blade-type fuses.
Main Terminal “Con1” connector
