Appendix E CloudLink Web HMI

E-6 HAWK MV-4000 Smart Camera Guide

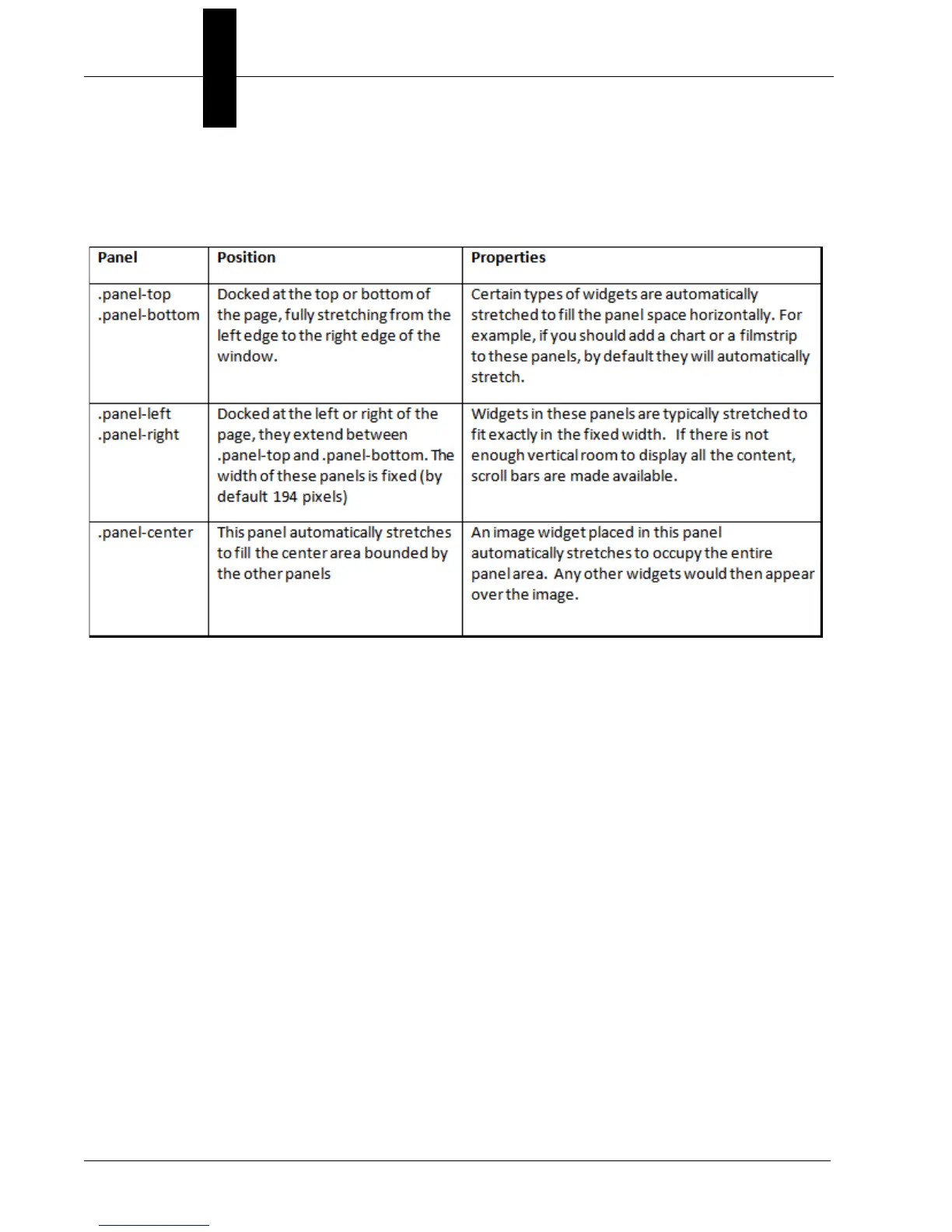

Each panel has special layout and behavior properties that can be exploited to create a

wide variety of different layouts. The following table summarizes the position and

properties of each panel:
