Appendix H OS Config Application

H-6 HAWK MV-4000 Smart Camera Guide

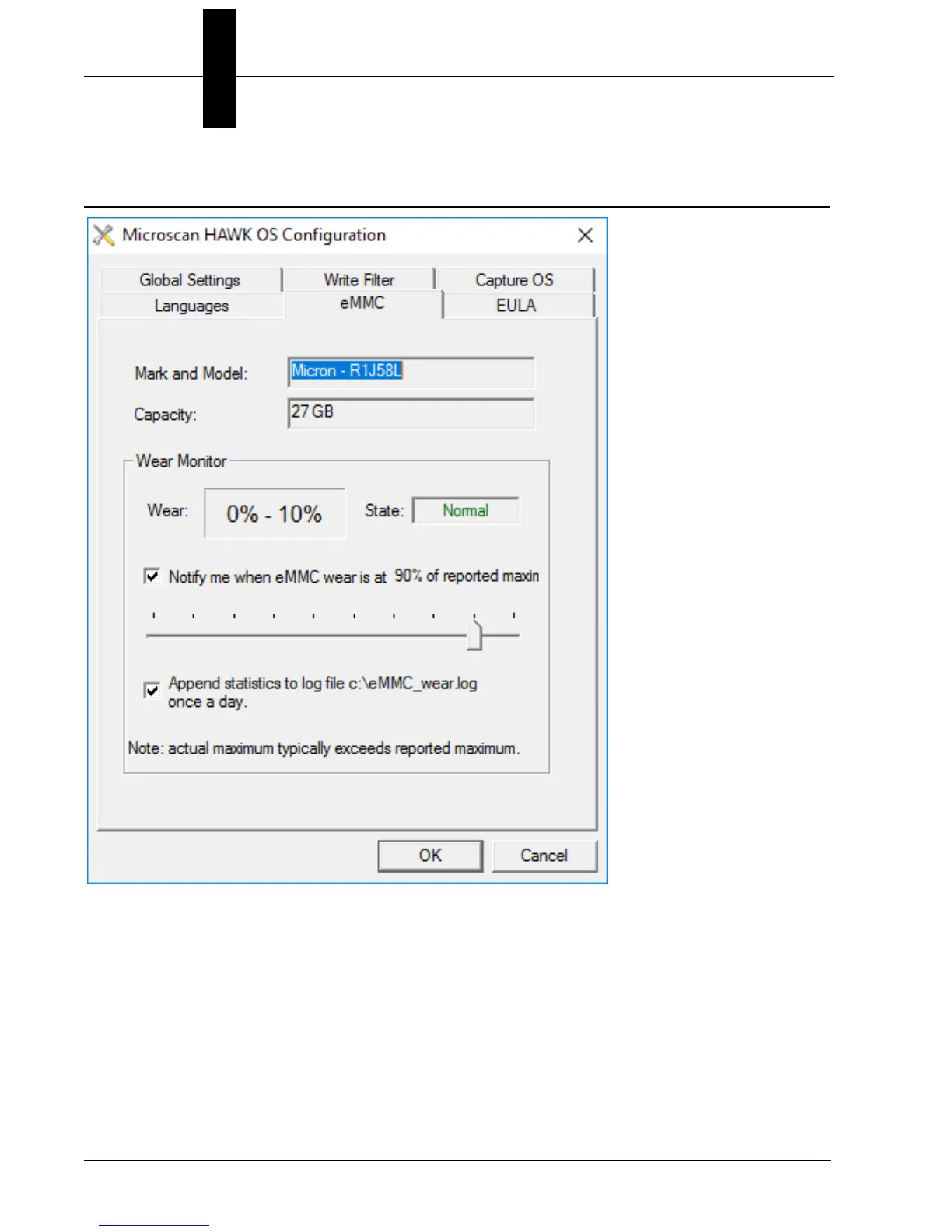

eMMC Tab

This tab shows embedded Multi-Media Controller information. This is a display of the

type of memory used for the hard drive. It shows statistics on the wear state of the actual

hardware devices, and can warn of issues with them.
