Appendix C General Specifications
C-10 HAWK MV-4000 Smart Camera Guide
100/1000 Base-T Connector
The 100/1000 Base-T connector is an M12 socket 8-pin X-coded connector that provides
communication capabilities at 10 Mbit/sec, 100 Mbit/sec, or 1 Gbit/sec (1000 Mbit/sec).

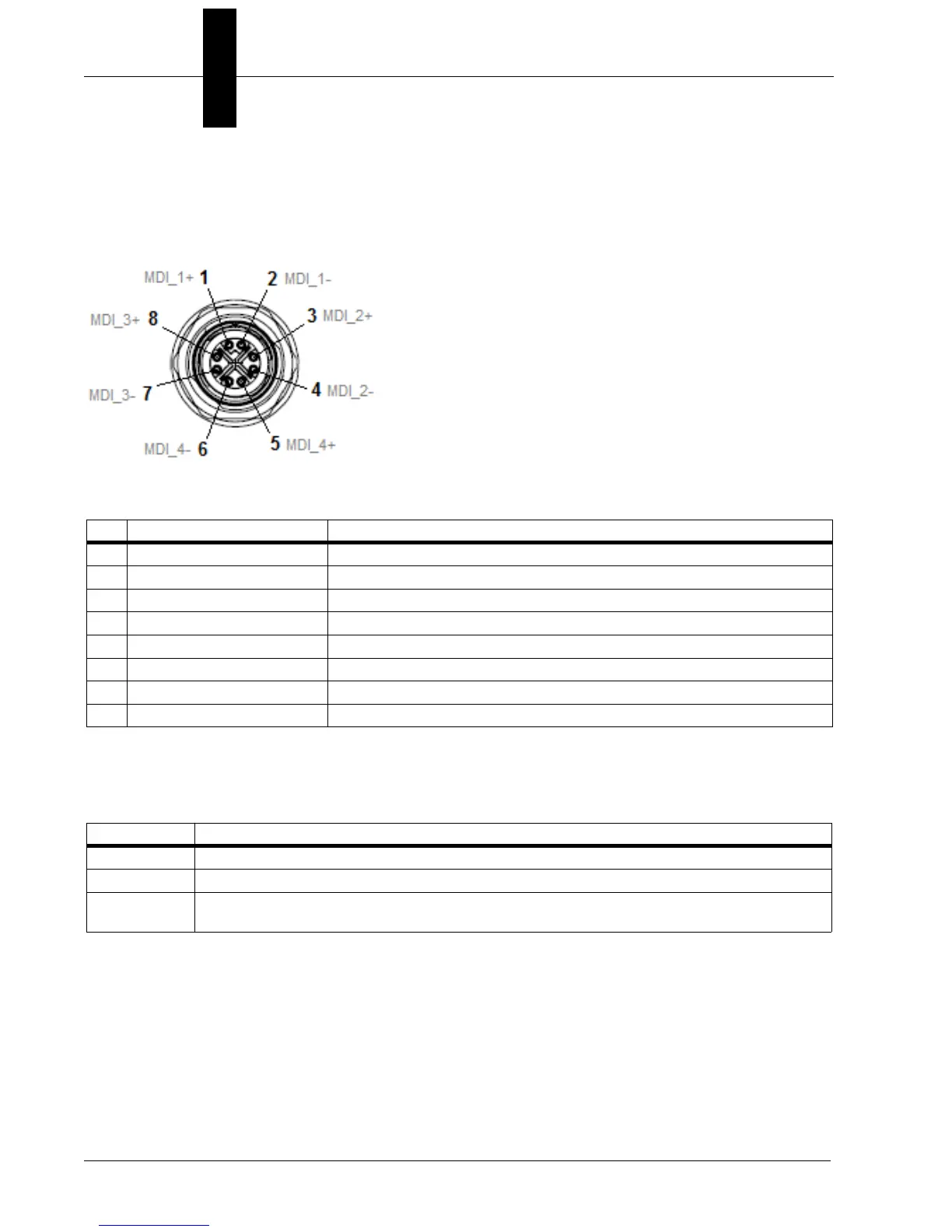

The pinout for the Ethernet connector is as follows:
To interface with this connector, you can use either a Microscan accessory cable or you
can purchase a similar cable from an alternate source. For an alternate source of
100/1000 Base-T cables, contact:
Pin Signal Name Description
1 MDI_1+ Bidirectional data A+
2 MDI_1– Bidirectional data A–
3 MDI_2+ Bidirectional data B+
4 MDI_2– Bidirectional data B–
5 MDI_4+ Bidirectional data D+
6 MDI_4– Bidirectional data D–
7 MDI_3– Bidirectional data C–
8 MDI_3+ Bidirectional data C+
Cable Information
Manufacturer Phoenix Contact GmbH and Co. KG
Part Number NBC-MSX/5.0-94F/R4AC SCO Order No.: 1407473
Description
Assembled Ethernet Cable, CAT6A, 8-Position, PUR, RAL 5021 (Water Blue), Plug Straight M12
SPEEDCON / IP67, Coding: X, ON Plug Straight RJ45 / IP20, 5 m
