VGA/USB Connector
The VGA/USB connector is an M12 12-pin plug connector that transmits output video and
can both transmit and receive USB signals. The output video signal is a standard RGB
analog video output used to send the operating system’s desktop to the connected display
device. The video output can be used to display the desktop.
The table below summarizes the supported standard display resolutions:

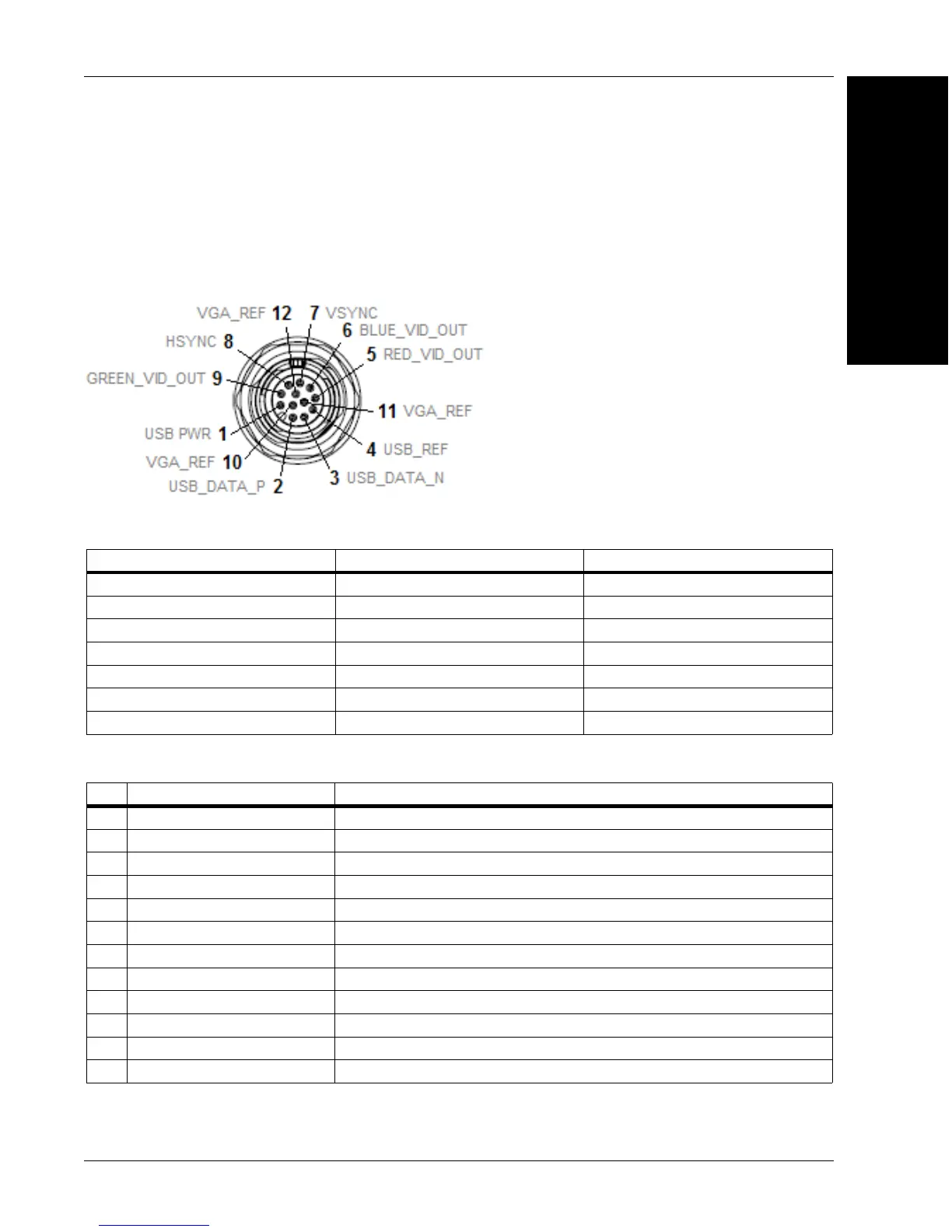

The pinout for the VGA/USB connector is as follows:
Standard Display Resolution Analog Video Maximum Refresh Rate
1920 x 1200 RGB 60 Hz
1920 x 1080 RGB 60 Hz
1600 x 1200 RGB 60 Hz
1280 x 1024 RGB 85 Hz
1024 x 768 RGB 85 Hz
800 x 600 RGB 85 Hz
640 x 480 RGB 85 Hz
Pin Signal Name Description
1 USB PWR 5 V supplied from your HAWK MV-4000 to USB peripherals.
2 USB_DATA_P USB data +
3 USB_DATA_N USB data –
4 USB_REF USB reference
5 RED_VID_OUT R component of the RGB video output signal
6 BLUE_VID_OUT B component of the RGB video output signal
7 VSYNC Vertical sync of the RGB video output signal
8 HSYNCH Horizontal sync of the RGB video output signal
9 GREEN_VID_OUT G component of the RGB video output signal
10 VGA _REF VGA reference
11 VGA _REF VGA reference
12 VGA _REF VGA reference
