Mounting, Connecting, and Wiring
System Components
2
HAWK MV-4000 Smart Camera Guide 2-11
Mounting, Connecting, and Wiring
Mounting the HAWK MV-4000
• Mount the camera (1) securely as required by the application.

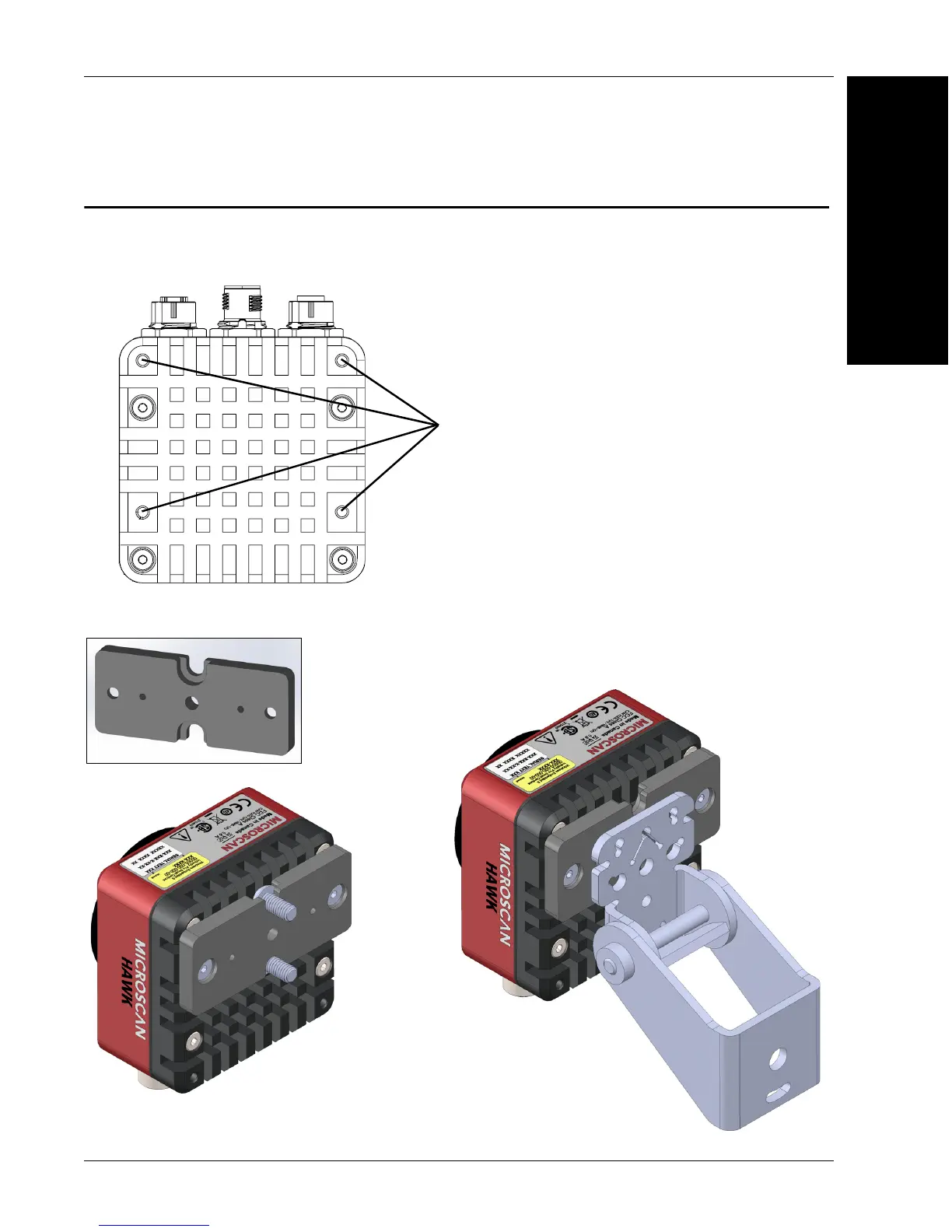

Universal Mount and APG Mount
Mounting holes
(M4x0.7 thread,
4 mm deep)
¼-20 tripod
mounting hole
Mounts on standard tubing
with 6 mm hardware.
Adapter to
standard
APG mount.
To Next Page
