B-6
HAWK MV-4000 Smar
t Camera
Guide
Appendix
B
Cable Specifications
99-000020-02 Trigger, M12 4-
P
i
n Plug, NPN, Dark On, 2 m
The 99-000020-0
2
Trigg
er, M12 4-pin
Plug, NPN, Dark On, 2 m is a ph
oto sensor with a
4-pin M12 connector.

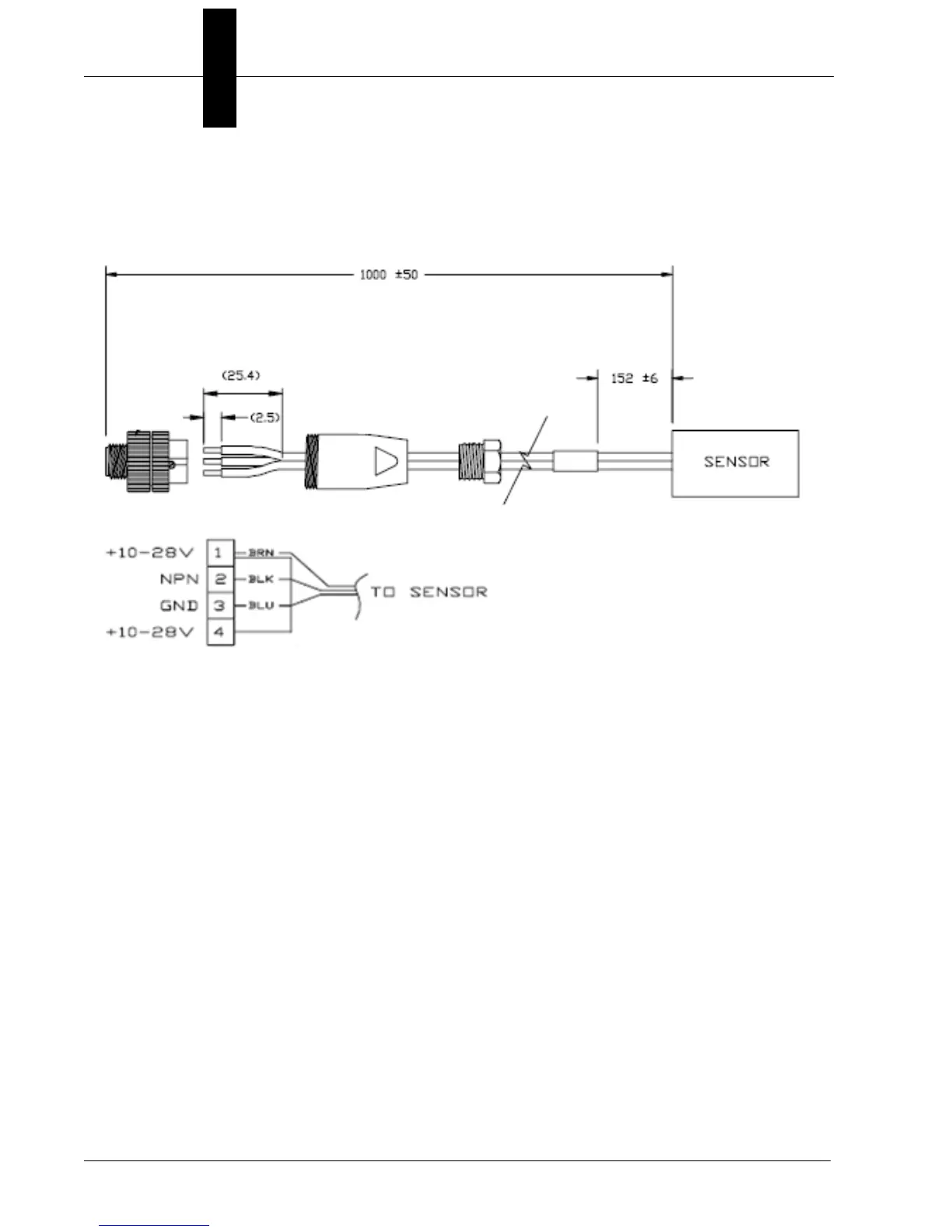

99-000020-02 Schematic
