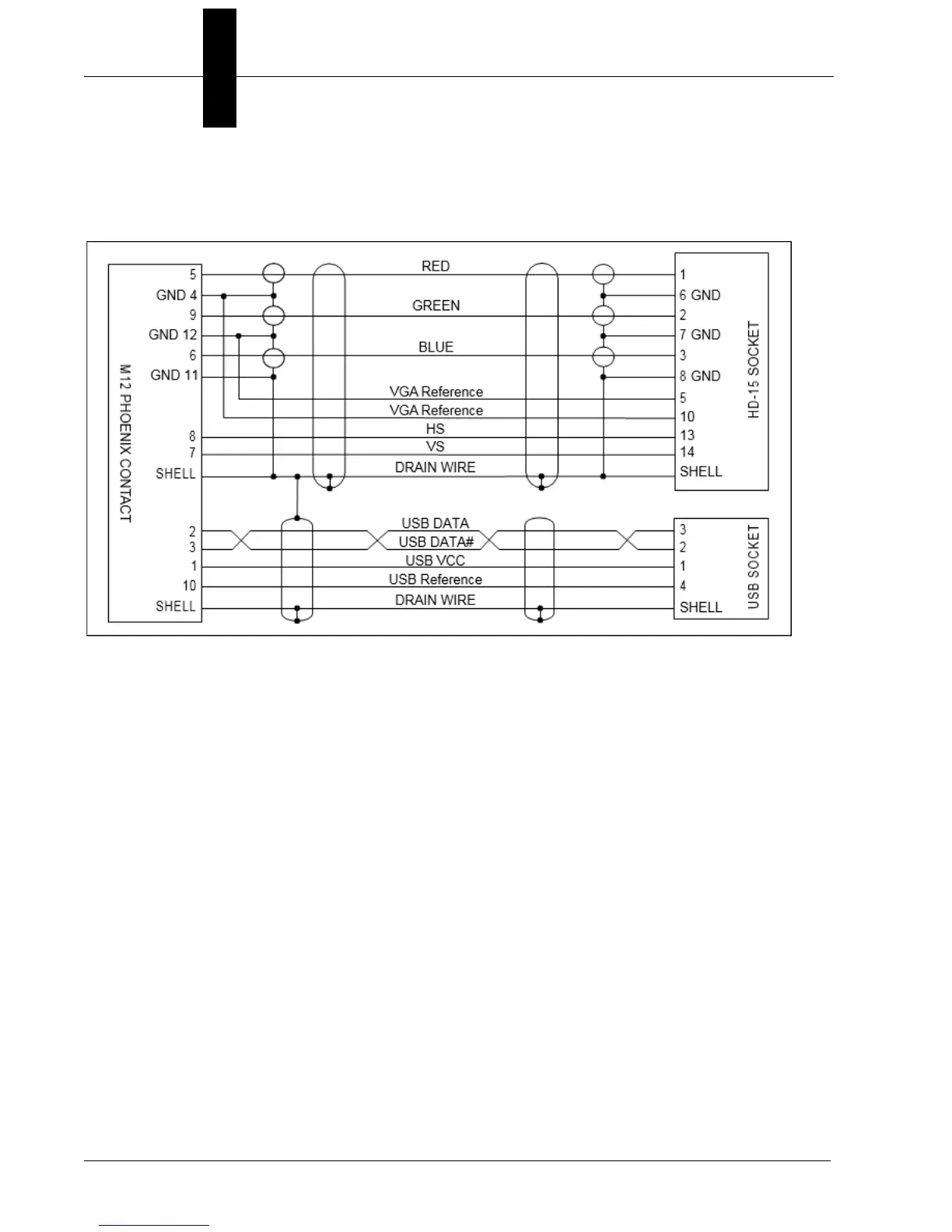

The following is a wire-diagram of the VGA/USB cable, showing the connection between
the HAWK MV-4000 VGA/USB connector on one end and the HD-15 and USB connectors
on the other.
This cable can be purchased separately from Microscan (61-9000147-01). A USB only
cable (no VGA connector) can also be purchased from Microscan (61-9000143-01).
