Chapter 2 System Components
2-18 HAWK MV-4000 Smart Camera Guide

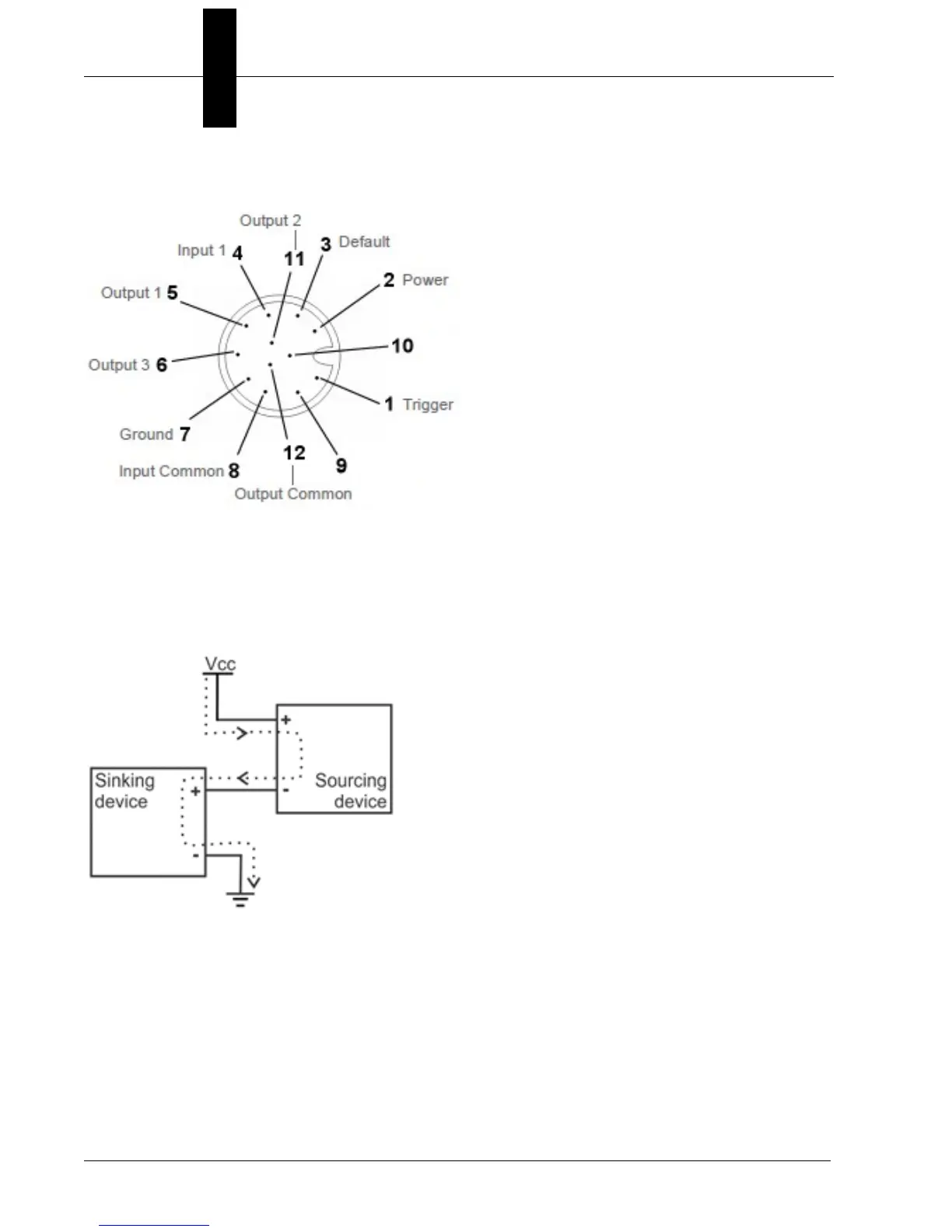

Adapter Cable M12 12 Pin Plug – Power, I/O and Serial (61-9000132-01)
Note that sinking and sourcing concepts refer to the conventional current flow, which
means current flows from the positive potential towards the negative potential. A sinking
device provides a path to sink current toward ground or to the return path. A sinking device
does not provide power. A sourcing device provides a path that sources current; it
provides a path from the power source. In the following diagram, the device on the right is
the sourcing device, and the device on the left is the sinking device.
(Equivalent circuit only.)
