Chapter 2 System Components
2-24 HAWK MV-4000 Smart Camera Guide

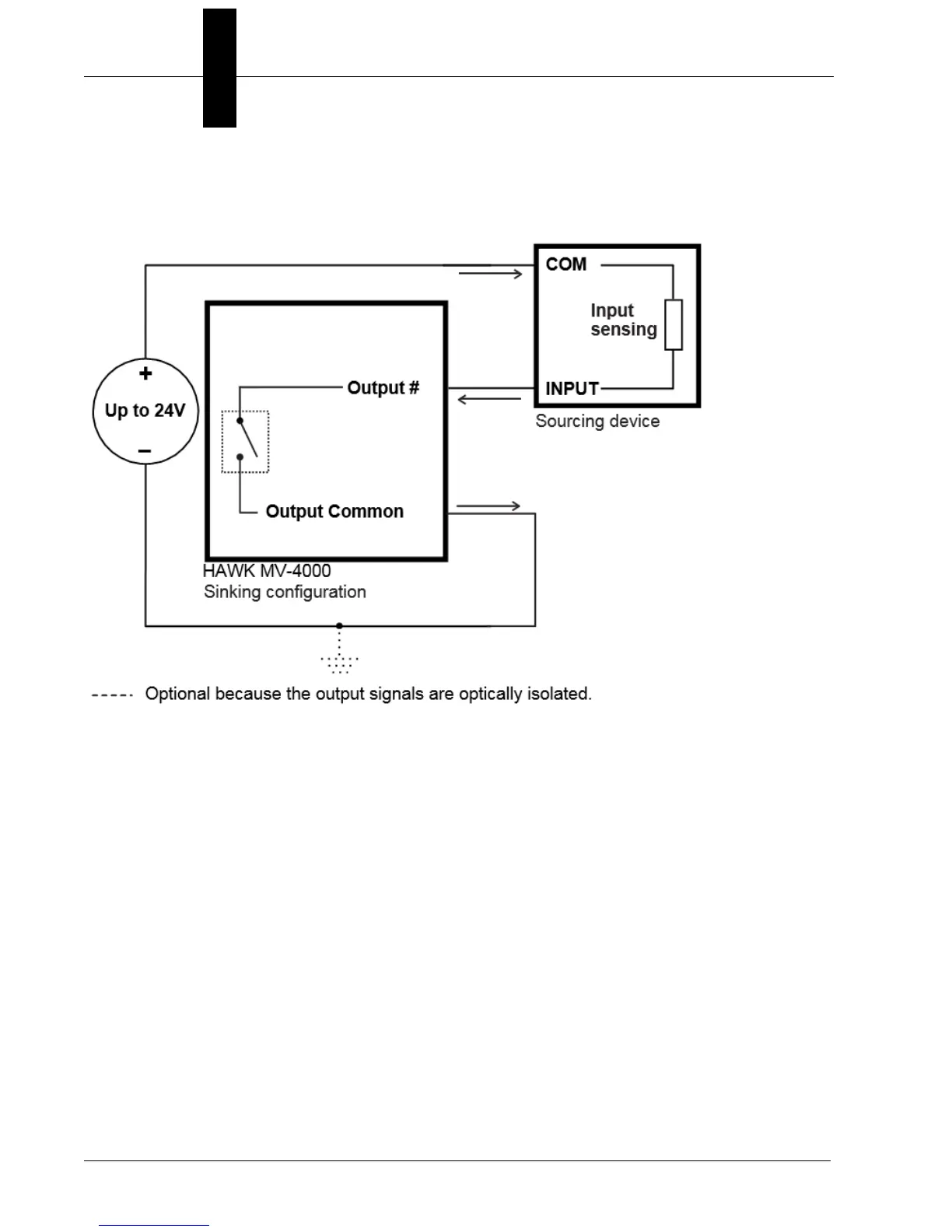

Connecting an Output Signal To a Sourcing Input
Connect a HAWK MV-4000 output signal to a sourcing input, as shown below.
(Equivalent circuit only.)
Note: When connecting a resistive load sourcing device instead of an input sensing
sourcing device, the same connection would be used as displayed above.
