Chapter 3 Lighting
3-4 HAWK MV-4000 Smart Camera Guide

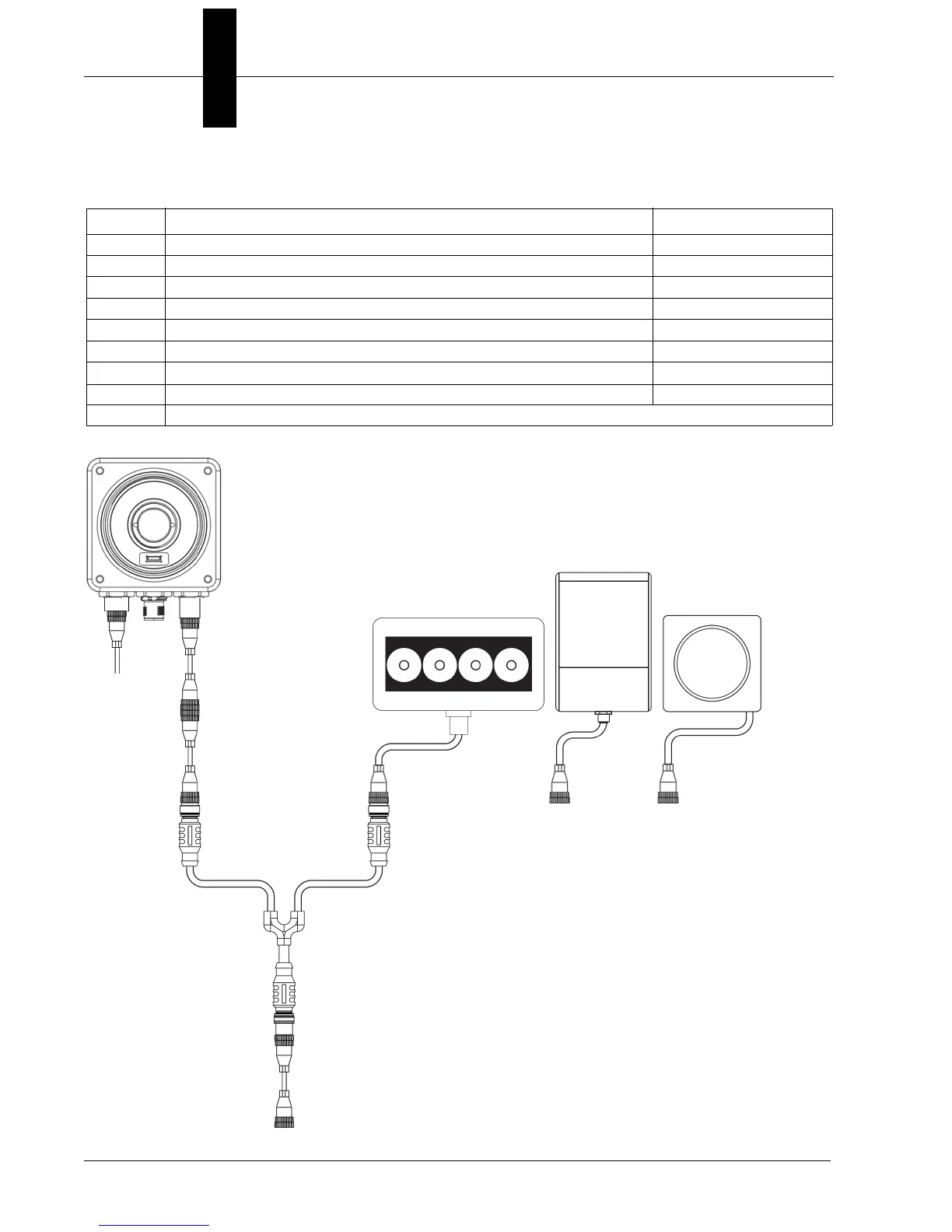

HAWK MV-4000 and Smart Series Light Configuration: Y-Cable
Item Description Part Number
1 Smart Series Light NER-011660XXXG
2 Assembly, Cable, QX-1 to Smart Series and Camera, Power 61-9000135-01
or
Assembly, Cable, QX-1 to Smart Series and Camera, On/Off 61-9000136-01
or Assembly, Cable, QX-1 to Smart Series and Camera, Strobe 61-9000137-01
3
Cordset, Common, M12 12-Pin Socket to M12 12-Pin Plug, 1 m 61-000162-02
or Cordset, Common, M12 12-Pin Socket to M12 12-Pin Plug, 3 m 61-000148-02
4
Cable, Adapter, HAWK MV-4000 to QX-1 61-9000132-01
5 Cordset, Host, Ethernet, M12 8-Pin Plug to RJ45, 1 m 61-000134-0X
6 HAWK MV-4000 Smart Camera
1
1
1
3
4
5
2
6
