7) press [↑], [ ↓], [←], [ →] to move figure
8) [X], [Y], [G] to zoom in/out and recover figure size
3.2.2 cutting position adjustment
Following situations need to adjust torch position
1) torch is blocked, or need to change a new one, put torch to a safe place, then put it
back the start point after change.
2) When outside edge pierce, don’t hope to put the pierce point the outside of the
workpiece, find a proper position at the outside of the workpiece, cut to the start point
along straight line after pierce
3) Change cutting, a lot of workpieces and big size of plates, change cutting position
Following situations need to adjust cutting position
(1)pause, (2) back, (3) pierce, (4) section, (5) choose hole, (6) break point recovery
if want to change torch position during above states, can press [↑], [ ↓], [←], [ →] to
directly adjust torch position (this moment is manual multiplying power), then press
[Start]
3.3 Operation after pause during cutting
1. after pause, don’t move torch, only forward/backward
Check pause operation, press [1] torch goes backward along previous track, if go backward
so much, press [0] to continue forward, pause at the appointed position, press [Start] to
continue, then there is a tip “arc/ignition”
2. after pause, move torch, continue cutting
After pause, press direction keys [↑], [ ↓], [←], [ →] to move torch, then press [Start], there is

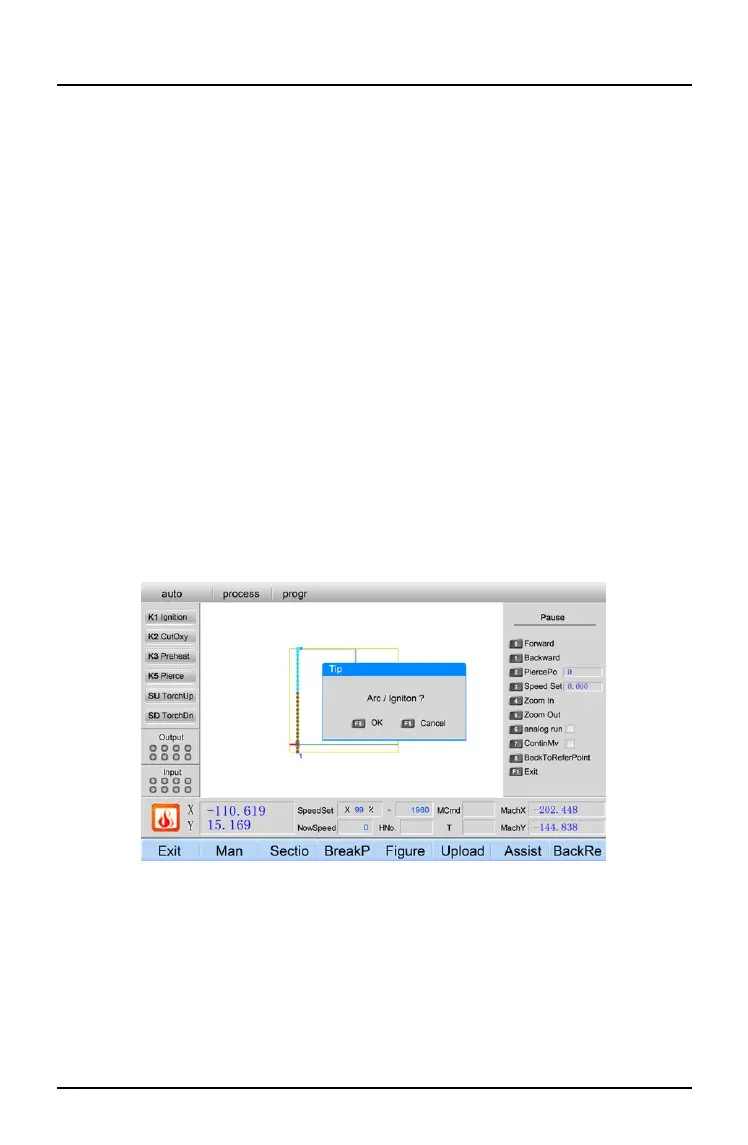

a tip as below
Common Back: move torch to break point at idle- run speed, and wait for further operation,
this moment can press strong-current function keys (such as ignition, preheat pierce, open
cut oxygen, etc), or directly press [Start], then there is tip “arc/ignition?”
Cutting Back: pierce, cut to break point along shortest distance, continue left cutting at
current speed, like outside edge pierce, to make pierce point more smooth
Local Continue: pierce, make current coordinate as “adjusting start point” coordinate,
continue cutting along previous track, to change pierce.
