page: 36
2. Voltage divider board (9 pins) definition
No. Property Instruction
2 power 24V ground, torch height controller power
5 power 24V ground, torch height controller power
6 output Arc voltage signal，plasma torch height signal
9 power 24V +,torch height controller power

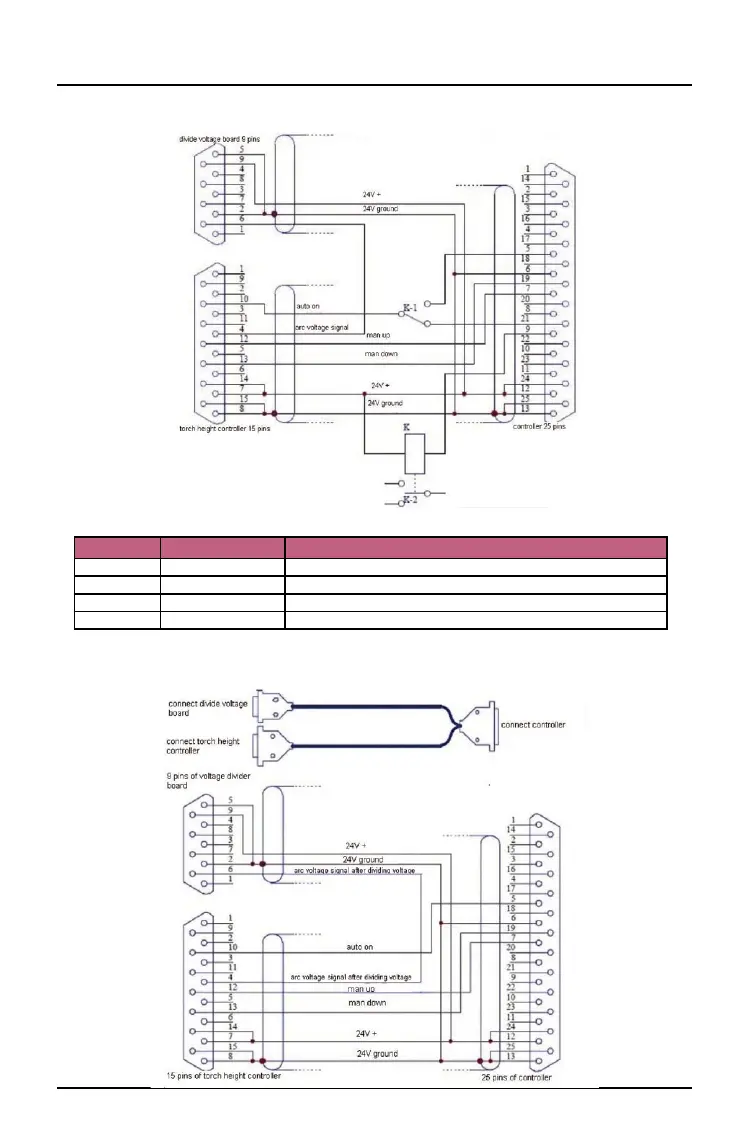

3. Arc-voltage torch height controller connection
1. Arc-voltage & capacitive torch height controller integration connection
