page: 37

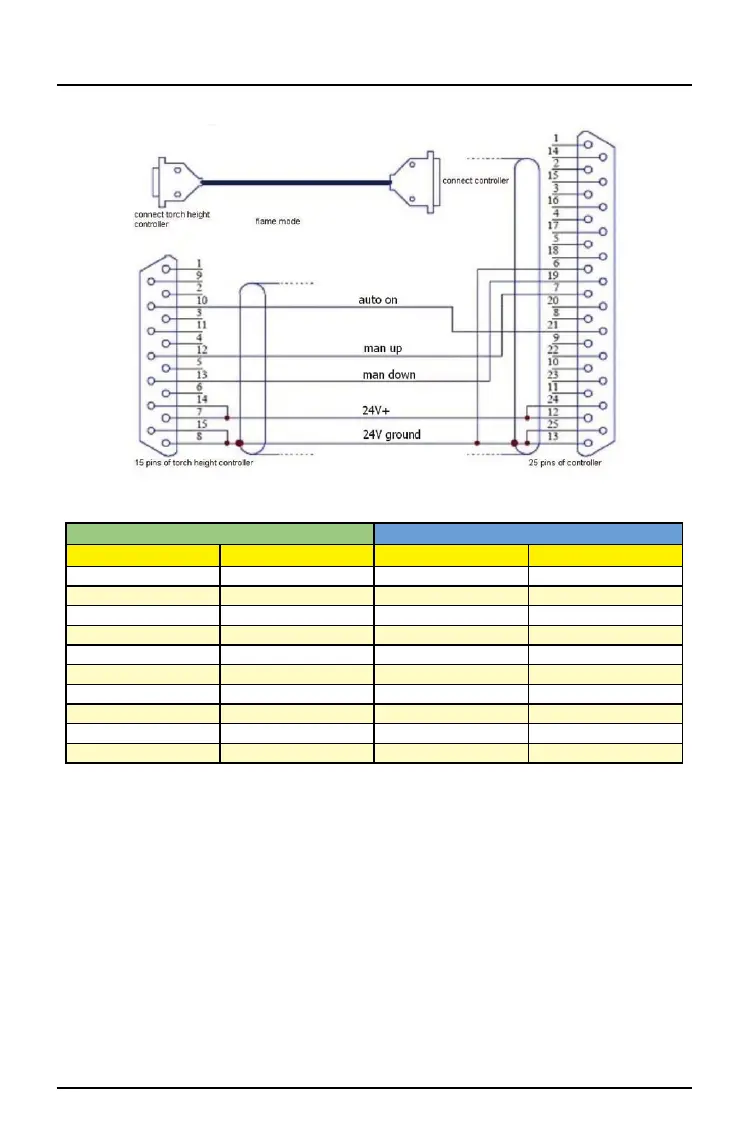

4. Capacitive torch height controller connection
Appendix 3: remote control connection definition
15 pins of controller 15 pins of remote control
No. Definition No. Definition
1 24V 1 24V
2 TXD 2 RXD
3 RXD 3 TXD
8 24G 8 24G
9 I8 9 EN
10 I9 10 S1
11 I10 11 S2
12 I11 12 S3
13 I12 13 S4
15 24G 15 24G
Appendix 4：CC-S1 upgrade operation
Function: controller can upgrade by U disk
Procedures:
1. Copy upgrade files of CCS.UPD and CCS1.UPD in U disk and insert U disk into USB port
2. in main menu, press “G”, “G”, “9”, appear upgrade tip, press [F8] to confirm, enter
upgrade interface in 5s
3. If upgrade succeeds, screen will show ‘successful upgrade, it’s ok to turn on it again”
and buzzes one time.
If upgrade fails, screen will show “upgrade fails” and buzzes continuously.
4. After upgrade, turn off the controller, pull out U disk, and turn on the controller again, the
screen will show new version number.
