Chapter 1 Controller functions overview and main menu
1. Controller functions
CC-S1 CNC cutting controller is used for flame and plasma cutting machines.
2. Controller features
1.2.1 CC-S1 CNC cutting controller is used for flame and plasma cutting machines.
1.2.2 It has a reliable design, anti-plasma interference, lightning proof and surge proof.
1.2.3 It has perfect flame/plasma cutting technology. Corner speed control is automatically
finished when plasma cutting. It can work with the torch height controller and remote
control.
1.2.4 Kerf compensation function.
1.2.5 Automatically remember breakpoints, breakpoint recover; automatically recover after
power off, record latest 3 breakpoints.
1.2.6 Choose any section and pierce point to cut.
1.2.7 Outside edge pierce for thick plate, bridge for thin plate.
1.2.8 Pause, backward, forward during cutting any time, more convenient.
1.2.9 Change cutting anytime.
1.2.10 Special small section cutting is smoother.
1.2.11 There are 24 common figures in part library.
1.2.12 It’s compatible with IBE, FASTCAM and other nesting softwares.
1.2.13 Dynamic figure display, 1~8 times of figure zoom in, automatically follows by point.
1.2.14 Big store space of 4G, it can contain 10000 programs, support folder management.
1.2.15 Read programs and controller upgrade by U disk.
1.2.16 Perfect cutting parameters settings, including parameters backups, input and output
as well as settings in bulk.
1.2.17 Multi-level management permission setting and set operation permission according
to the date.
3. Hardware technical parameters
Processor: industrial ARM processing chip
Screen: 7” color LCD
Input/output: 13 optical isolation input, 8 optical isolation output
Axis: 2 axis, 4 axis is available
Pulse equivalent: electrical gear numerator & denominator range (1 ~ 65535)
store space: 4G
Working temperature: 0℃ ～ +40℃
Store temperature: -40℃ ～ +60℃

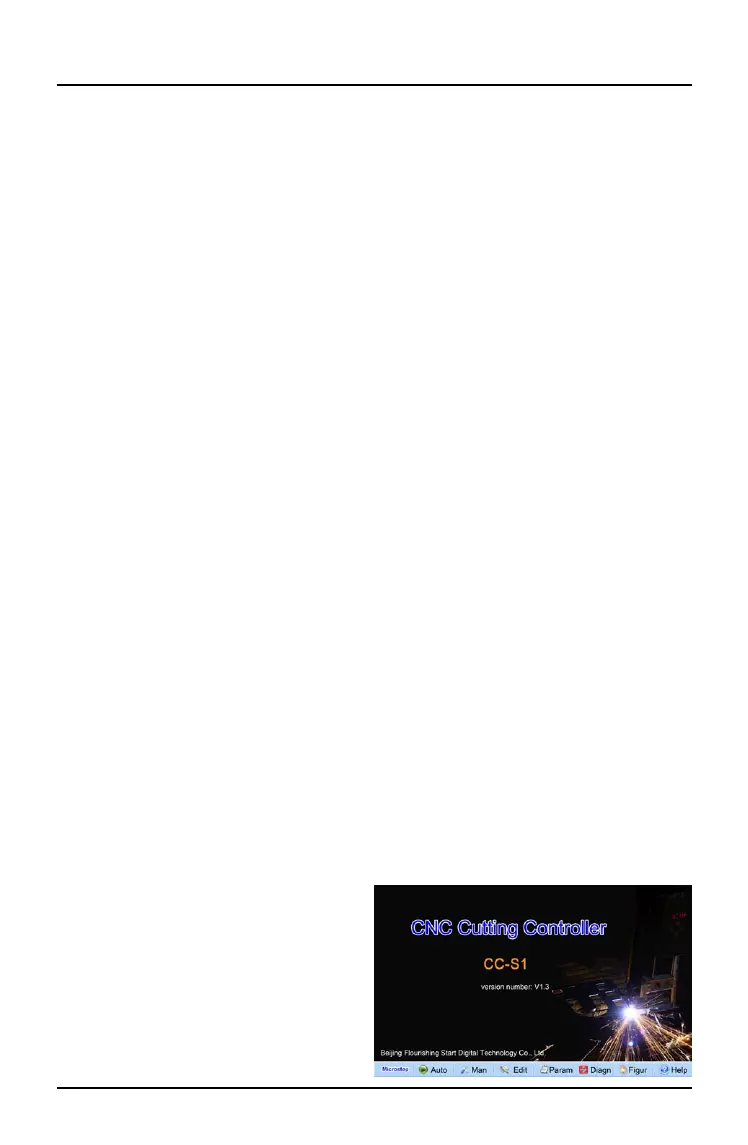

4. Controller main menu
To Next Page
