MicroStep CC-S1 User Manual

Microstep Website http://www.microstep.cc/eng
北京欣斯达特数字科技有限公司 Beijing Flourishing Start Digital Technology Co., Ltd
page: 32

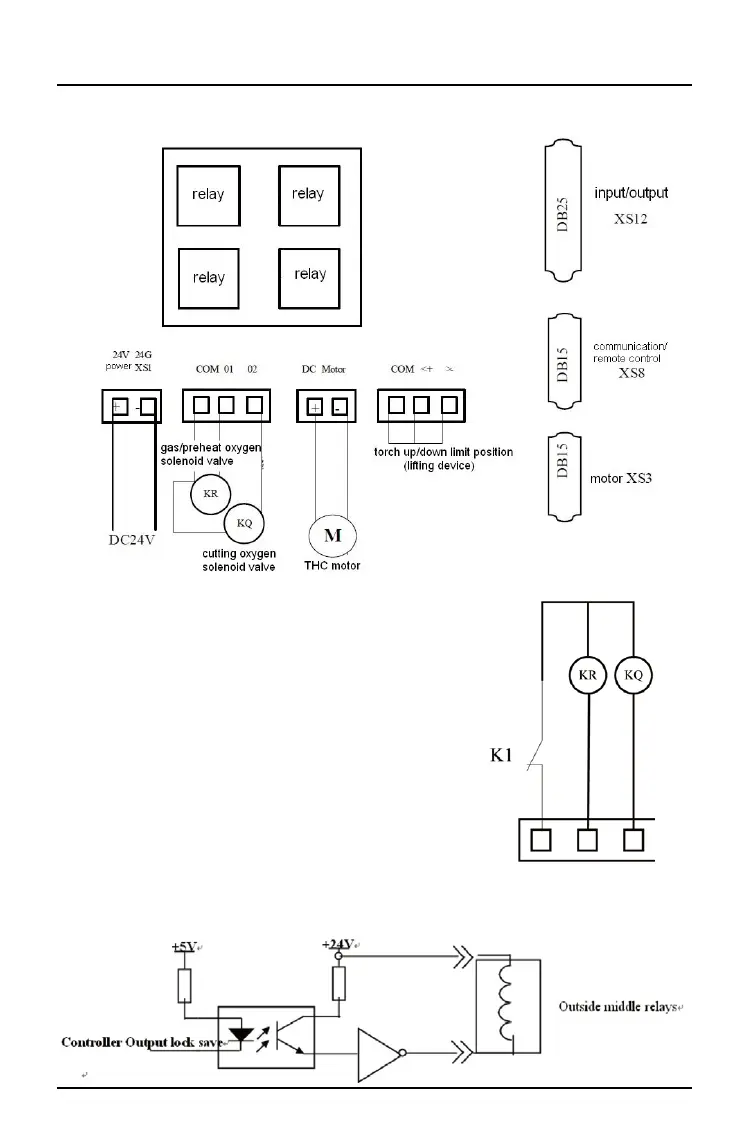

10.3.5 Plasma cutting conneciton (next page)
10.3.6 Flame/plasma integration
If flame/plasma integration is used, beside the above
connection, a change switch K1 of flame/plasma is
needed, connection as below,
(1) KR acetylene (gas) magnetic valve
(2) kQ cutting oxygen magnetic valve
(3) If not connect acetylene (gas) magnetic valve, it's OK
not to connect gas contact point
(4) K1 is a relay (M20) of flame/plasma change-over
10.4 Output connection
10.4.1 Output principle
