Midea MV5-X252W/V2GN1 User Manual

V5 X VRF 50/60Hz
201608 13
Part 2 - Component Layout and Refrigerant Circuits
MV5-X400W/V2GN1 / MV5-X450W/V2GN1 / MV5-X500W/V2GN1/ MV5-X560W/V2GN1 /
MV5-X615W/V2GN1

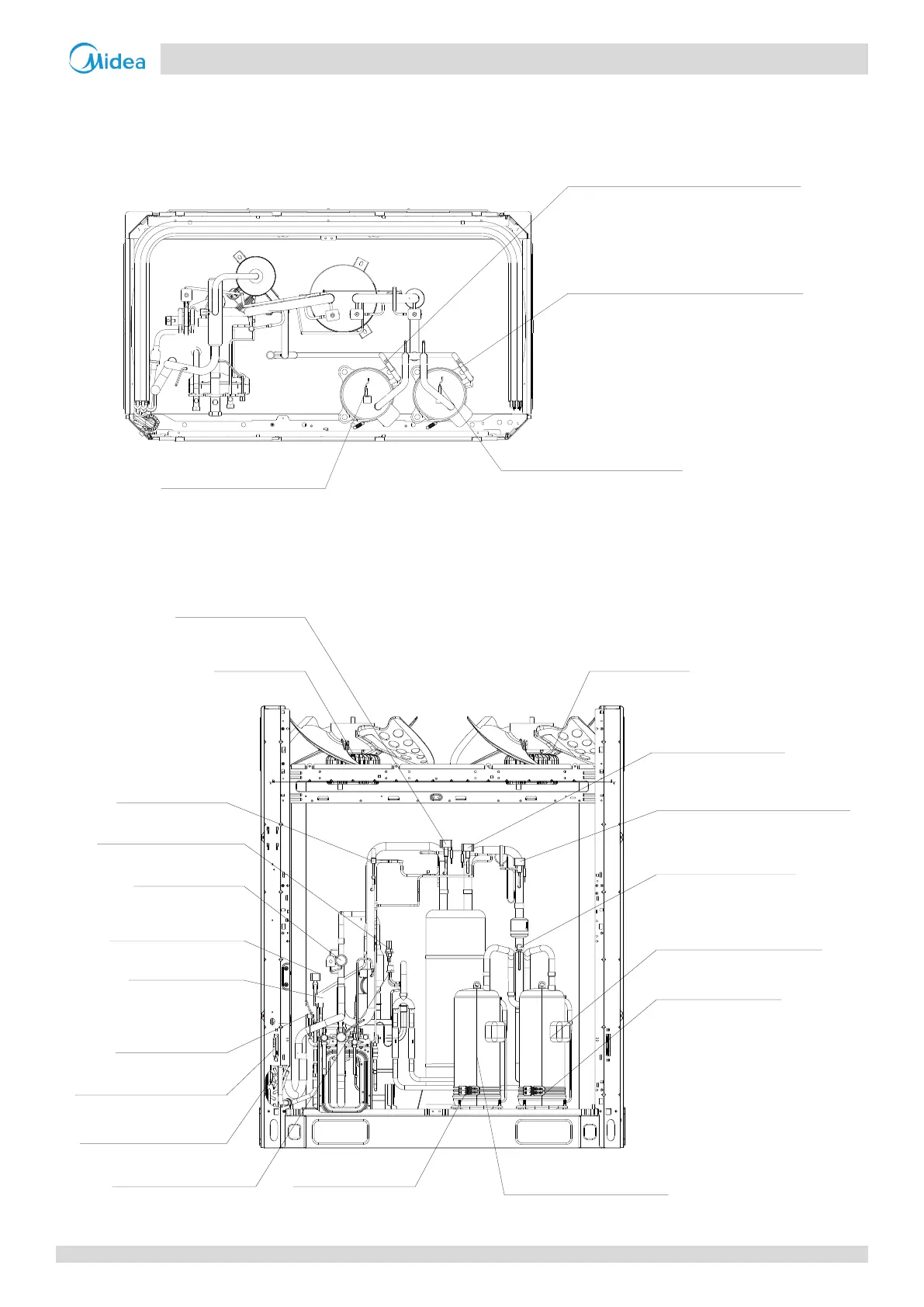

Figure 2-2.3: MV5-X400(450, 500, 560, 615)W/V2GN1 top view
Compressor top
temperature sensor
Compressor top
temperature sensor
Discharge temperature switch
Discharge temperature switch
Figure 2-2.4: MV5-X400(450, 500, 560, 615)W/V2GN1 front view
Solenoid valve SV5
(fast defrosting)
DC fan motor
DC fan motor
Solenoid valve SV4
(oil balance)
Solenoid valve SV2
(liquid refrigerant injection)
Low pressure switch
Crankcase heater
DC inverter compressor
Crankcase heater
High pressure switch
DC inverter compressor
Heat exchanger
temperature sensor
Outdoor ambient
temperature sensor
Electronic
expansion valve
Solenoid valve SV6
(EXV bypass)
Four-way valve
High pressure sensor
Unloading valve
Electronic
expansion valve
