Midea V5 X Series Service Manual
4.19 P5 Troubleshooting

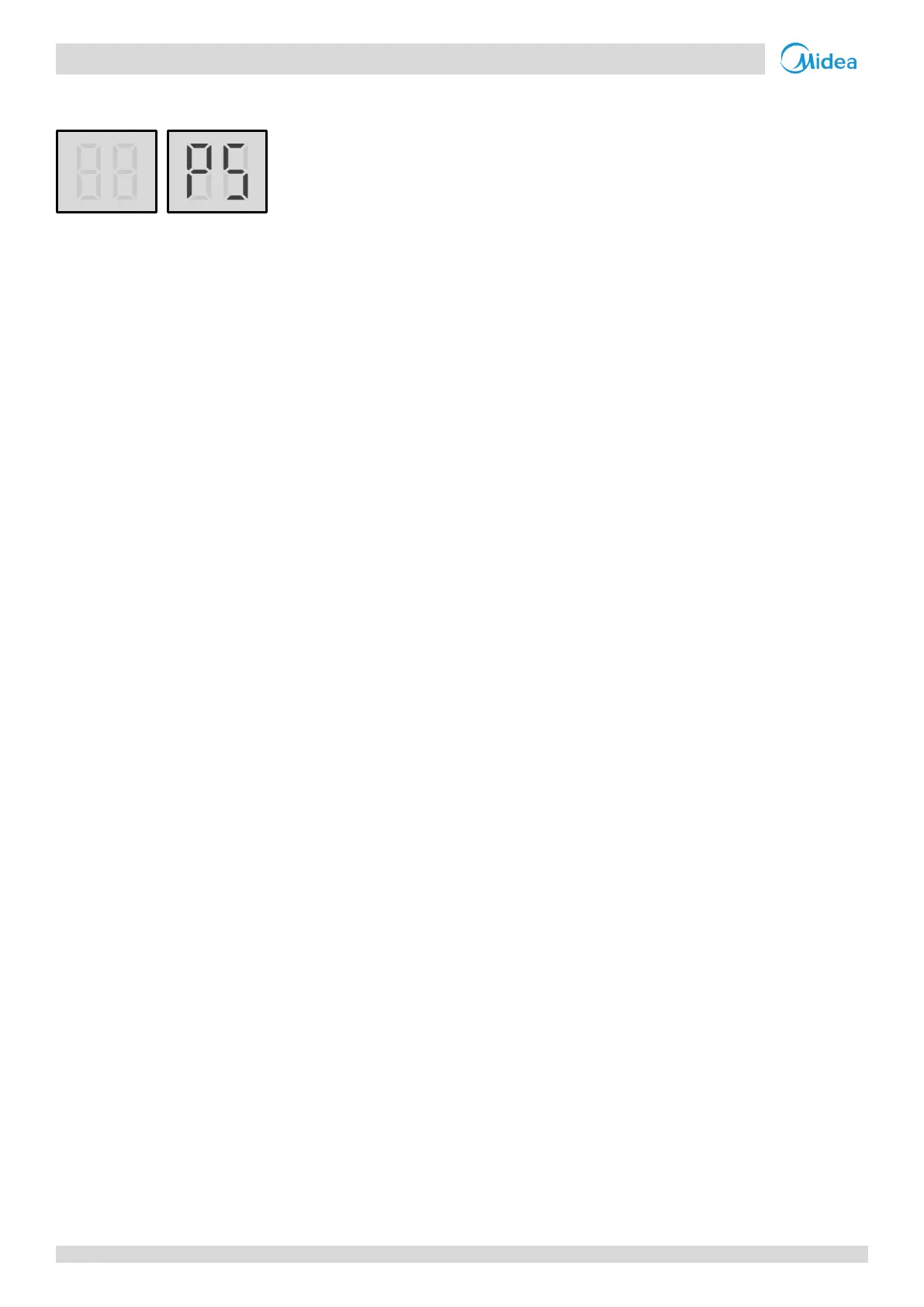

Digital display output 4.19.1
Description 4.19.2
 Outdoor heat exchanger temperature protection. When the outdoor heat exchanger temperature rises above 65
o
C,
the system displays P5 protection and all units stop running. When the temperature returns to the normal range, P5 is
removed and normal operation resumes.
 Error code is only displayed on the unit with the error.
Possible causes 4.19.3
 Outdoor unit stop valves are closed.
 Temperature sensor not connected properly or has malfunctioned.
 Indoor load too large.
 System contains air or nitrogen.
 Poor condenser heat exchange.
 High pressure side blockage.
 Main PCB damaged.
