Midea MV5-X252W/V2GN1 User Manual

V5 X VRF 50/60Hz
42 201608
Midea V5 X Series Service Manual

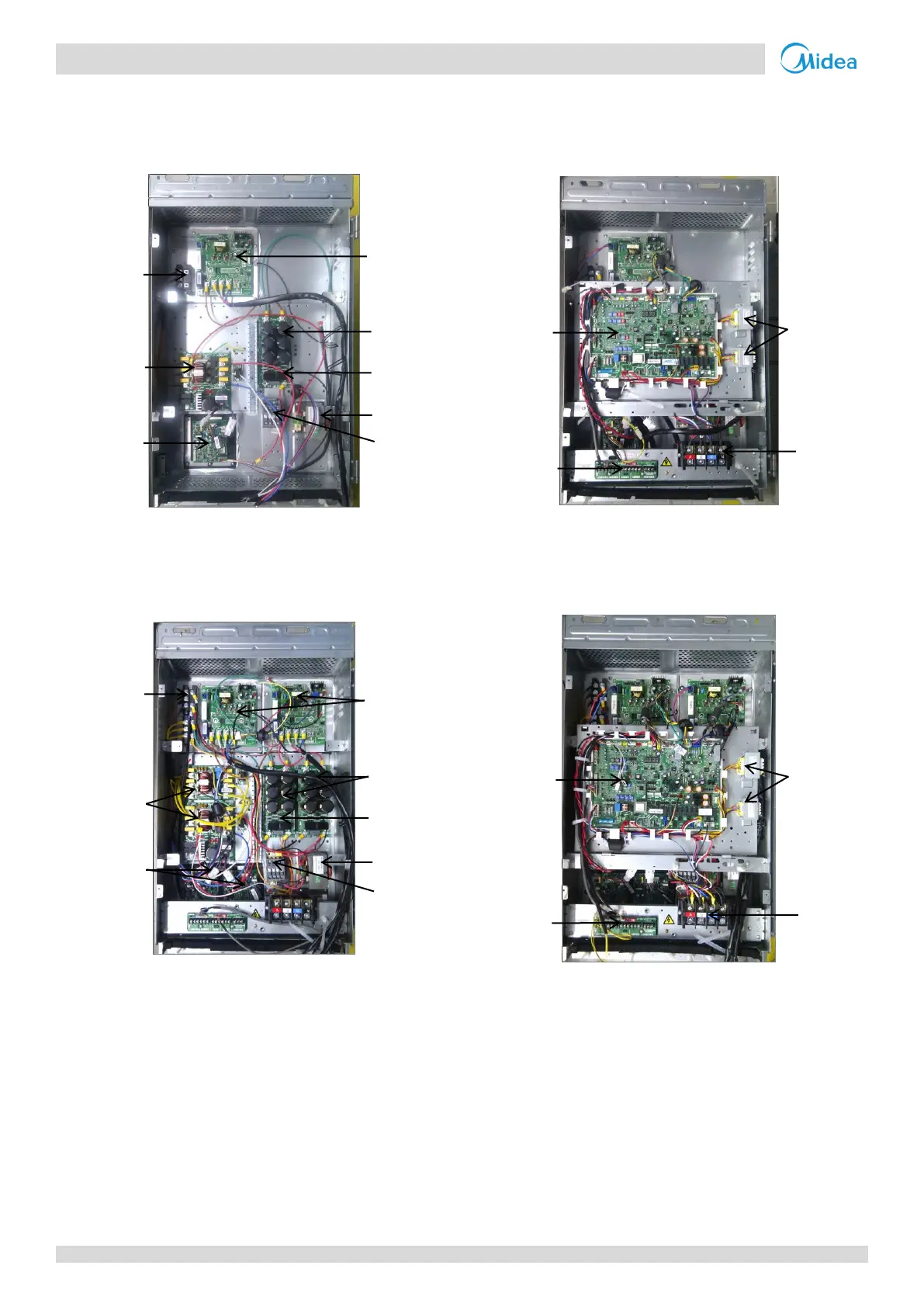

1 Outdoor Unit Electric Control Box Layout
MV5-X252W/V2GN1 / MV5-X280W/V2GN1 / MV5-X335W/V2GN1
Figure 5-1.1: Bottom layer of electric control box
Figure 5-1.2: Top layer of electric control box
MV5-X400W/V2GN1 / MV5-X450W/V2GN1 / MV5-X500W/V2GN1/ MV5-X560W/V2GN1 / MV5-X615W/V2GN1
Figure 5-1.3: Bottom layer of electric control box
Figure 5-1.4: Top layer of electric control box
Transformers
Power supply
terminals
Communication
terminals block
Main PCB
Reactor
Three-phase
bridge rectifier
Inverter module
DC filter board
Fan module
PTC thermistor
Contactor
AC filter board
Inverter
modules
DC filter boards
PTC thermistor
Reactor
Contactor
Three-phase
bridge rectifier
Fan modules
AC filter boards
Transformers
Power supply
terminals
Communication
terminals block
Main PCB
