Midea VRF Series User Manual

V6R VRF 50/60Hz
62
Midea
V6R
Series Service Manual
2.2 Components
Layout

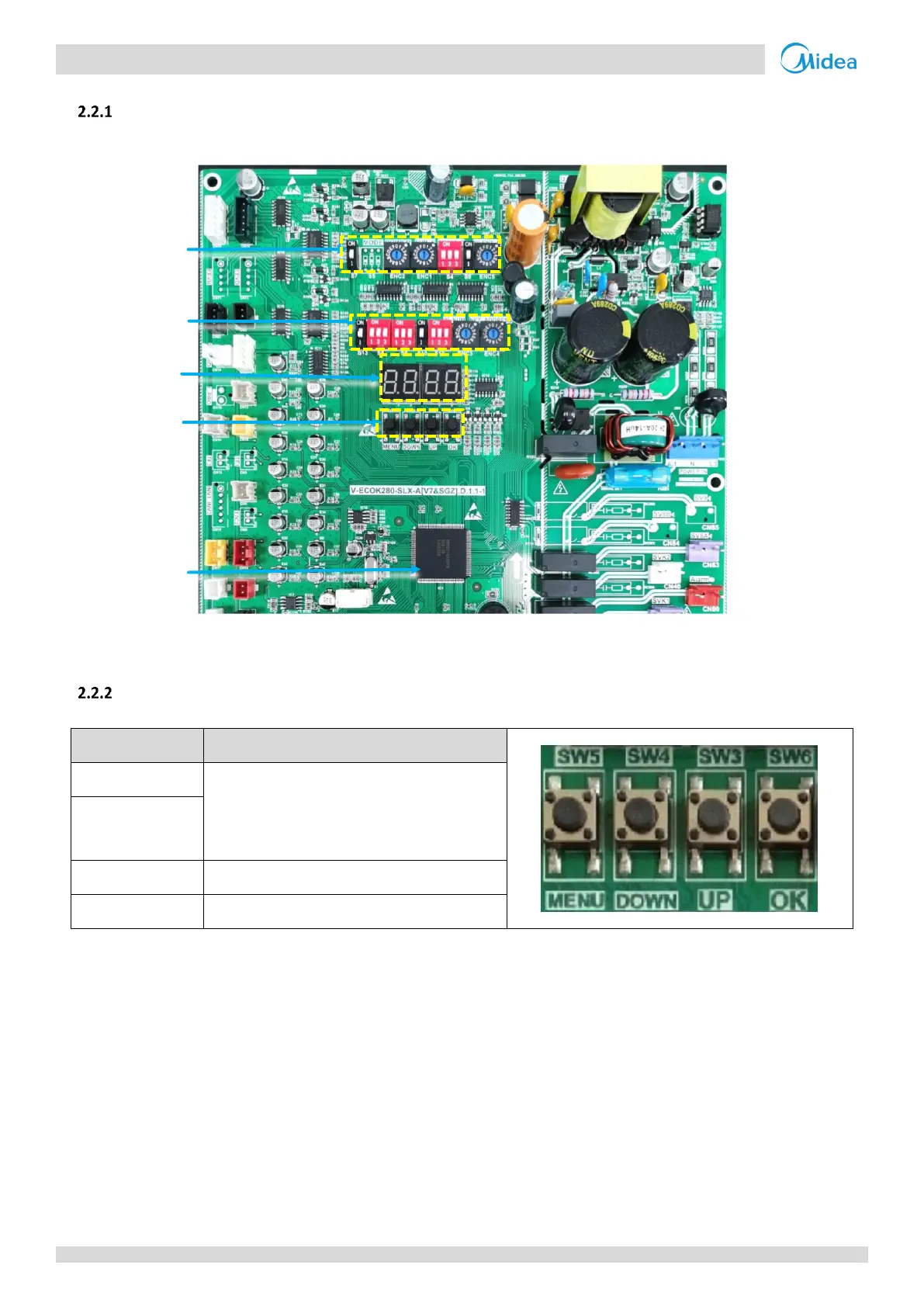

Figure 5-2.2: Outdoor unit main PCB components
Function of buttons SW3 to SW6
Table 5-2.2: Function of buttons SW3 to SW6
Button
Function
SW3 (UP)
In menu mode: previous and next buttons for
menu modes.
Not in menu mode: previous and next buttons for
system check information.
SW4 (DOWN)
SW5 (MENU)
Enter / exit menu mode.
SW6 (OK)
Confirm to enter specified menu mode.
Dial switches
Digital display
Dial switches
Buttons
Main control chip

Midea VRF Series Specifications

General

Compressor Type	Inverter Scroll Compressor
Type	Variable Refrigerant Flow (VRF)
Refrigerant	R410A
Control	Centralized control, individual control
Indoor Unit Types	Wall mounted, cassette, ducted, floor standing
Energy Efficiency	High energy efficiency with DC inverter technology
Indoor Unit Noise Level	19 dB(A) to 45 dB(A)
