Midea VRF Series User Manual

V6R VRF 50/60Hz
63
Part 5
-
Electrical Components and Wiring Diagrams
Menu mode
Only master unit has the full menu functions, slave units only have error codes check and cleaning functions.
1. Long press SW5 “MENU” button for 5 seconds to enter menu mode, and the digital display displays “n1”;
2. Press SW3 / SW4 “UP / DOWN” button to select the first level menu “n1”, “n2”, “n3”, “n4” or “nb”;
3. Press SW6 “OK” button to enter specified first level menu, for example, enter “n4” mode;
4. Press SW3 / SW4 “UP / DOWN” button to select the second level menu from “n41” to “n47”;
5. Press SW6 “OK” button to enter specified second level menu, for example, enter “n43” mode;

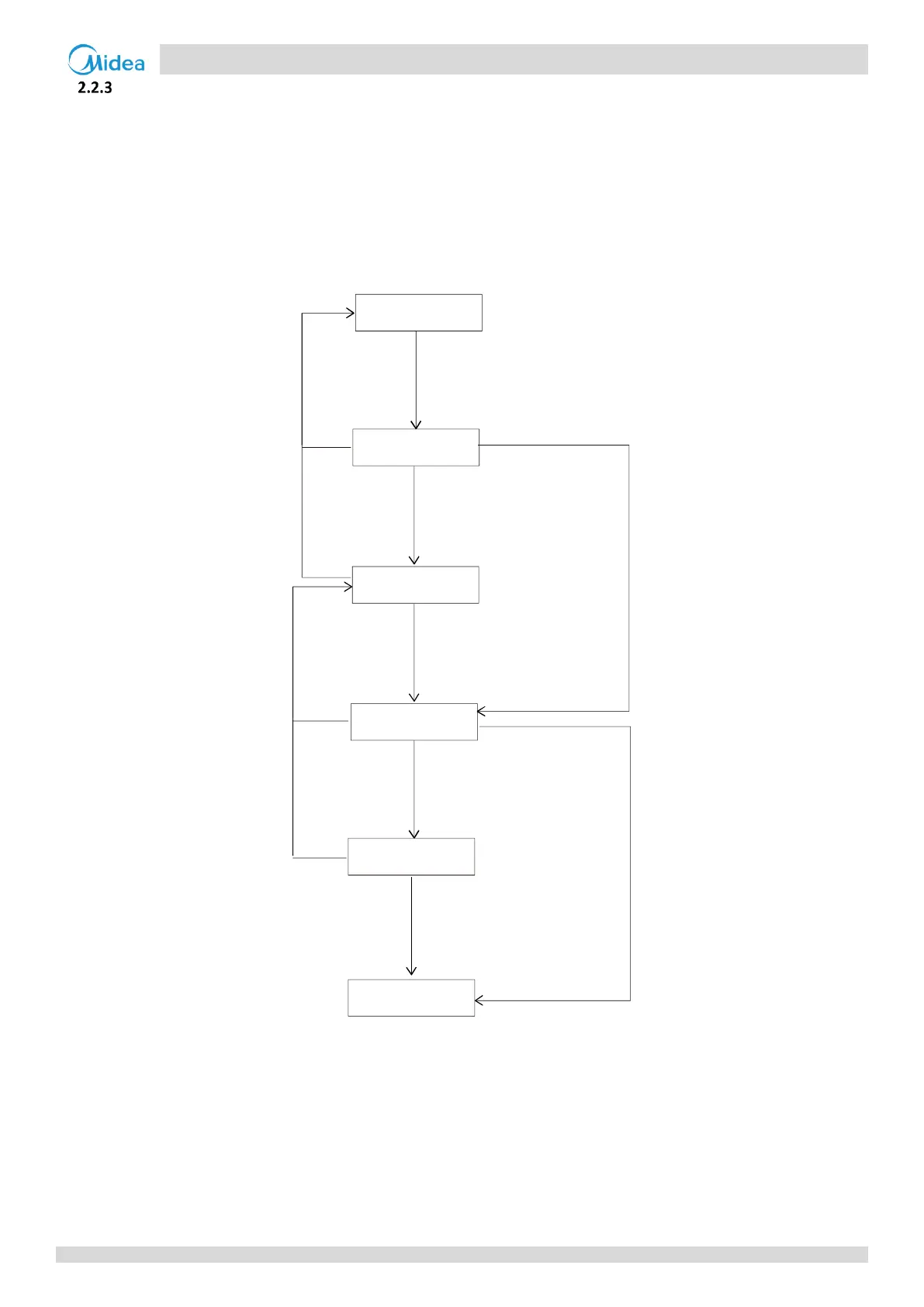

Menu mode selection flowchart:
Start
Long press “menu” 5 seconds
Display "-n1"
Press “menu”
Display "-nX"
Press "up" or "down" to
choose "X"
Press “OK” to confirm "X"
Display "-nXY"
Display "-nXY"
Press "up" or "down"
to choose "Y"
Press "OK" to confirm "Y"
Press "OK" to confirm "Y"
Press "OK" to confirm "Y"
Confirm “-nXY”
Press "menu"
Press "menu"
Press "menu"

Midea VRF Series Specifications

General

Compressor Type	Inverter Scroll Compressor
Type	Variable Refrigerant Flow (VRF)
Refrigerant	R410A
Control	Centralized control, individual control
Indoor Unit Types	Wall mounted, cassette, ducted, floor standing
Energy Efficiency	High energy efficiency with DC inverter technology
Indoor Unit Noise Level	19 dB(A) to 45 dB(A)
