SECTION VI
PARTS LIST
M11 / M11D
Always Specify Model & Serial Number
N.L.A. Denotes "No Longer Available"
Page 6-20
© Midmark Corporation 2002 SF-1827 Rev. 2/11 Printed in U.S.A.

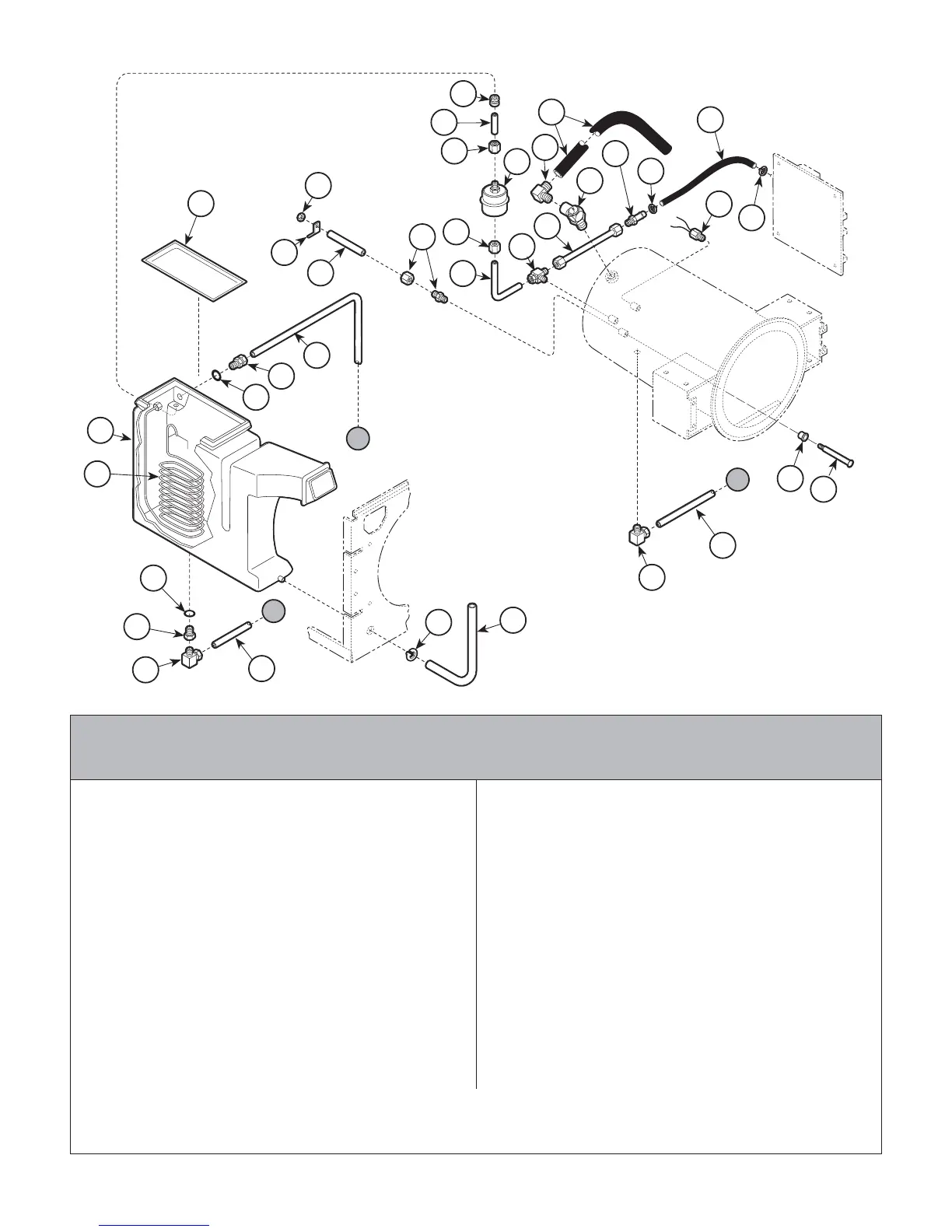

Plumbing & Sensor Components
Item Part No. Description Qty.
Item Part No. Description Qty.
1 053-0580-00 Condensing Tank (Includes Item 15) ..... 1
2 H98137 Gasket .................................................. 1
3 014-0216-00 Bulkhead Union ..................................... 1
014-0392-00 Compression Nut Only ........................ AR
4 014-0251-00 Tube (M11) ........................................... 1
014-0279-00 Tube (M11D) .......................................... 1
5 016-0748-01 Nylon Hose Clamp ................................ 1
6 052-0173-00 Condensing Coil .................................... 1
7 053-0391-01 Hose ..................................................... 1
8 002-0358-00 Level Sensor Tube (Includes items
9,10,16,30,31) ....................................... 1
9 015-0595-00 Terminal ................................................ 1
10 041-0006-02 Locknut ................................................. 1
11 053-0393-00 O-ring ................................................... 1
12 014-0209-00 Bulkhead Couple ................................... 1
13 014-0184-01 Male Elbow ............................................ 1
14 014-0255-00 Tube ..................................................... 1
15
(N.L.A.) Condensing Tank Lid (See Item #1) ...... 1
16 014-0212-00 Connector ............................................. 1
17 014-0252-00 Tube ..................................................... 1
18 002-0375-00 Bellows Assembly ................................. 1
19 014-0392-00 Compression Nut (Refer to Kit [*]) ......... 2
20 014-0208-00 Tube ..................................................... 1
21 053-0394-01 Grommet ............................................... 1
22 014-0202-00 Male Branch Tee ................................... 1
23 014-0207-00 PCB Pres. Sensor Tube (Refer to Kit [*]) 1
24 002-0359-00 Pressure Relief Valve - 35 PSI
(Apply Teflon Tape)
(Includes Elbow, Item 35) ...................... 1
25 053-0613-02 Tube - Pressure Relief .......................... 1
26 015-0013-05 Cable Tie (High Temp) .......................... 2
27 014-0217-00 Compression Connector (Refer to Kit [*]) 1
28 053-0404-02 Tube-PCB Connector (Refer to Kit [*]) ... 1
29 002-0357-00 Temperature Probe Assembly
(Apply Teflon Tape) ............................... 1
30 053-0407-00 Spacer .................................................. 1
31 030-0858-00 Level Sensor Assembly ......................... 1
32 014-0250-00 Tube ..................................................... 1
33 014-0258-00 Male 90° Elbow ...................................... 1
34 014-0184-01 Male Elbow ............................................ 1
[*] 002-0593-00 Pressure Sensor Tube Kit (Includes #'s
19, 23, 26, 27, & 28)
MA201915
Used on units with Serial Numbers:
ES1000 thru ES4300 ET1000 thru ET5399 FP1000 thru FP1072 FR1000 thru FR1177
GB1000 thru GB1094 GC1000 thru GC1035 GD1000 thru GD1049
C
8
9
10
16
17
21
22
26
29
31
A
B
1
2
3
4
5
7
11
12
13
14
15
6
34
33
32
30
28
27
26
25
24
23
20
19
19
18
