SECTION VI
PARTS LIST
M11 / M11D
Page 6-21
© Midmark Corporation 2002 SF-1827 Rev.10/09 Printed in U.S.A.

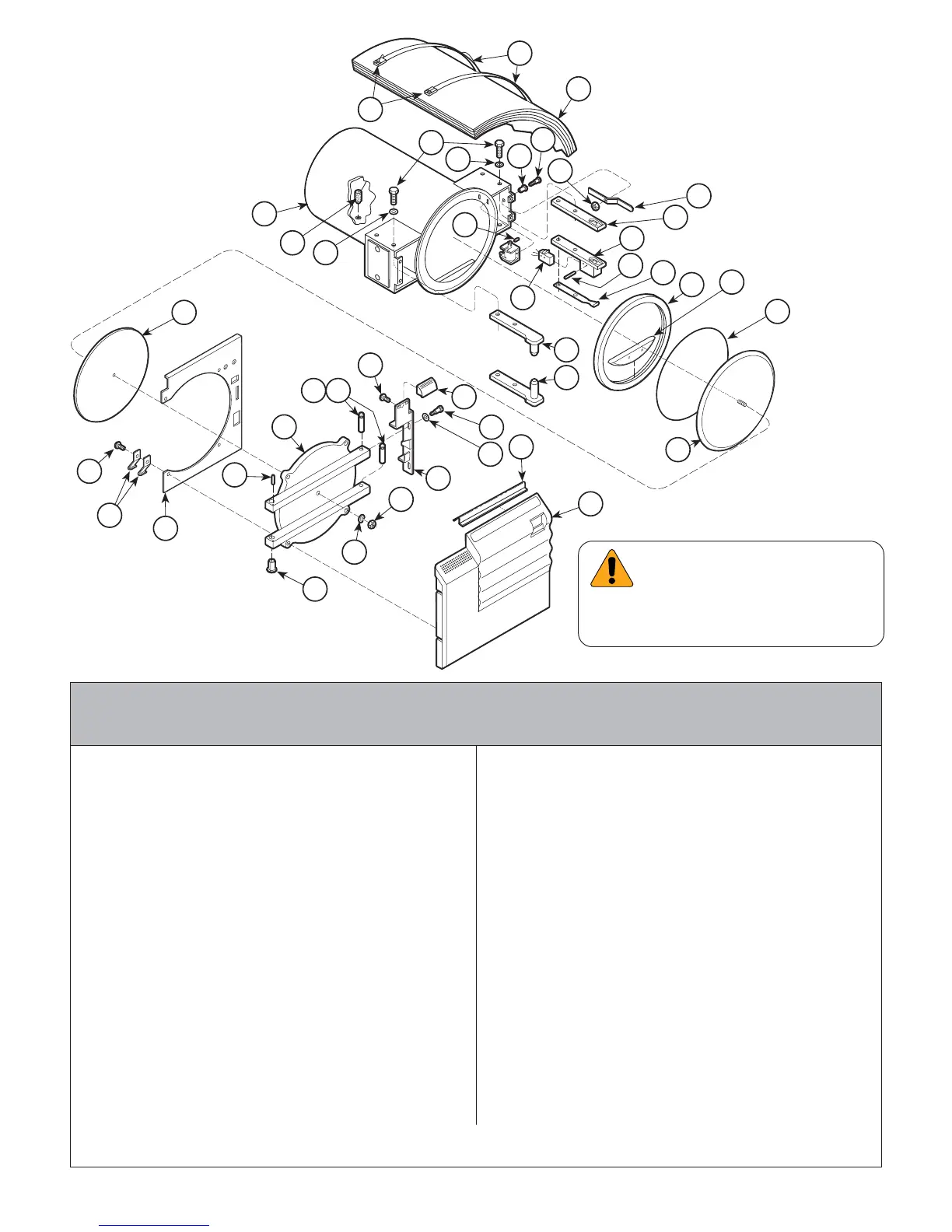

Pressure Vessel
Components
Always Specify Model & Serial Number
N.L.A. Denotes "No Longer Available
Item Part No. Description Qty.Item Part No. Description Qty.
1 Chamber ............................................... 1
2 Screw ................................................... 8
3 Washer ................................................ 12
4 Right Bracket ........................................ 1
5 Switch Bracket Weldment ...................... 1
6 002-0504-00 Door Gasket Kit (Includes item 7) ........ 1
• 053-0527-00 • Door Gasket ....................................... 1
• 053-0784-00 • Dam Gasket ....................................... 1
7 002-0508-00 Dam Gasket Kit .................................... 1
• 053-0784-00 • Dam Gasket ....................................... 1
8 030-0879-00 Gasket Housing Weldment .................... 1
9 Top Bracket .......................................... 1
10 Bottom Bracket ..................................... 1
11 016-0395-02 Door Insulation Pad ............................... 1
12 042-0104-00 Roll Pin .................................................. 1
13 Door ...................................................... 1
14 Door Bolt ............................................... 2
15 042-0106-00 Shoulder Screw ..................................... 2
16 050-4183-00 Latch ..................................................... 1
17 041-0000-00 Nut ........................................................ 1
18 045-0000-00 Lockwasher .......................................... 1
19 Flange Bearing ...................................... 2
20 H99387 Aluminum Seal ....................................... 2
21 H99388-44 Insulation Strap ..................................... 2
22
(N.L.A.)
Insulation Wrapper ................................ 1
23 016-0131-18 Flanged Bearing (Not used on M11D) .... 1
24 042-0106-00 Shoulder Screw (Not used on M11D) ......
[Apply Valve Lubricant #064-0002-00] .. 1
25 053-0630-01 Steam Block .......................................... 1
26 050-5192-00 Latch Lever (Not used on M11D) .......... 1
27 042-0001-23 Roll Pin .................................................. 2
28 050-5245-00 Spring Arm ............................................ 1
29 002-0362-00 Door Switch (Includes Item 27) ............. 1
30 042-0001-09 Roll Pin (Not used on M11D) ................. 1
31 040-0008-87 Screw ................................................... 4
32 050-3969-00 Inside Door Cover ................................. 1
33 040-0010-75 Screw ................................................... 2
34 053-0909-00 Door Handle .......................................... 1
35 002-0506-00 Ritter M11 Door Panel (Incl. Decal) ...... 1
002-0506-01 Midmark M11 Door Panel (Incl. Decal) . 1
002-0506-04 EMS M11 Door Panel .......................... 1
36 002-0360-00 Filter ...................................................... 1
37 050-2347-00 Door Spring ........................................... 2
38 041-0010-00 Nut ........................................................ 1
39 045-0000-04 Washer ................................................. 2
40 064-0014-00 Grease ................................................ AR
41 057-0790-00 Gasket Ring (Incl. in 002-0504-00 Kit) .... 1
MA202016
ES1000 thru ES4879 ET1000 thru ET6315 FP1000 thru FP1073
FR1000 thru FR1412 GB1000 thru GB1109
Used on units with Serial Numbers:
40
40
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
3
WARNING
Do not attempt to adjust,
modify, or alter in any manner, any part
of the pressure vessel. Serious injury
and/or damage to the unit could result.
