Midmark M9 - Main Enclosure Components

SECTION VI
PARTS LIST
M9 / M9D
Page 6-4

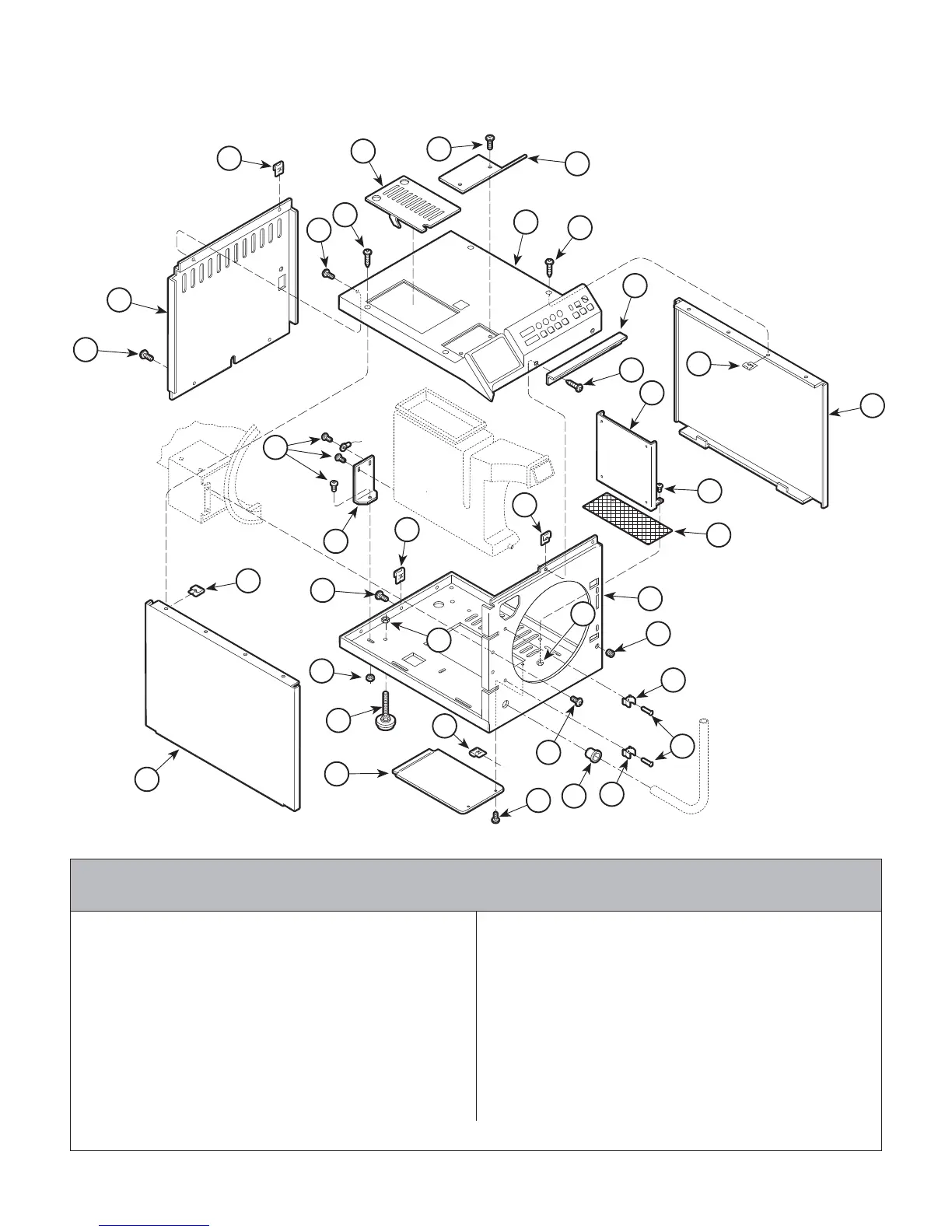

Main Enclosure Components
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.
1 030-0765-10 Top Inspection Cover ............................ 1
2 050-1775-10 Cover Plate - Printer .............................. 1
3 040-0008-37 Screw ................................................... 2
4 040-0010-88 Screw ................................................... 4
5 002-0356-00 Top Cover ............................................. 1
6 050-2034-00 Top Cover Steam Block ........................ 1
7 050-1767-10 Side Panel ............................................. 2
8 H352623 Tinnerman Clip .................................... 12
9 040-0010-95 Screw ................................................... 2
10 050-1777-00 Control PCB Bracket ............................. 1
11 040-0010-75 Screw ................................................... 5
12 016-0428-01 Screen .................................................. 1
13 050-2346-00 Base ..................................................... 1
14 040-0010-18 Screw ................................................. 11
15 041-0010-04 Nut - w/Starwasher ............................... 3
16 053-0394-01 Grommet (Early Units Only) .................. 1
17 050-4326-01 Base Inspection Cover .......................... 1
18 016-0404-00 Leveler Foot .......................................... 4
19 050-1778-00 Bracket ................................................. 1
20 050-1766-10 Back Panel ............................................ 1
21 041-0312-05 Lock Nut ............................................... 4
22 053-0388-01 Hose Clip .............................................. 2
23 042-0010-11 Pop Rivet .............................................. 2
24 053-0068-11 Strain Relief Bushing ............................. 1
Used on units with Serial Numbers:
CZ1000 thru CZ1456 OM1000 thru OM3287
MA225400
© Midmark Corporation 2002 SF-1827 (Rev.4/10) Printed in U.S.A.
7
8
11
12
14
15
18
17
8
22
24
15
19
8
14
21
8
14
20
7
13
16
22
23
11
6
9
10
8
4
5
4
14
2
3
1
8
14
