SECTION I
GENERAL INFORMATION
SECTION I
GENERAL INFORMATION
Description Data
M11 / M11D Dimensions:
Front Height (A, Figure 1-2) .............. 17.7 in (44.9 cm)
(printer adds approx. 0.5 in)
Width (B)........................................... 17.6 in (44.8 cm)
Depth (C) .......................................... 22.4 in (56.8 cm)
Back Height (D) ............................... 15.25 in (38.7 cm)
Chamber Diameter ...............................11 in. (27.9 cm)
Chamber Depth .................................... 18 in. (45.7 cm)
Shipping Carton ...................... 23 in x 27.5 in x 21.5 in
(58.4 cm x 69.8 cm x 54.6 cm)
Weight:
Reservoir Empty ................................... 96 lb (43.5 kg)
Reservoir Full ......................................... 106 lb (48 kg)
With Shipping Carton ............................. 128 lb (58 kg)
Water Reservoir Capacity ............... Approx. 1.25 gallon
(4.7 Liters) to full mark
1.1 Model / Serial Number Location
© Midmark Corporation 2002 SF-1827 Page 1-1 Printed in U.S.A.
MA2071-01
MODEL NUMBER
SERIAL NUMBER

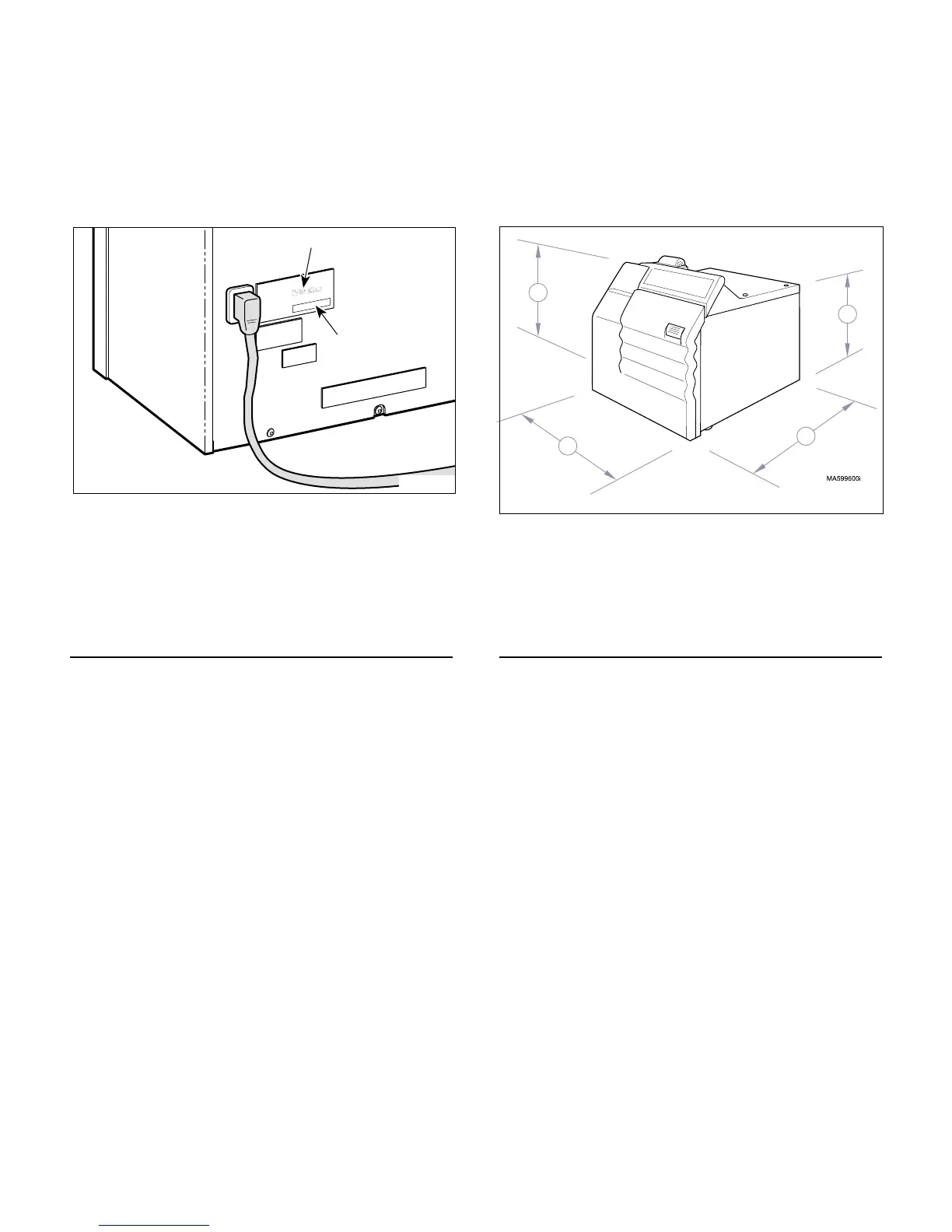

Figure 1-1. Model / Serial Number Location
1.2 Specifications
Table 1-1. Specifications
Description Data
M9 / M9D Dimensions:
Front Height (A, Figure 1-2) .............. 16.4 in (41.8 cm)
(printer adds approx. 0.5 in)
Width (B).............................................. 15 in (38.1 cm)
Depth (C) .......................................... 18.1 in (47.8 cm)
Back Height (D) ............................... 13.75 in (34.9 cm)
Chamber Diameter .................................9 in. (22.8 cm)
Chamber Depth .................................... 15 in. (38.1 cm)
Shipping Carton ....................... 22 in x 17.75 in x 18 in
(56 cm x 45 cm x 46 cm)
Weight:
Reservoir Empty ...................................... 70 lb (32 kg)
Reservoir Full ........................................... 77 lb (35 kg)
With Shipping Carton ............................... 78 lb (36 kg)
Water Reservoir Capacity ................ Approx. 7/8 gallon
(3.31 Liters to full mark)
Figure 1-2. Dimensions
B
A
C
D
